Body Harness Routing - Left Rear of Passenger Compartment

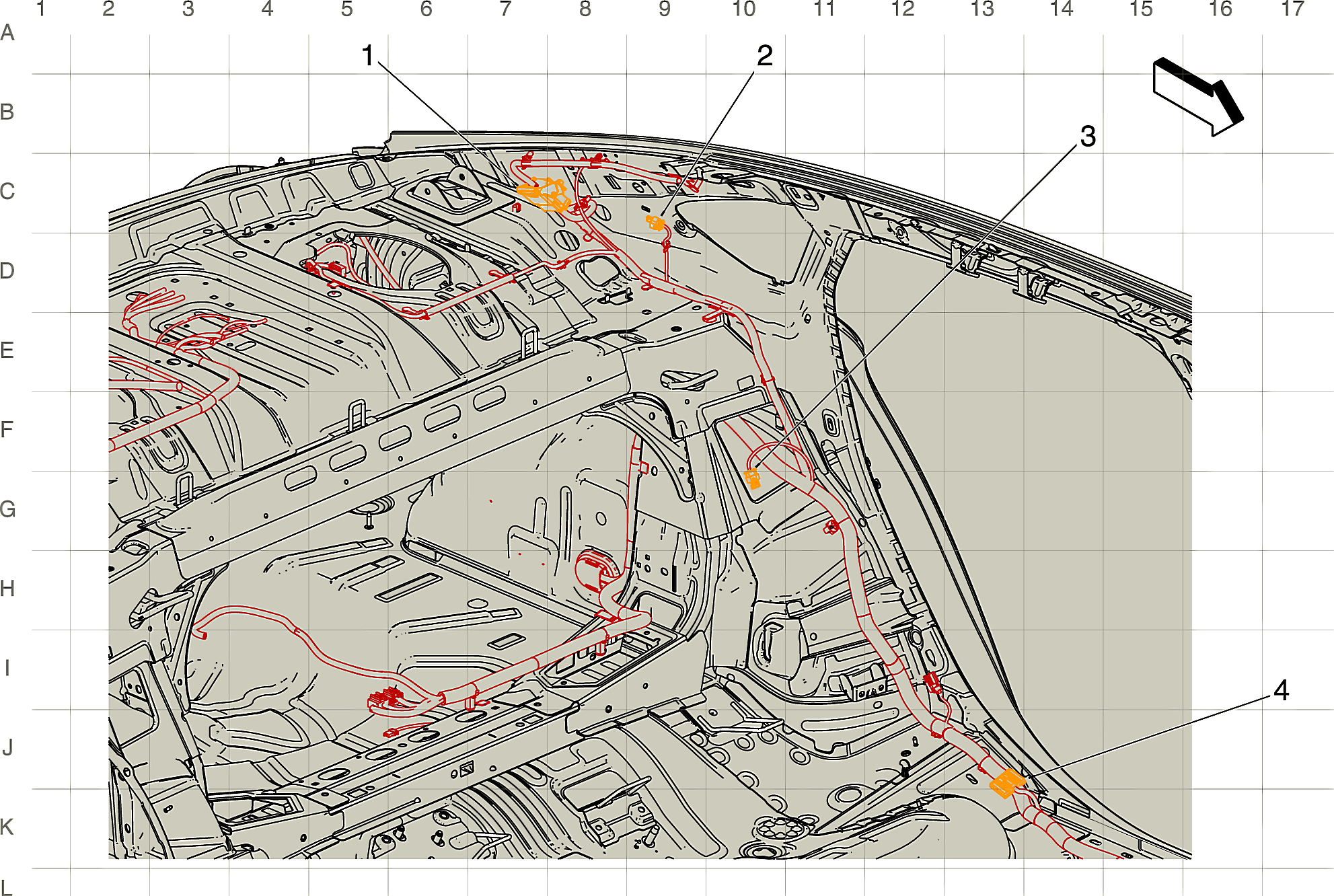

GM4163811Courtesy of GENERAL MOTORS COMPANY
Items
1. X400 Headliner Harness to Body Harness (40 Cavities) X400 Headliner Harness to Body Harness
2. X330 Body Harness to Left Roof Rail Airbag Harness (2 Cavities) X330 Body Harness to Left Roof Rail Airbag Harness
3. X370 Body Harness to Left Rear Seat Side Airbag Harness (3 Cavities) X370 Body Harness to Left Rear Seat Side Airbag Harness
4. JX300 Body Harness JX300 Splice Pack
