Body Harness Routing - Front of Passenger Compartment above Windshield

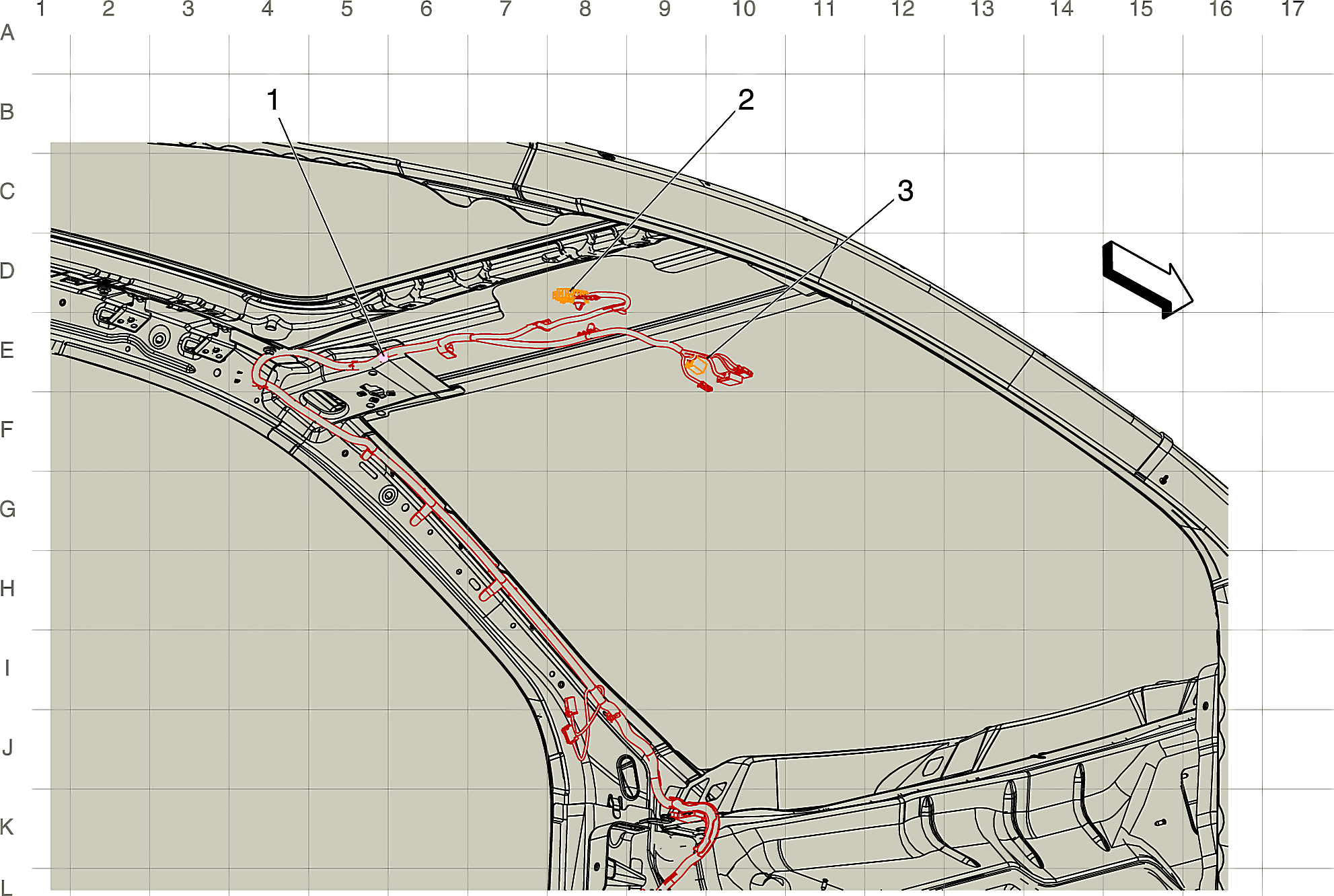

GM4009598Courtesy of GENERAL MOTORS COMPANY
Items
1. J232 Body Harness (C3U)
2. X390 Sunroof Harness to Body Harness (8 Cavities) (C3U) X390 Sunroof Harness to Body Harness (C3U)
3. X200 Rain Sensor Harness to Body Harness (6 Cavities) (ASV) X200 Rain Sensor Harness to Body Harness (ASV)
