Sunroof Components (C3U)

GM2913037

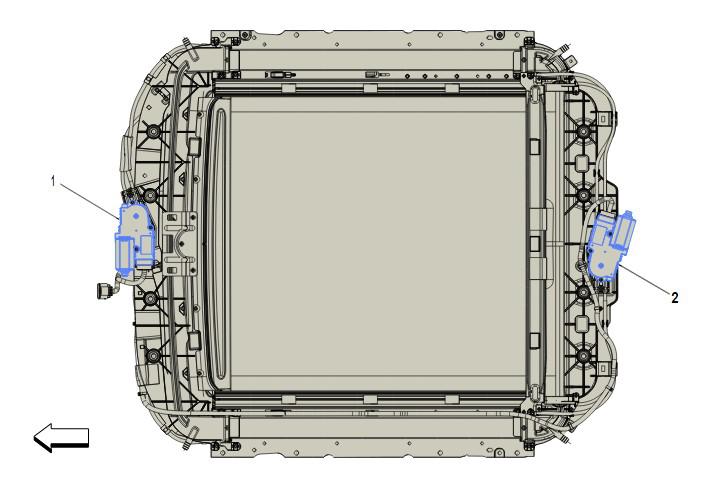

Sunroof Components (C3U)

Items
1 M69 Sunroof Motor (C3U) M69 Sunroof Motor (C3U)
2 K62 Sunroof Sunshade Motor Module (C3U) K62 Sunroof Sunshade Motor Module (C3U)
