Left Side of Passenger Compartment Components

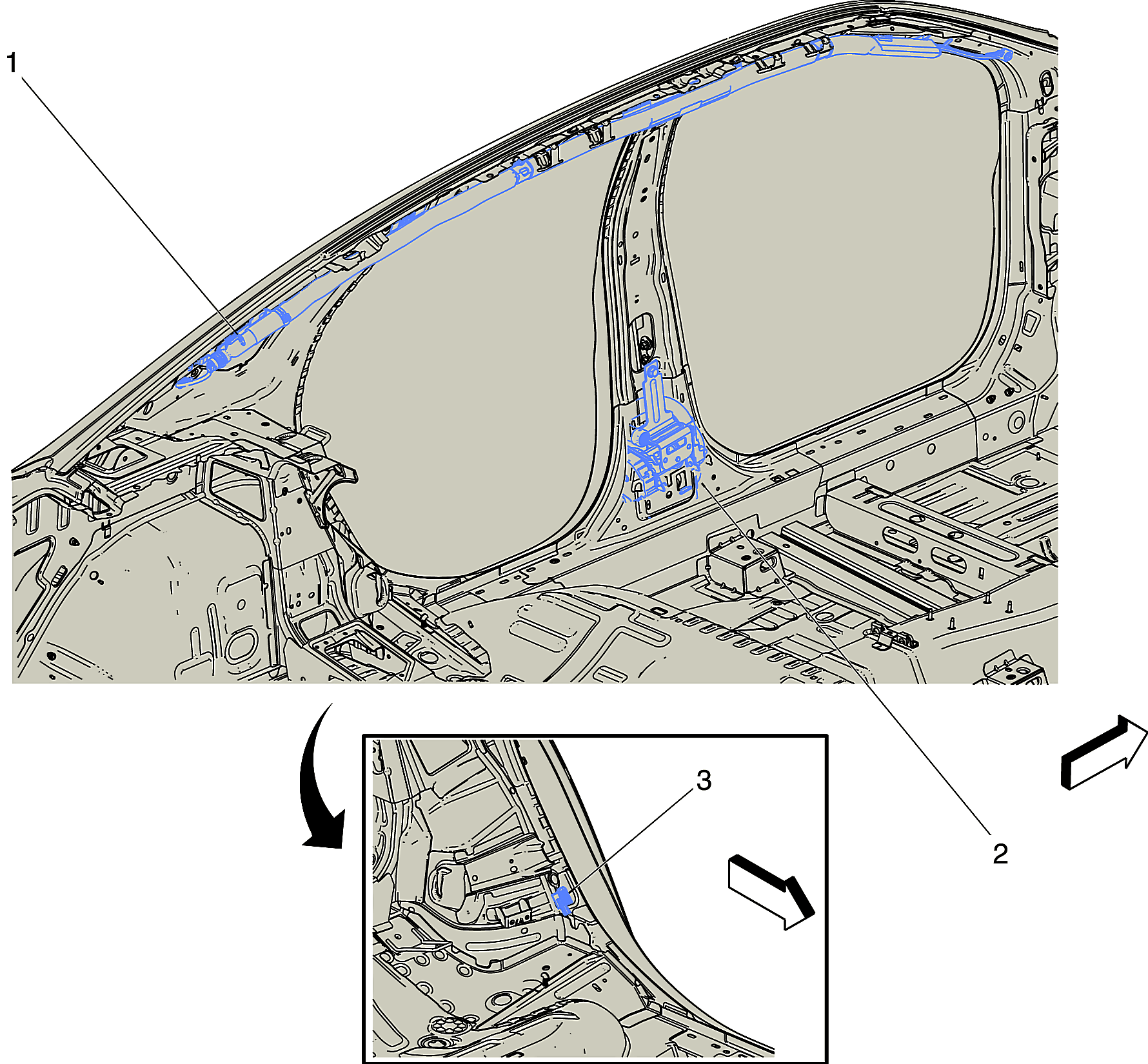

GM2913038
Left Side of Passenger Compartment Components

Items
1 F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
2 F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver (MAH/MBC)F112D Seat Belt Retractor Pretensioner - Driver (MAM/MBI/MAW)
3 B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear
