Left Side of Luggage Compartment Components

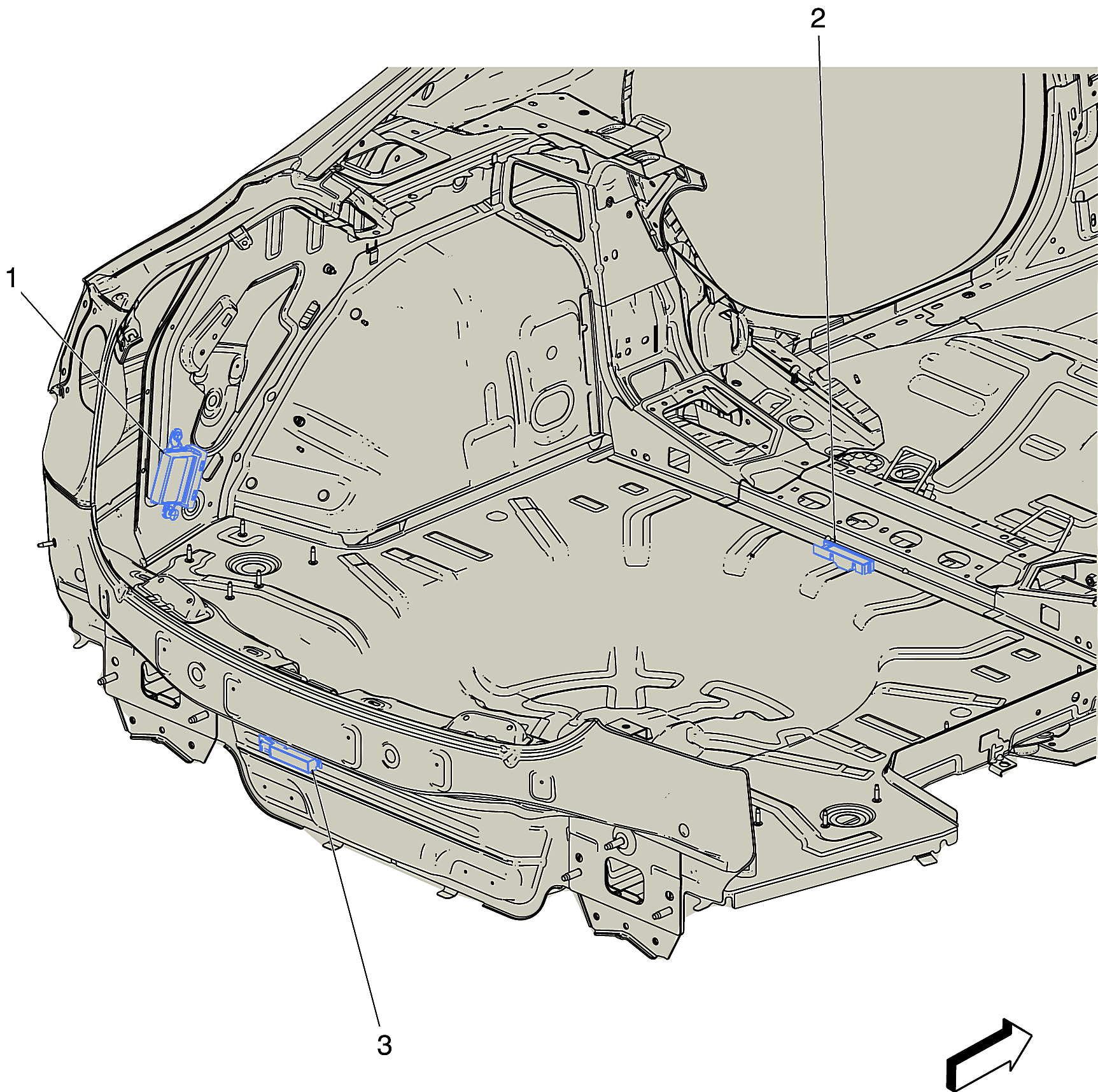

GM4455250
Left Side of Luggage Compartment Components

Items
1 K182 Parking Assist Control Module K182 Parking Assist Control Module X1K182 Parking Assist Control Module X2
2 T10E Keyless Entry Antenna - Rear Compartment (BTM) T10E Keyless Entry Antenna - Rear Compartment (BTM)
3 T10G Keyless Entry Antenna - Rear Fascia (ATH) T10G Keyless Entry Antenna - Rear Fascia (BTM)
