G101, G103, G104, G106 and G110

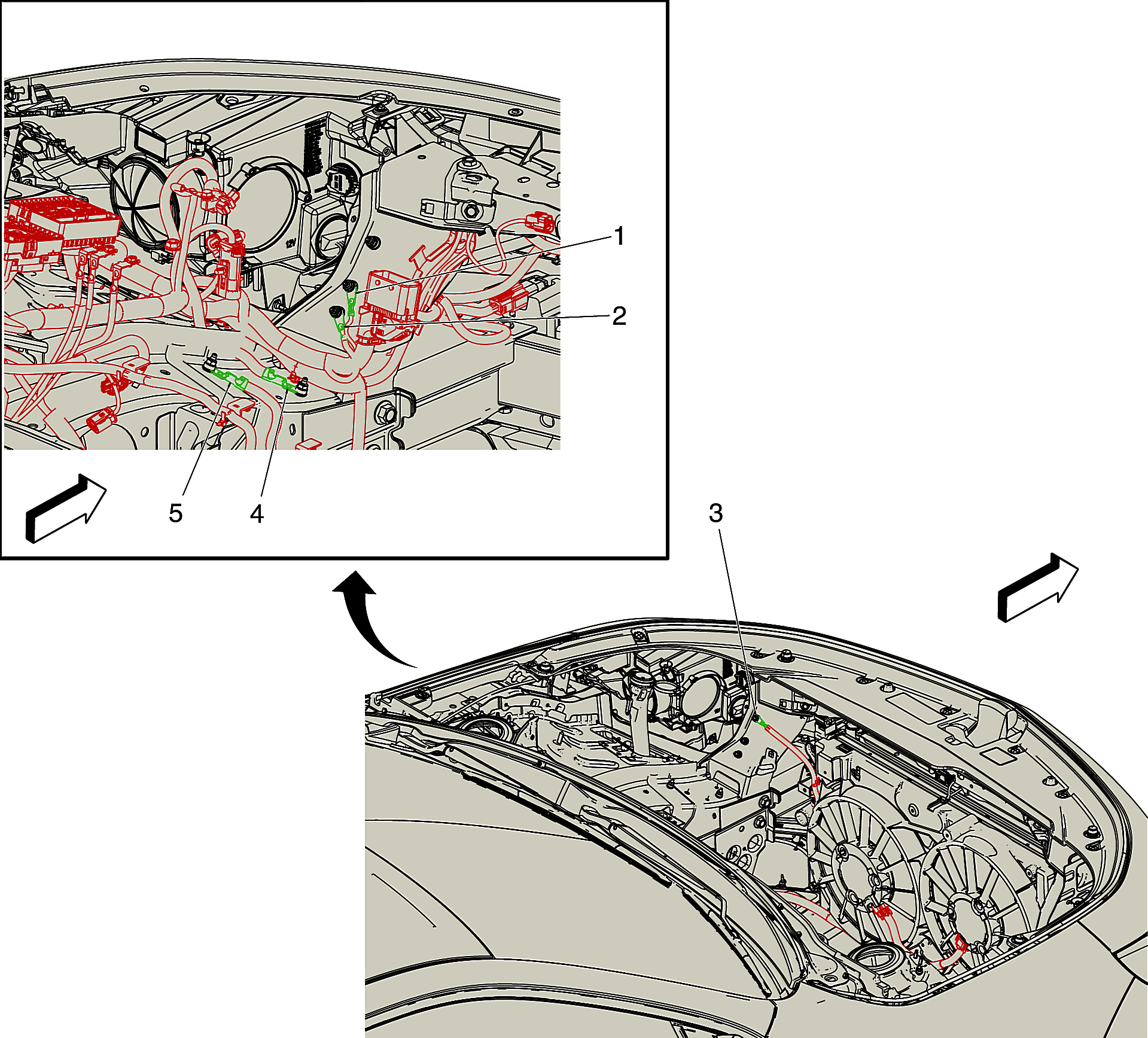

GM4853808
G101, G103, G104, G106 and G110

Items
1 G101 Forward Lamp Harness
2 G110 Forward Lamp Harness
3 G106 Cooling Fan Harness
4 G103 Battery Negative Harness (LFX or LCV)
5 G104 Starter-Generator-Ground Harness
