Front Wheel Drive Intermediate Shaft Replacement (LCV with MHG)

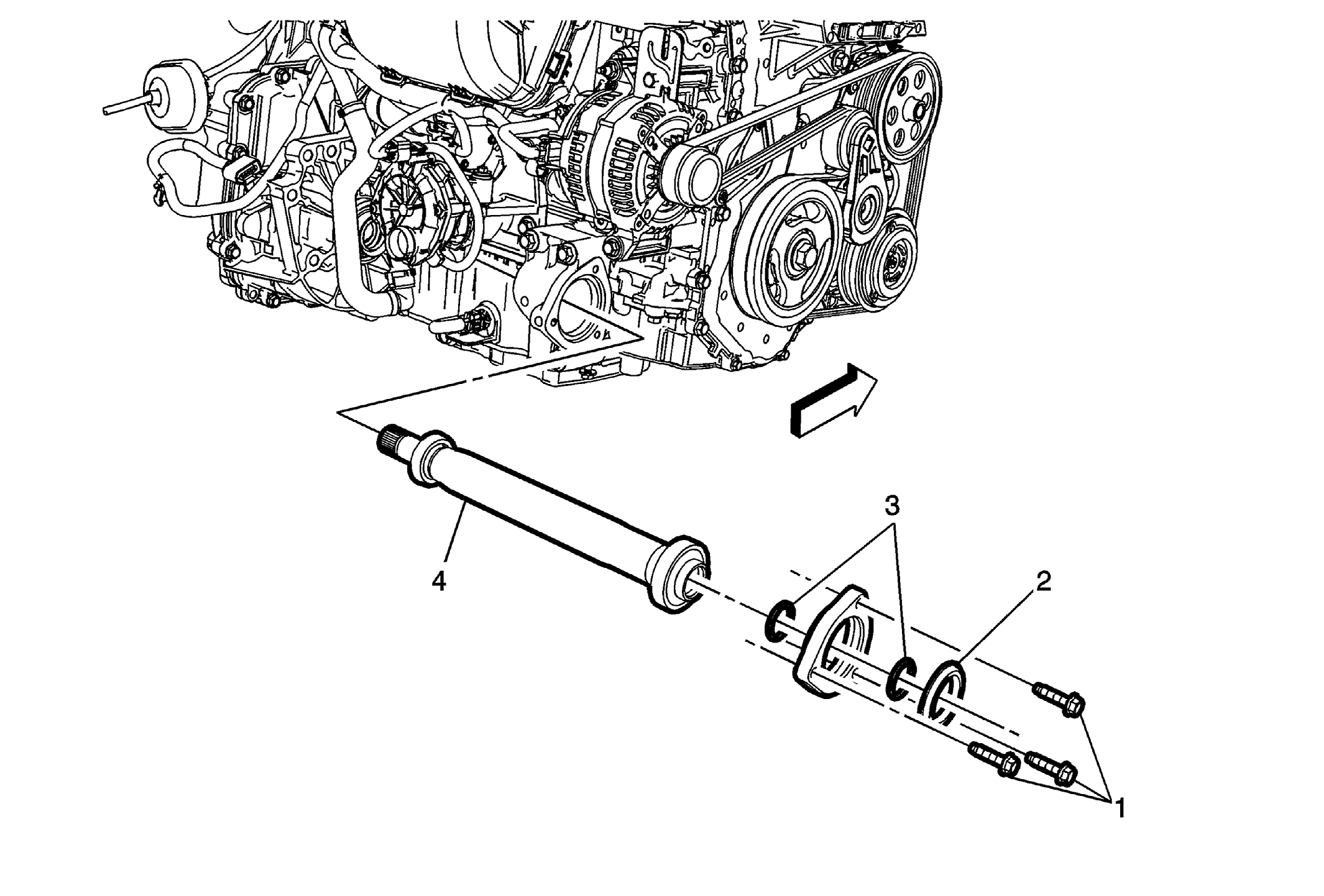

Callout	Component Name
Preliminary Procedure Remove the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .
1	Front Wheel Drive Intermediate Shaft Flange Bolt (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 22 N.m (16 lb ft)
