Body Side Rear Window Garnish Molding Replacement

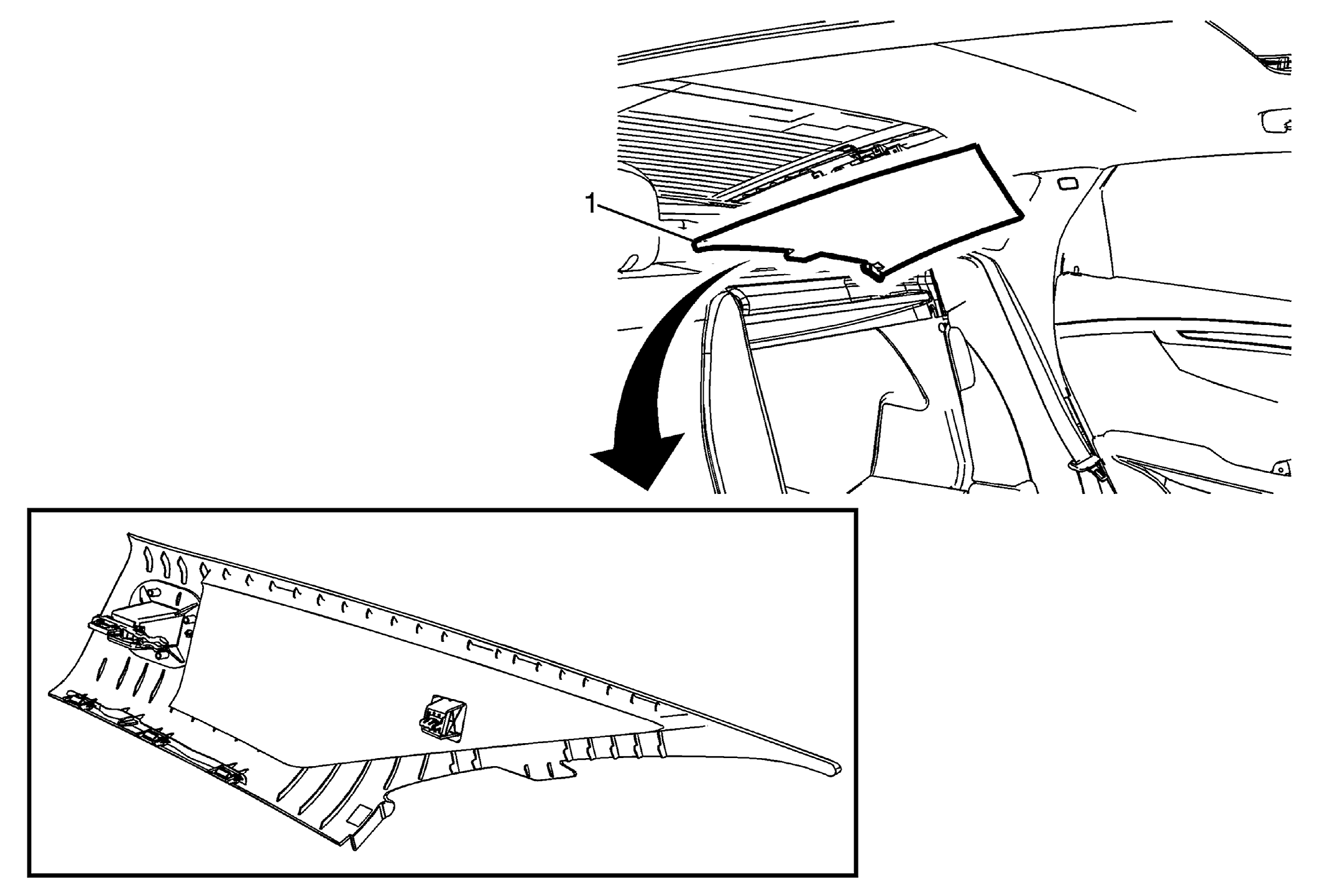

GM2964062
Callout Component Name
Preliminary Procedure
Remove the rear seat belt guide trim cover. Refer to Rear Seat Belt Guide Trim Cover Replacement .
1 Body Side Rear Window Garnish Molding Assembly

Procedure

  1. The tether clip at the upper portion of the garnish molding MUST be replaced every time the body side rear window garnish molding is removed.
  2. Pull outward from the lower front to release the lower portion of the molding, then move upward to release the tabs.
  3. Release the tether to remove.
