Fuel Tank Filler Pipe Housing Replacement

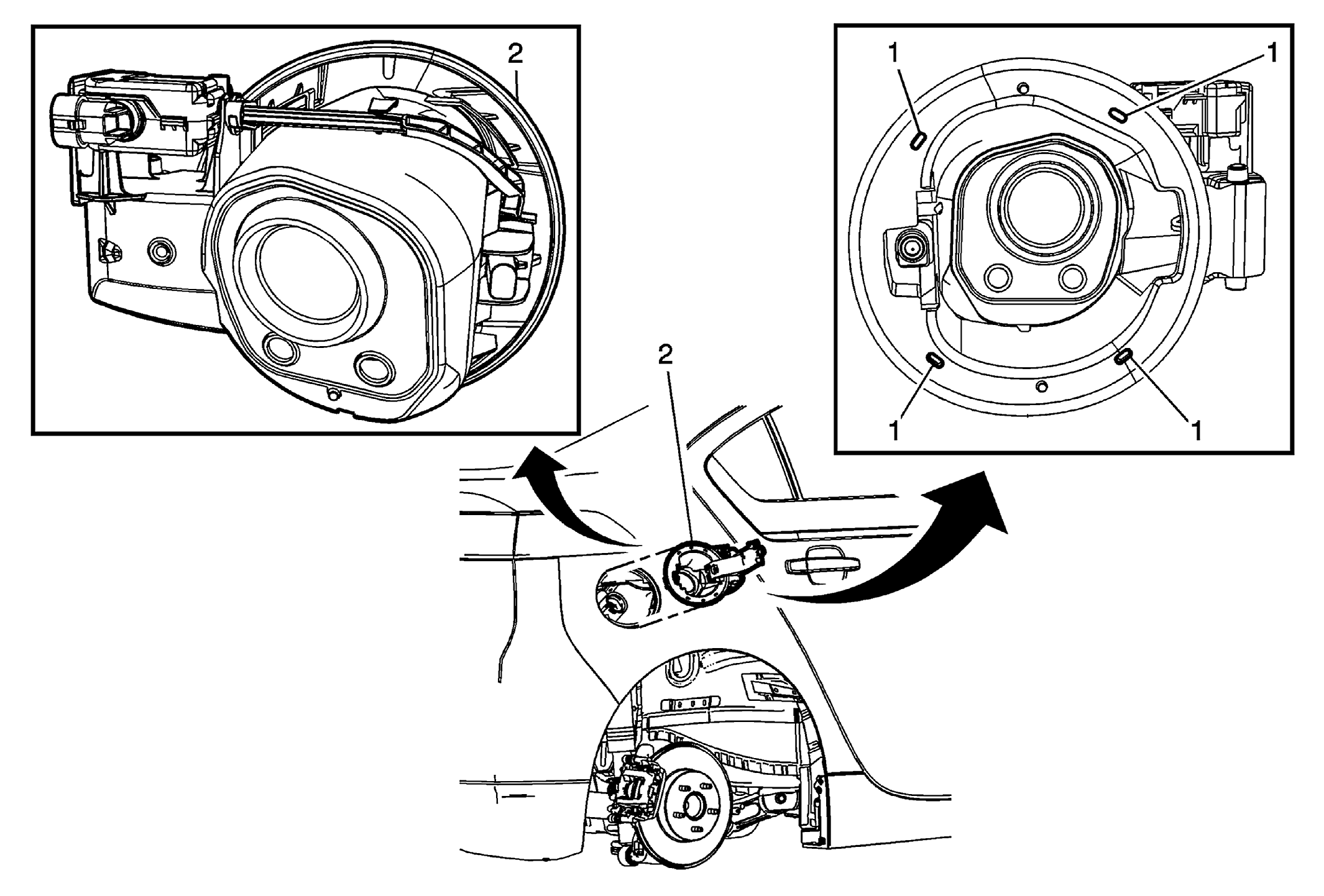

GM2393784
Callout Component Name

Preliminary Procedures

  1. Fuel Tank Filler Door Replacement
  2. Loosen the lower filler pipe bolt and remove the upper filler pipe bolt. Fuel Tank Filler Pipe Replacement (LFX)
1 Fuel Tank Filler Pipe Housing Retainer[4x]
Procedure
Using a flat-bladed tool, release the fuel tank filler pipe housing retainers through the wheelhouse opening.
2 Fuel Tank Filler Pipe Housing

Procedure

  1. Disconnect the data link connector.
  2. Ensure the fuel filler door locking rod is in the lock position while removing the housing.
