Rear Side Door Weatherstrip Replacement - Door Side

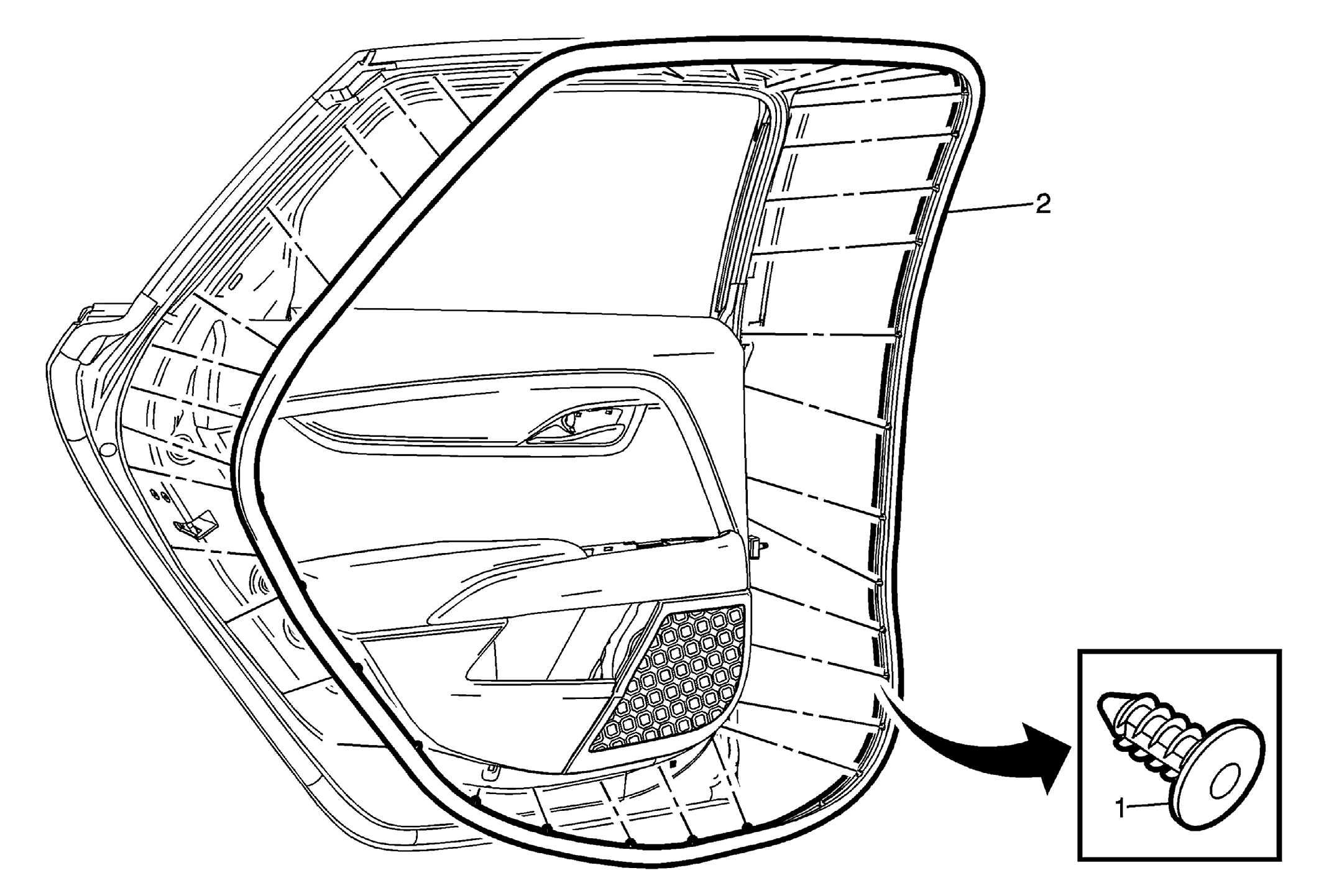

Callout	Component Name
1	Rear Side Door Weatherstrip Retainer (Qty: 34) Procedure Open the rear side door fully. Remove the rear side door checklink bolt to the pillar. Refer to Rear Side Door Check Link Replacement . Using a suitable tool, remove the retainers from around the door. After removing the weatherstrip and retainers, clean the inside door edge surface with a 50/50 mixture of isopropyl alcohol and clean water by volume on a dampened lint free cloth.
2	Rear Side Door Weatherstrip Procedure Use a suitable tool, fit the door weatherstrip into the door top retainer. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replace.

Callout

Component Name

Rear Side Door Weatherstrip Retainer (Qty: 34)

Procedure

Open the rear side door fully.
Remove the rear side door checklink bolt to the pillar. Refer to Rear Side Door Check Link Replacement .
Using a suitable tool, remove the retainers from around the door.
After removing the weatherstrip and retainers, clean the inside door edge surface with a 50/50 mixture of isopropyl alcohol and clean water by volume on a dampened lint free cloth.

Rear Side Door Weatherstrip
Procedure
Use a suitable tool, fit the door weatherstrip into the door top retainer.

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replace.
