Rear Compartment Lid Hinge Bumper Replacement

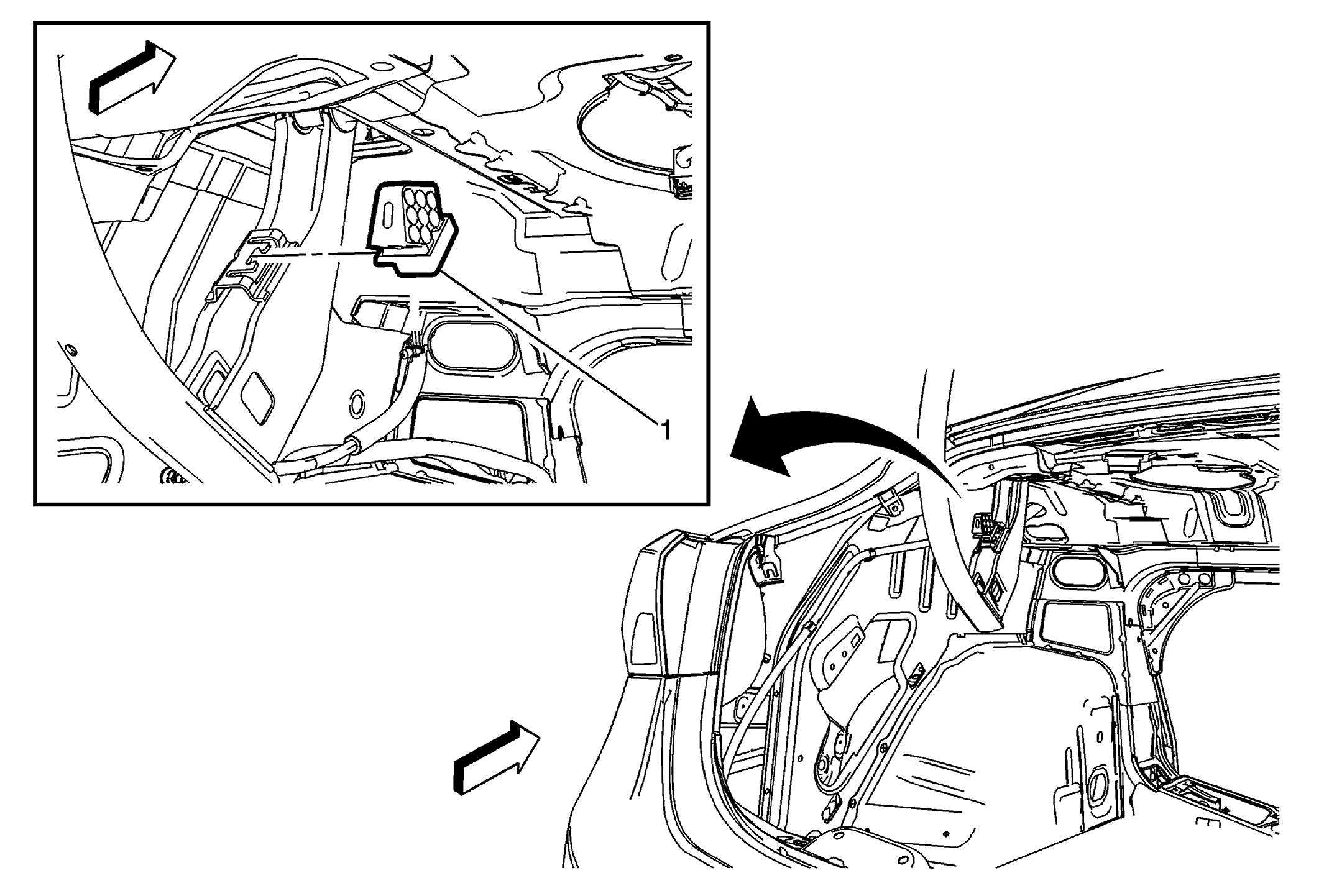

GM2897885
Callout Component Name

Preliminary Procedures

  1. Reposition the left side rear compartment side trim panel enough to gain access to the left side bumper. Refer to Rear Compartment Side Trim Replacement - Left Side .
  2. Reposition the right side rear compartment side trim panel enough to gain access to the right side bumper. Refer to Rear Compartment Side Trim Replacement - Right Side .
1 Rear Compartment Lid Hinge Bumper

Procedure

  1. Using a suitable tool, remove the rear compartment lid hinge bumper from the rear compartment lid bumper hinge bumper bracket.
