Hood Hinge Replacement

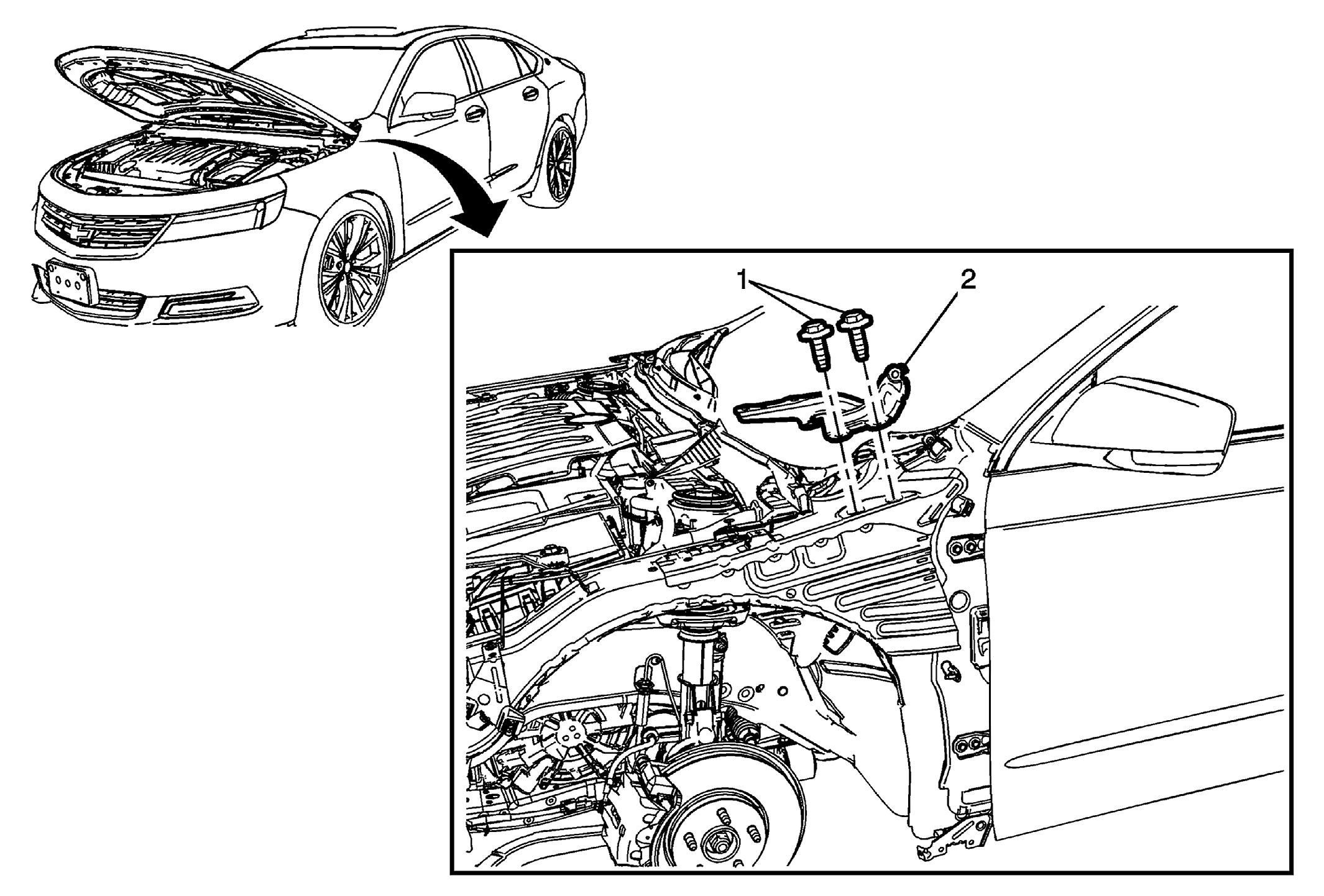

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement .
1	Hood Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Hinge Procedure Adjust the hood and hinge if needed. Refer to Hood Adjustment . NOTE: Fender removed for visual reference only, this procedure does not require fender removal.

Callout

Component Name

Preliminary Procedures

Hood Hinge Bolt (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft)

Hood Hinge
Procedure
Adjust the hood and hinge if needed. Refer to Hood Adjustment .

NOTE:

Fender removed for visual reference only, this procedure does not require fender removal.
