Windshield Wiper Arm Replacement

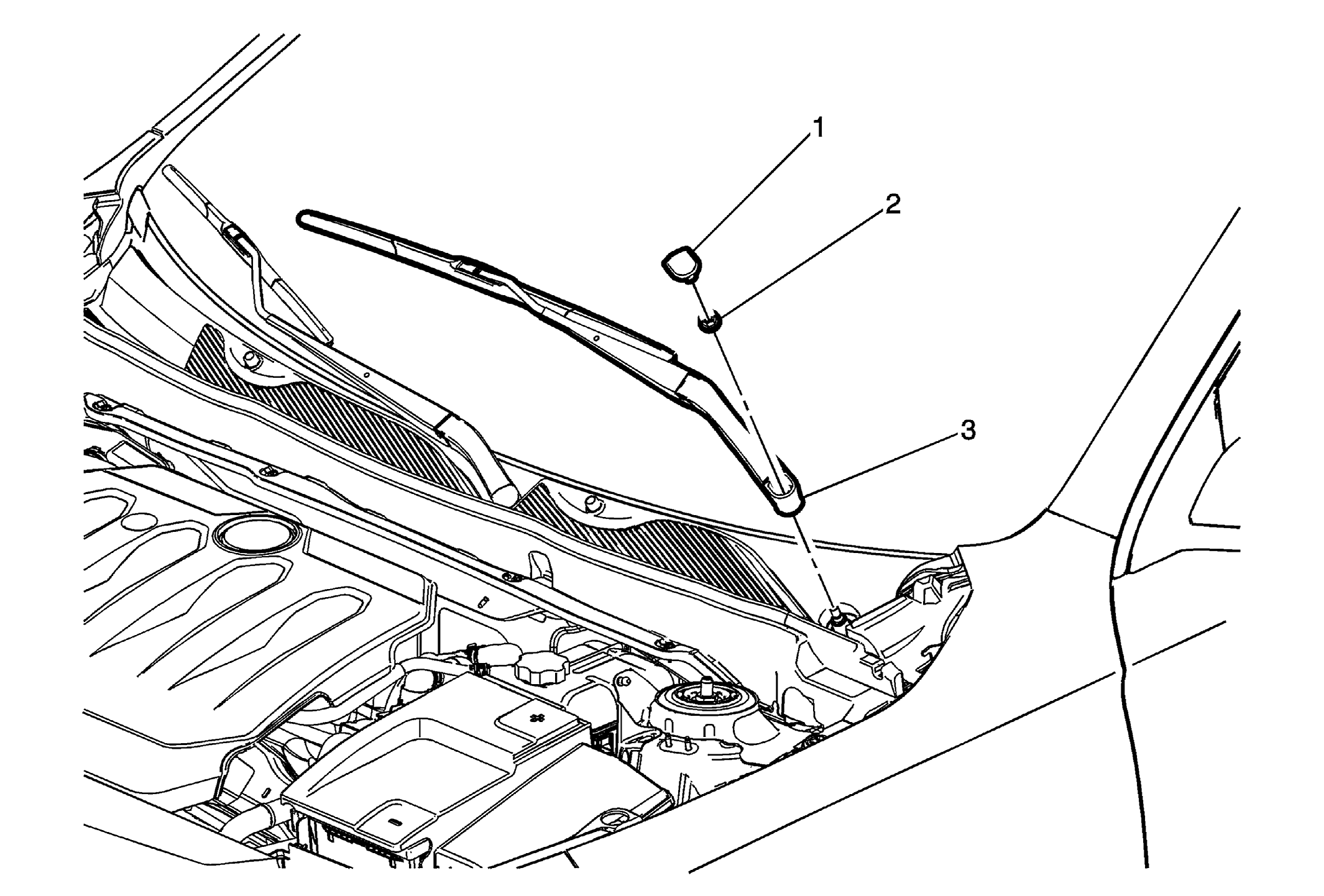

Callout	Component Name
Preliminary Procedure Open and support the hood.
1	Windshield Wiper Arm Nut Cap NOTE: Use a small flat-bladed tool in order to release the finish cap from the wiper arm assembly.
2	Windshield Wiper Arm Nut CAUTION: Refer to Fastener Caution . Tighten 38 N.m(28 lb ft)
3	Windshield Wiper Arm Procedure Grasp the windshield wiper arm near the pivot shaft and gently rock it side to side until the arm releases. Clean the pivot shaft knurls with a soft wire brush before installing a new windshield wiper arm.
