Sun Load Temperature And Headlamp Automatic Control Ambient Light Sensor Replacement (Equinox)

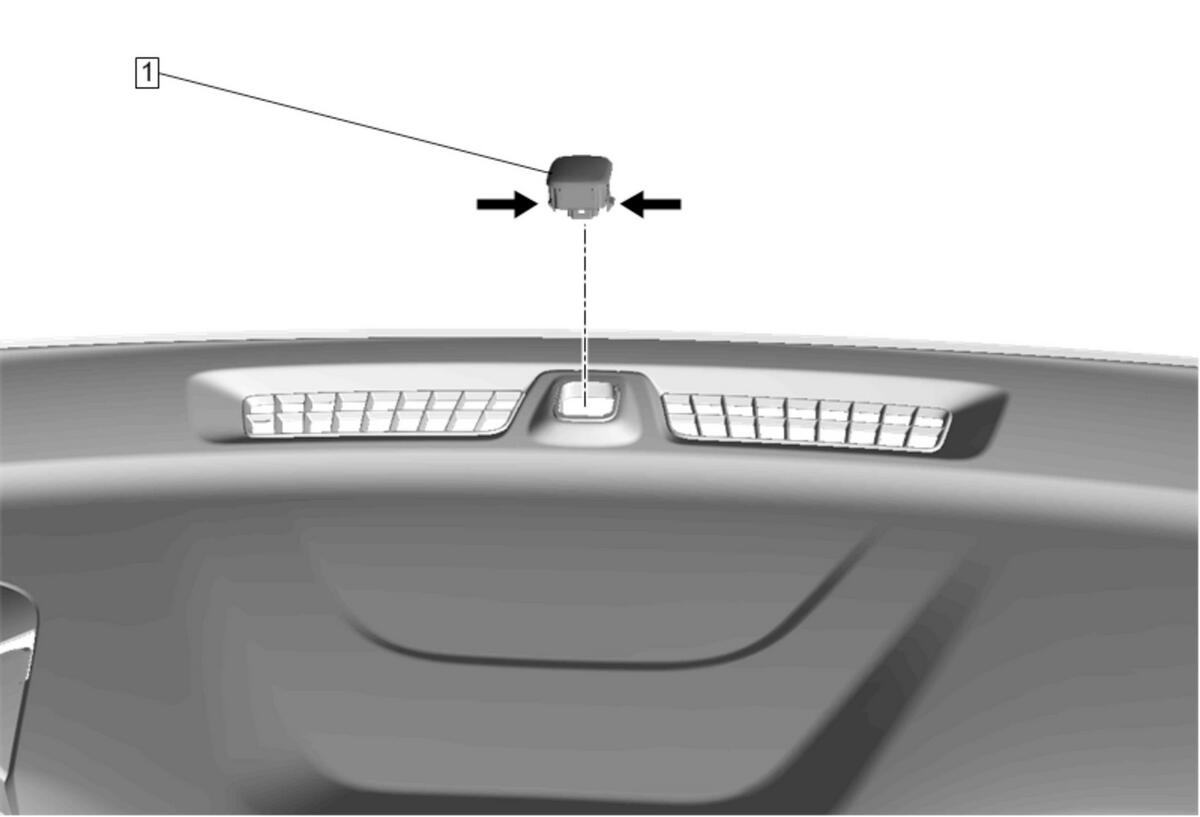

Fig 1: Sun Load Temperature And Headlamp Automatic Control Ambient Light Sensor (Equinox)
GM4589714Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Instrument Panel Upper Trim Panel. Refer to Instrument Panel Upper Trim Panel Replacement (Equinox)
1 Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor

Procedure

  1. Depress the detents indicated by the arrows using the appropriate tool.
  2. Disconnect the electrical connector.
