Turbocharger Bypass Valve Solenoid Replacement

WARNING: This page is about a different variant/trim than selected.

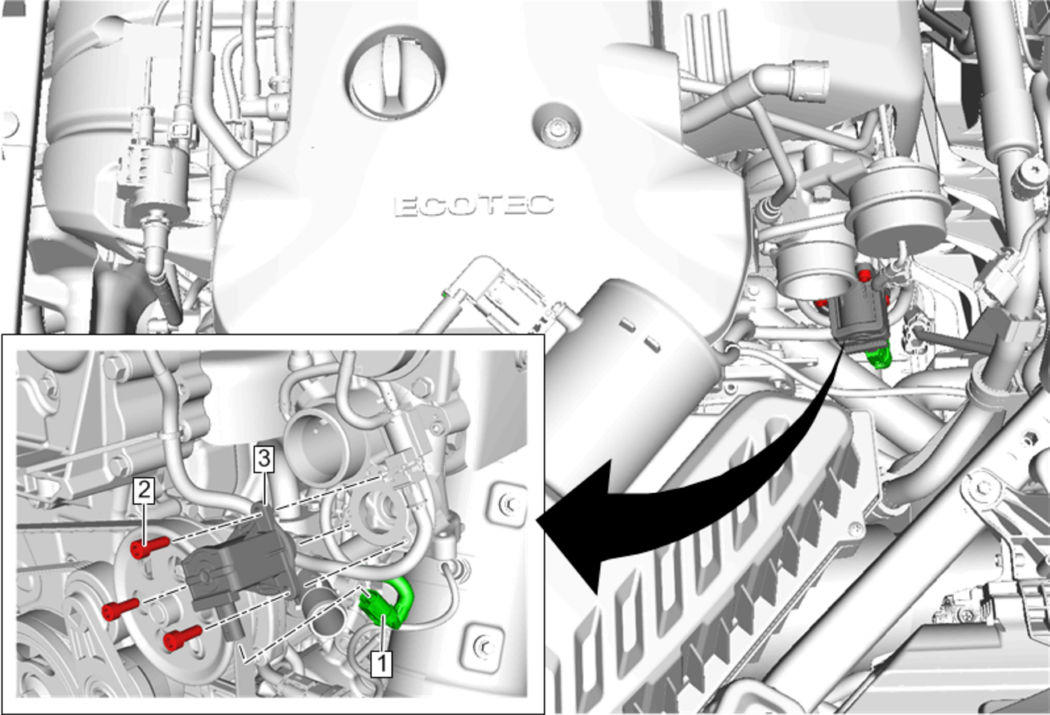

Fig 1: Turbocharger Bypass Valve Solenoid

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement (Non-Tamperproof) Air Cleaner Outlet Duct Replacement (Tamperproof)
1	Electrical Connector
2	Turbocharger Bypass Valve Solenoid Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 7.8 N.m (69 lb in)
3	Turbocharger Bypass Valve Solenoid Procedure The seal is reusable, inspect the seal and replace if damaged. Perform the intake system learned values reset. Intake System Learned Values Reset
