Oil Pump Flow Control Valve Replacement

WARNING: This page is about a different variant/trim than selected.

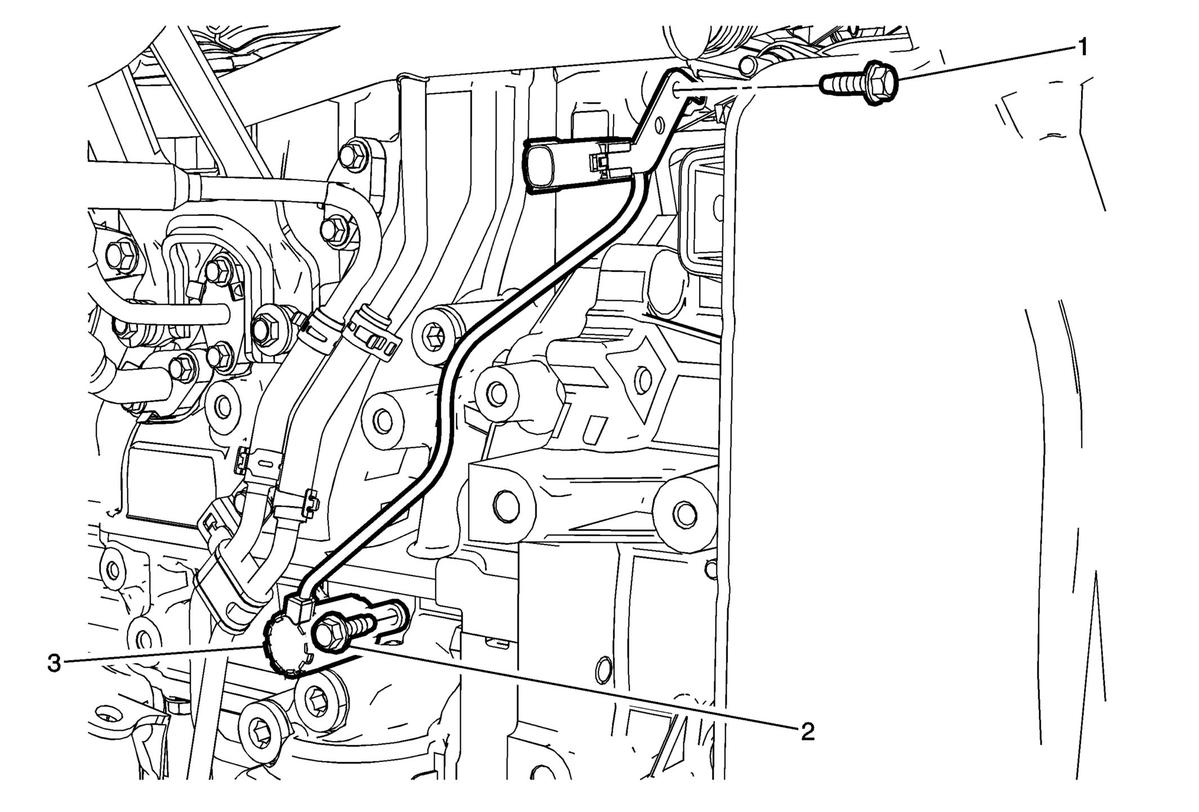

Fig 1: Oil Pump Flow Control Valve (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Warm Up Three-Way Catalytic Converter Replacement (LTG) Oil Pump Flow Control Valve Heat Shield Replacement
1	Oil Pump Flow Control Valve Electrical Wiring Harness Connector Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Oil Pump Flow Control Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Oil Pump Flow Control Valve Procedure Disconnect the electrical wiring harness connector from the oil pump flow control valve.
