Fuel Tank Shield Replacement (FWD)
WARNING: This page is about a different variant/trim than selected.

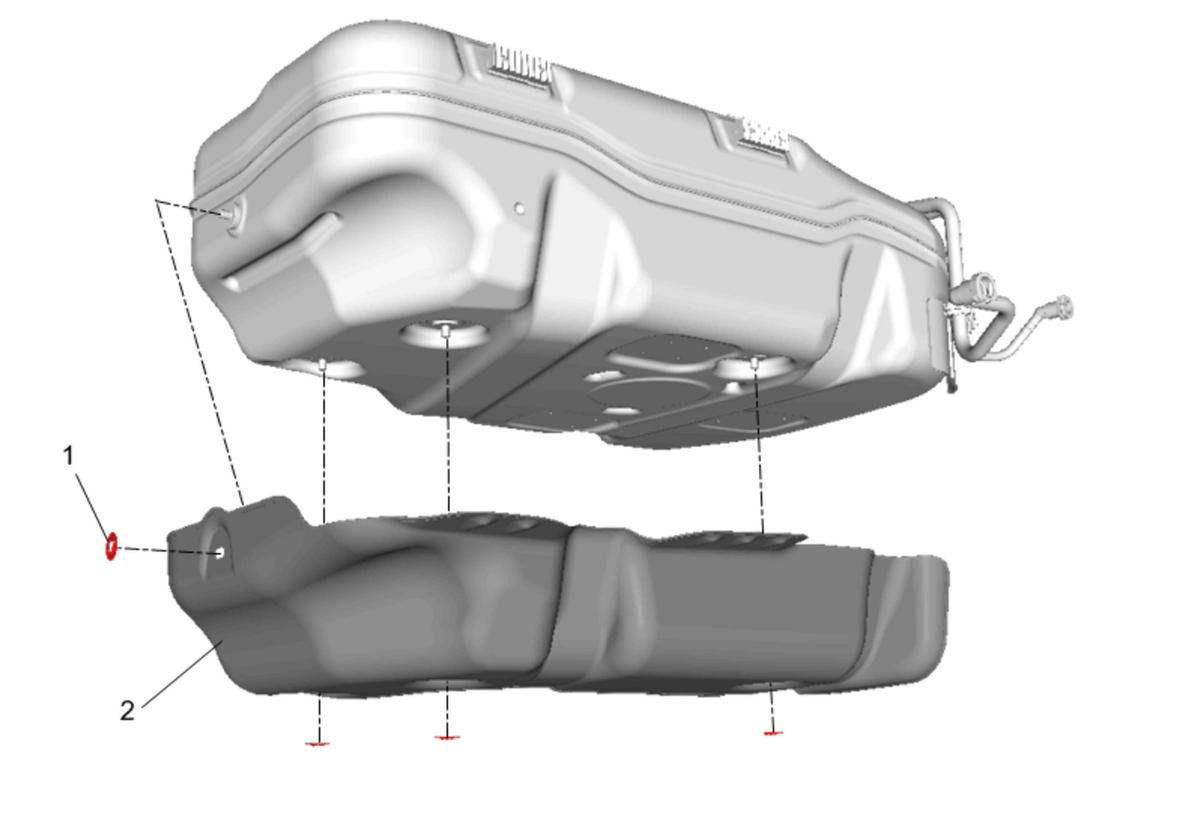

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement (FWD) Refer to Safety Glasses Warning . |
|
| 1 | Fuel Tank Shield Retainer [4x] |
| 2 | Fuel Tank Shield |
