Fuel Tank Filler Hose Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

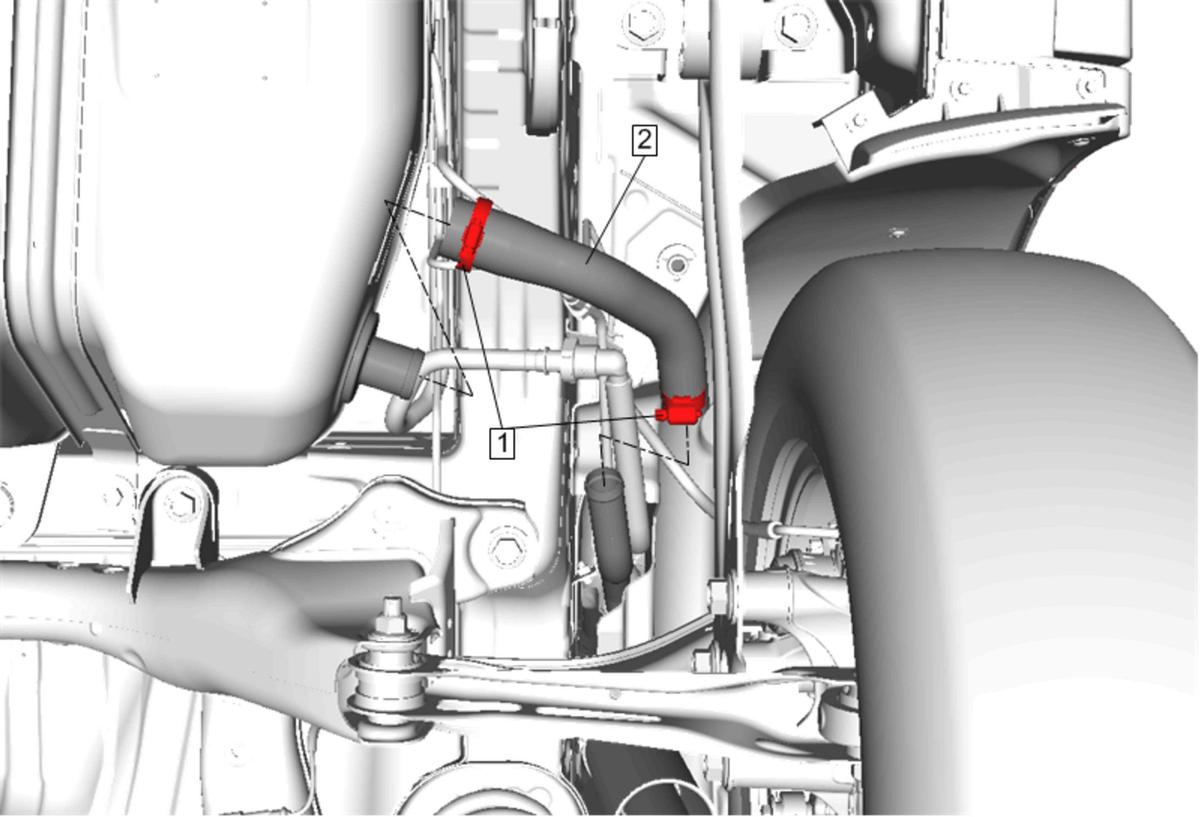

Fig 1: Fuel Tank Filler Hose (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fuel Tank Draining Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Fuel Tank Filler Hose Clamp [2x]

CAUTION:

Tighten
4 N.m (35 lb in)

Fuel Tank Filler Hose
