Engine Coolant Temperature Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

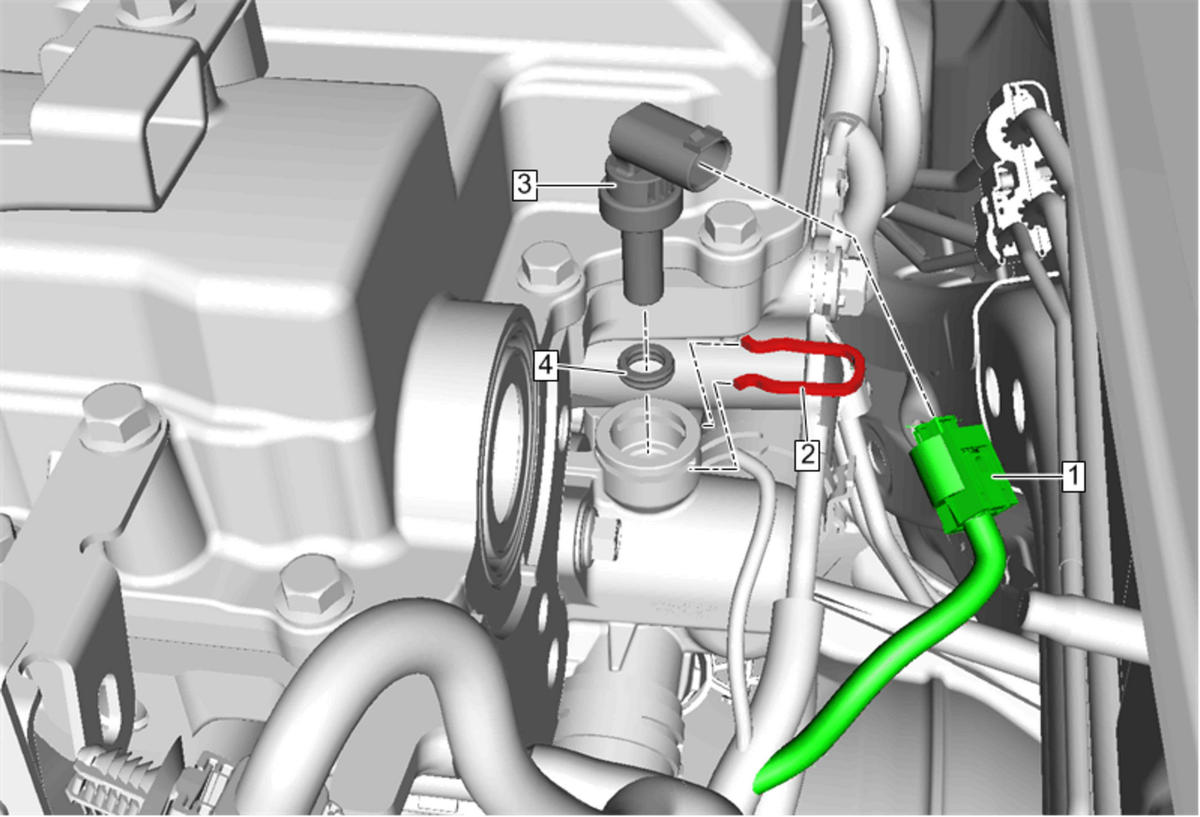

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static) Vacuum Pump Replacement
1	Electrical Connector
2	Engine Coolant Temperature Sensor Retainer
3	Engine Coolant Temperature Sensor
4	Engine Coolant Temperature Sensor Seal Procedure The seal is reusable, inspect the seal and replace if damaged.
