Charge Air Cooler Replacement

WARNING: This page is about a different variant/trim than selected.

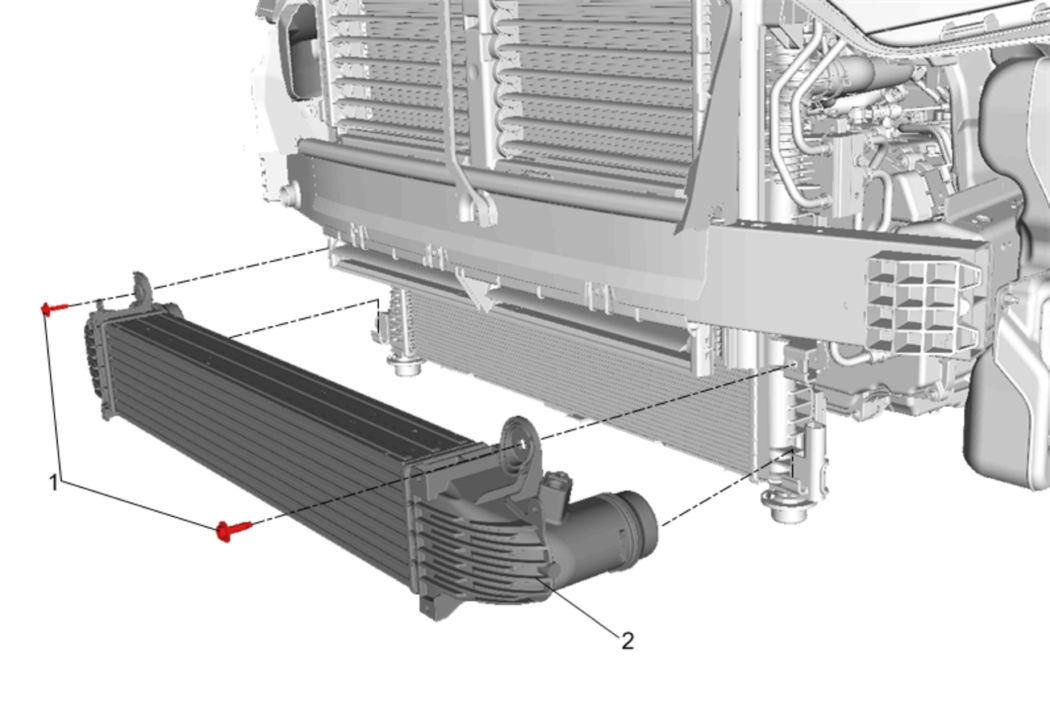

Fig 1: Charge Air Cooler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Radiator Air Lower Baffle Replacement (LH7 LTG LYX) Disconnect Charge Air Cooler Outlet Air Tube @ Charge Air Cooler - Charge Air Cooler Outlet Air Tube Replacement Disconnect Charge Air Cooler Inlet Air Tube @ Charge Air Cooler - Charge Air Cooler Inlet Air Tube Replacement
1	Charge Air Cooler Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Charge Air Cooler

Callout

Component Name

Preliminary Procedure

Charge Air Cooler Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Charge Air Cooler
