Installation Procedure

WARNING: This page is about a different variant/trim than selected.

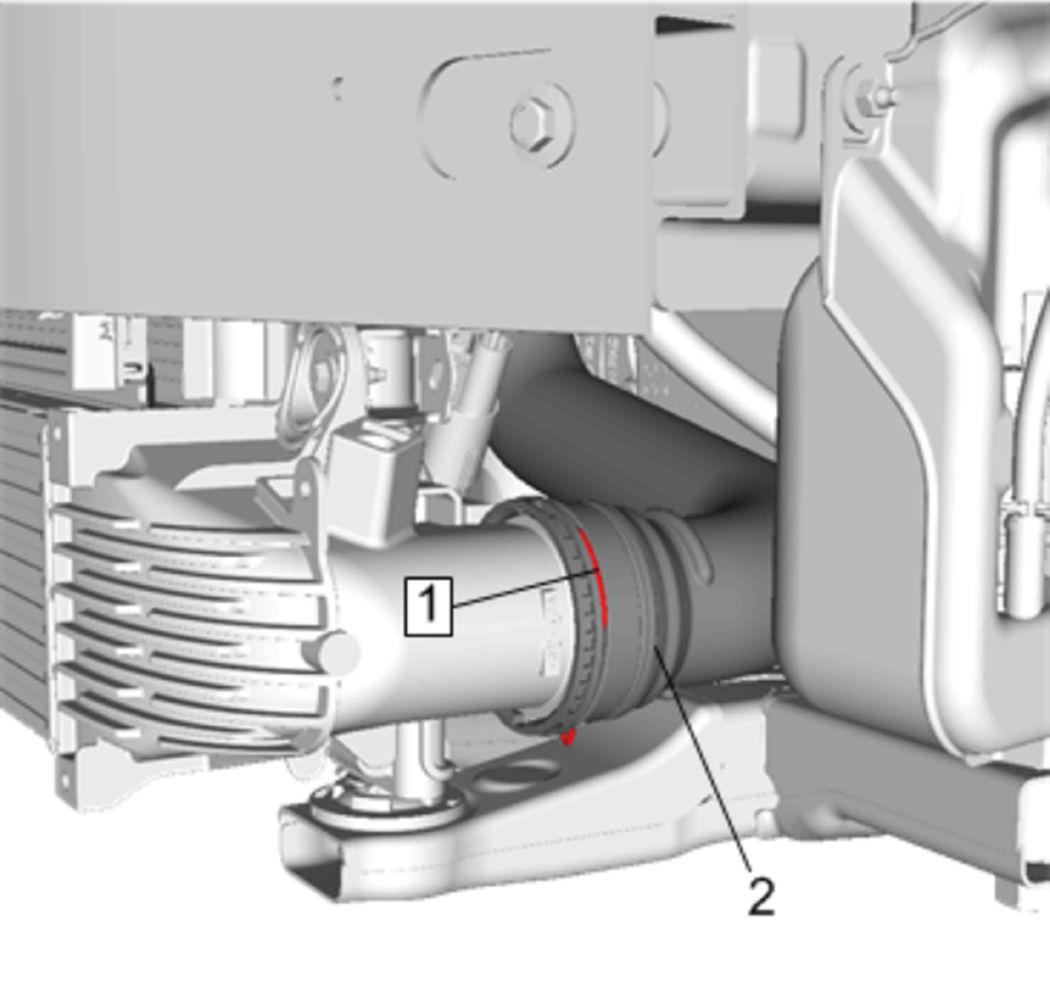

    Fig 1: Retainer Spring And Charge Air Cooler Outlet Air Tube
    GM4645311Courtesy of GENERAL MOTORS COMPANY
  1. Install Charge Air Cooler Outlet Air Tube (2).
  2. Engage Retainer Spring (1)

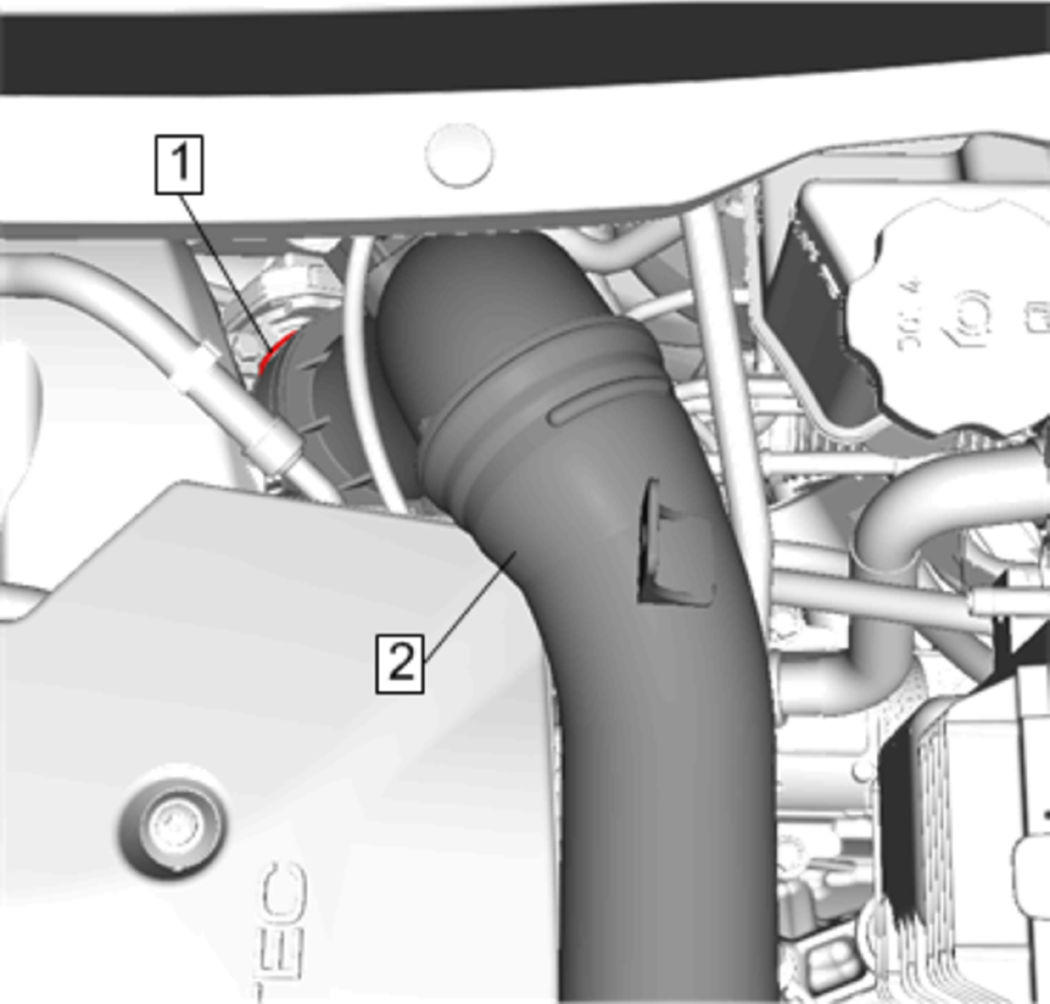

    3. Fig 2: Retainer Spring And Charge Air Cooler Outlet Air Tube
    GM4645309Courtesy of GENERAL MOTORS COMPANY
  3. Install Charge Air Cooler Outlet Air Tube (1).
  4. Engage Retainer Spring (1)

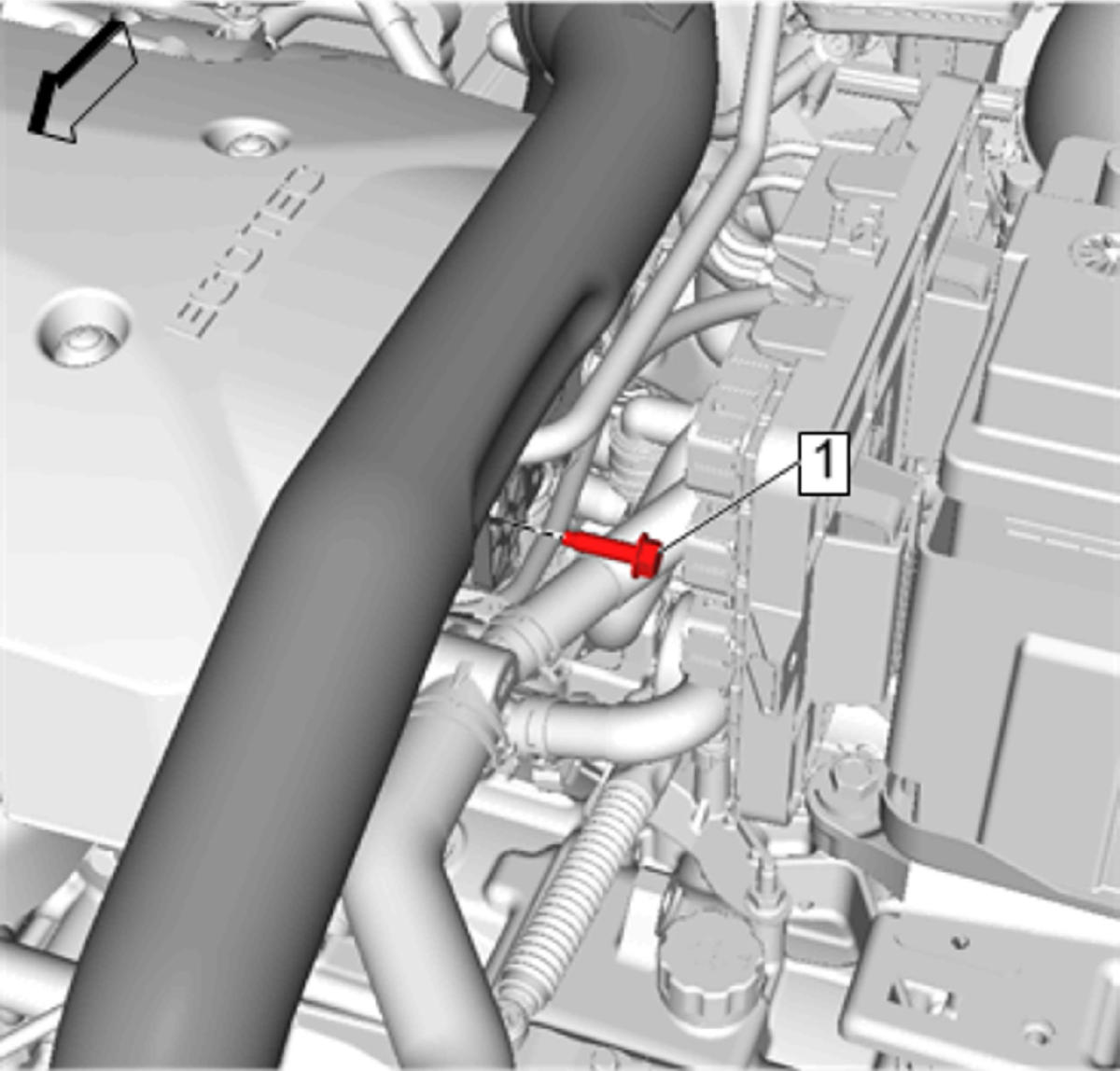

    5. Fig 3: Charge Air Cooler Outlet Air Tube Bolt
    GM4897950Courtesy of GENERAL MOTORS COMPANY
  5. Install Charge Air Cooler Outlet Air Tube Bolt (1) and tighten 9 N.m (80 lb in)
  6. Install Engine Coolant Air Bleed Hose @ Charge Air Cooler Outlet Air Tube - Engine Coolant Air Bleed Hose Replacement (Radiator Surge Tank to Radiator to Engine Coolant Air Bleed Pipe LTG)
  7. Install Intake Air Pressure and Temperature Sensor - Intake Air Pressure and Temperature Sensor Replacement
  8. Install Front Bumper Fascia - Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
