Installation Procedure

WARNING: This page is about a different variant/trim than selected.

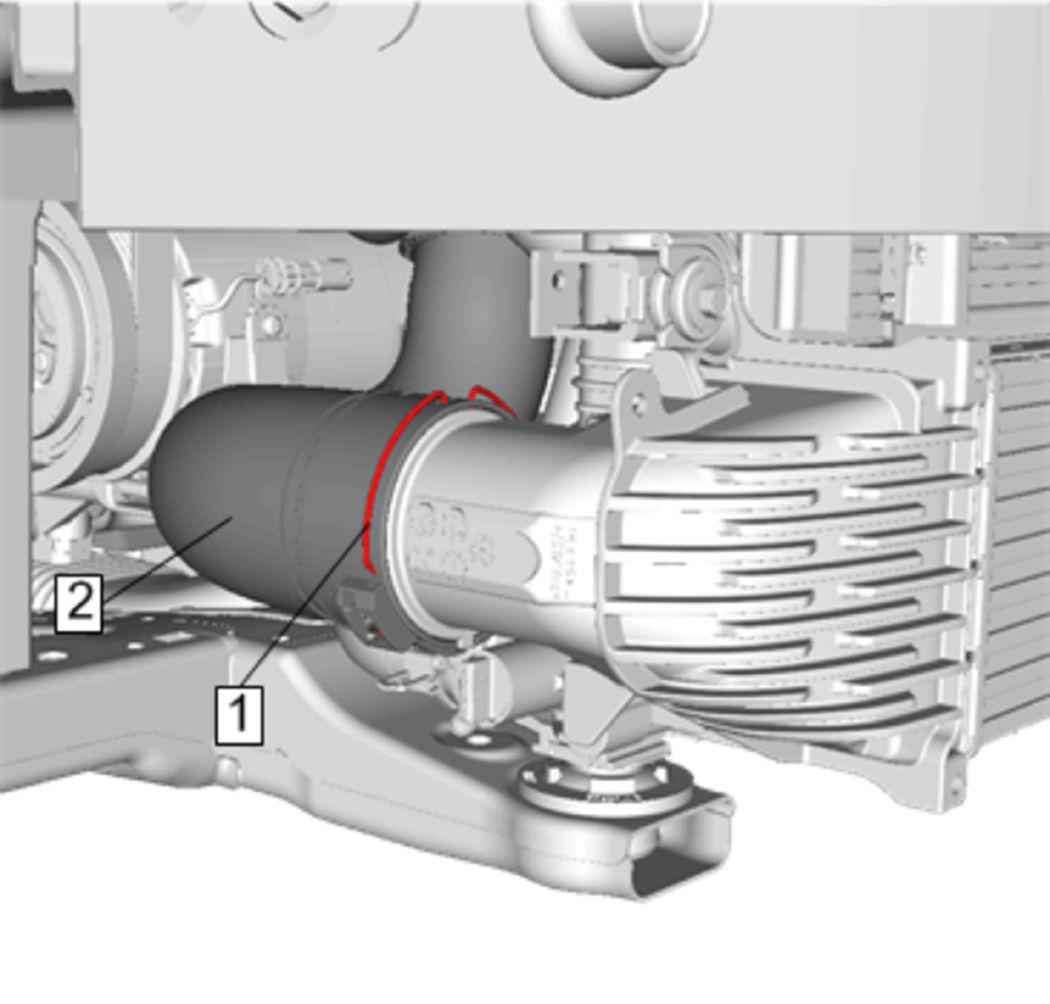

    Fig 1: Retainer Spring And Charge Air Cooler Inlet Air Tube
    GM4645306Courtesy of GENERAL MOTORS COMPANY
  1. Install Charge Air Cooler Inlet Air Tube (2)
  2. Engage Retainer Spring (1)

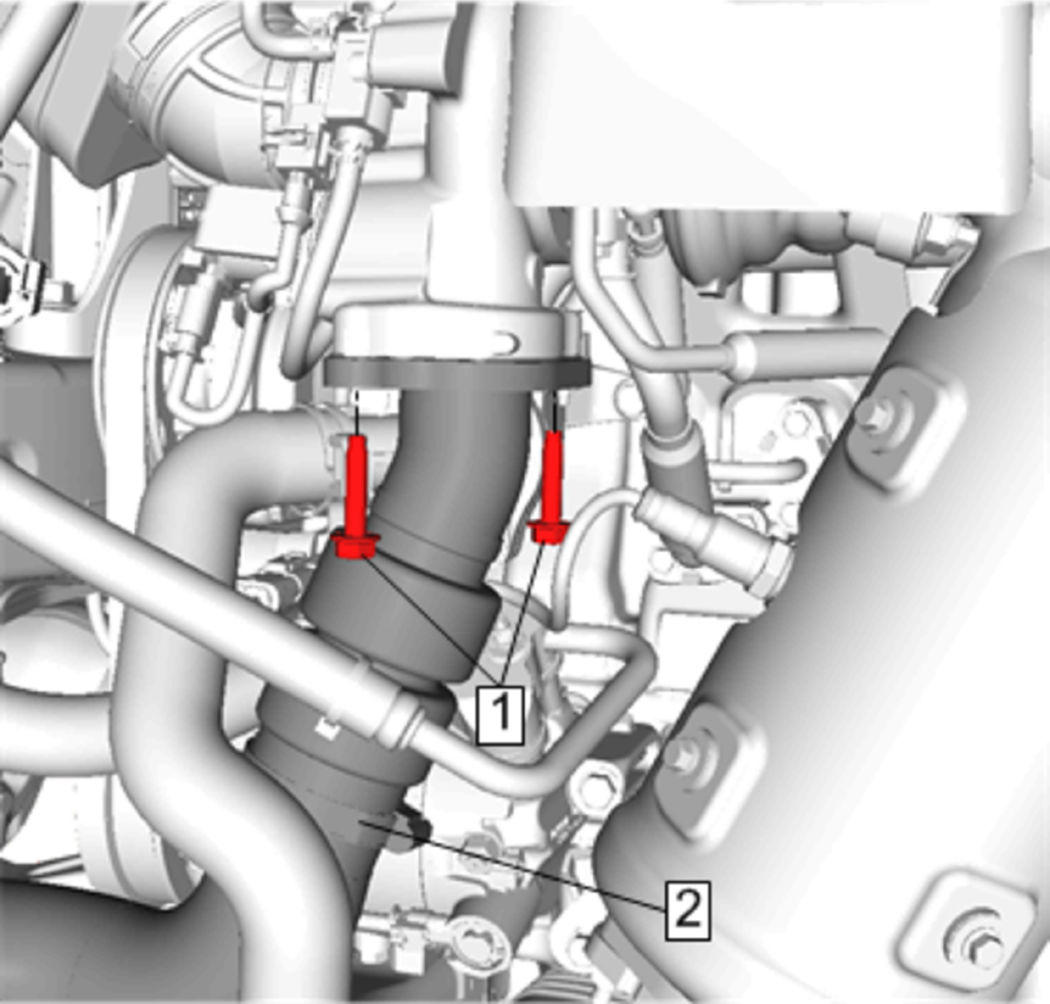

    3. Fig 2: Charge Air Cooler Inlet Air Tube
    GM4645302Courtesy of GENERAL MOTORS COMPANY
  3. Install Charge Air Cooler Inlet Air Tube (2)
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install Charge Air Cooler Inlet Air Tube Bolt (1) [2x] 22 N.m (16 lb ft)
  5. Install Front Bumper Fascia - Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
