Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

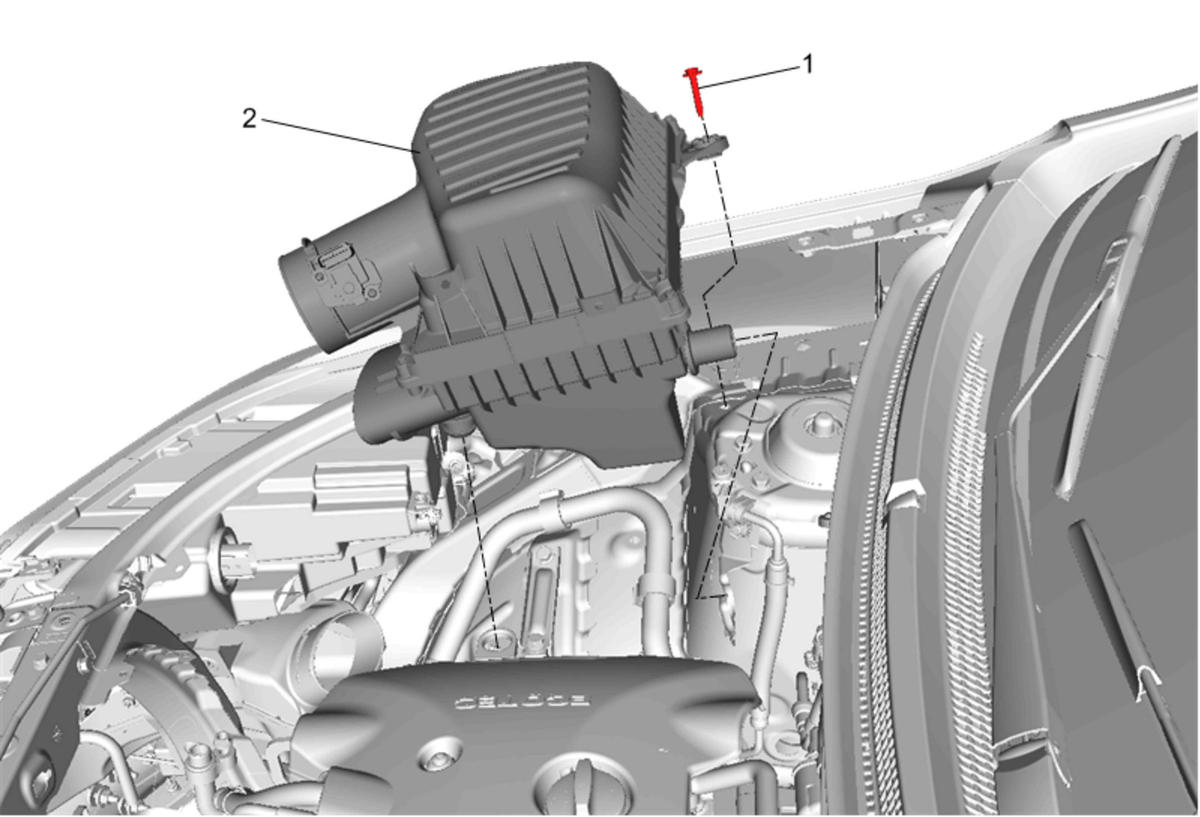

Fig 1: Air Cleaner Assembly
GM4645244Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement (Non-Tamperproof) Air Cleaner Outlet Duct Replacement (Tamperproof)
  2. Intake Air Duct Replacement
  3. Disconnect the electrical connector.
  4. Disconnect the mass airflow sensor wiring harness retainers from the air cleaner assembly.
1 Air Cleaner Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
