Upper Oil Pan - Top View
WARNING: This page is about a different variant/trim than selected.

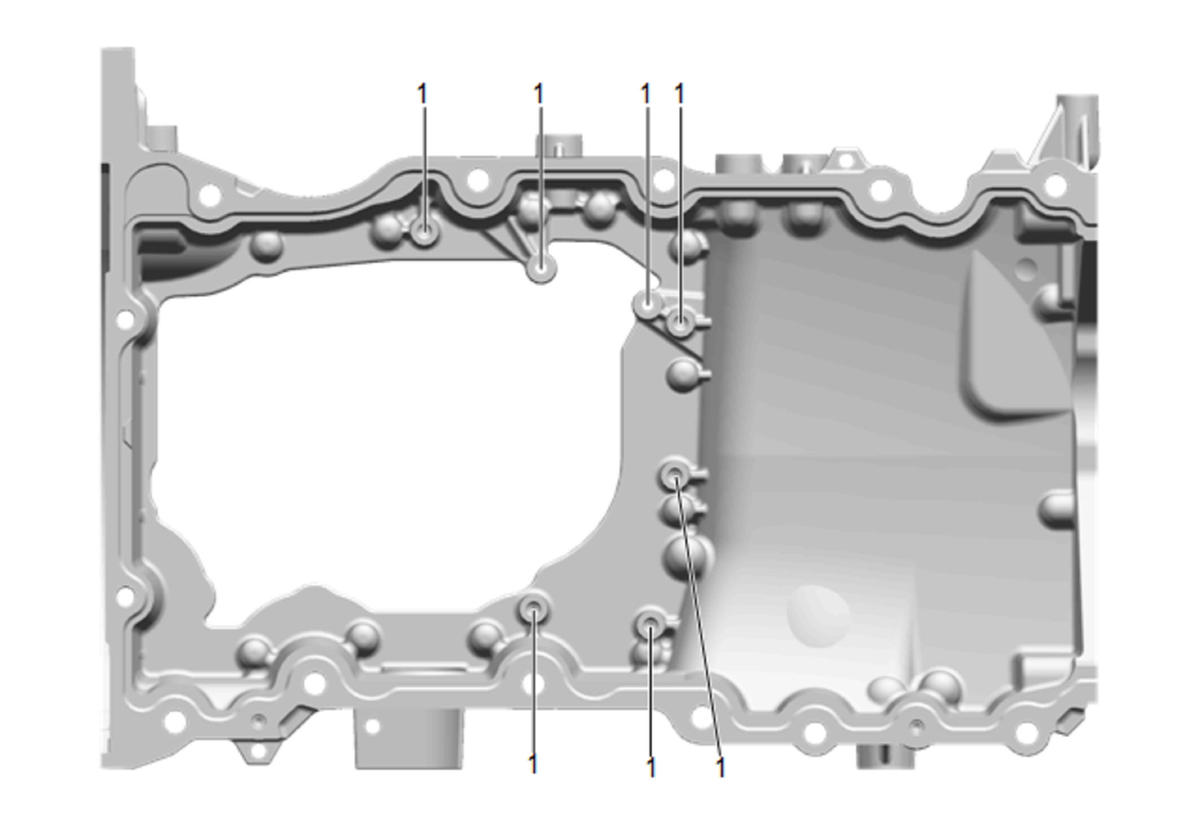

Courtesy of GENERAL MOTORS COMPANY Upper Oil Pan - Top View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M6x1.0 |
161031 |
201 |
202 |
203 |
204 |
23.0 |
0.907 |
23.0 |
0.907 |
