Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

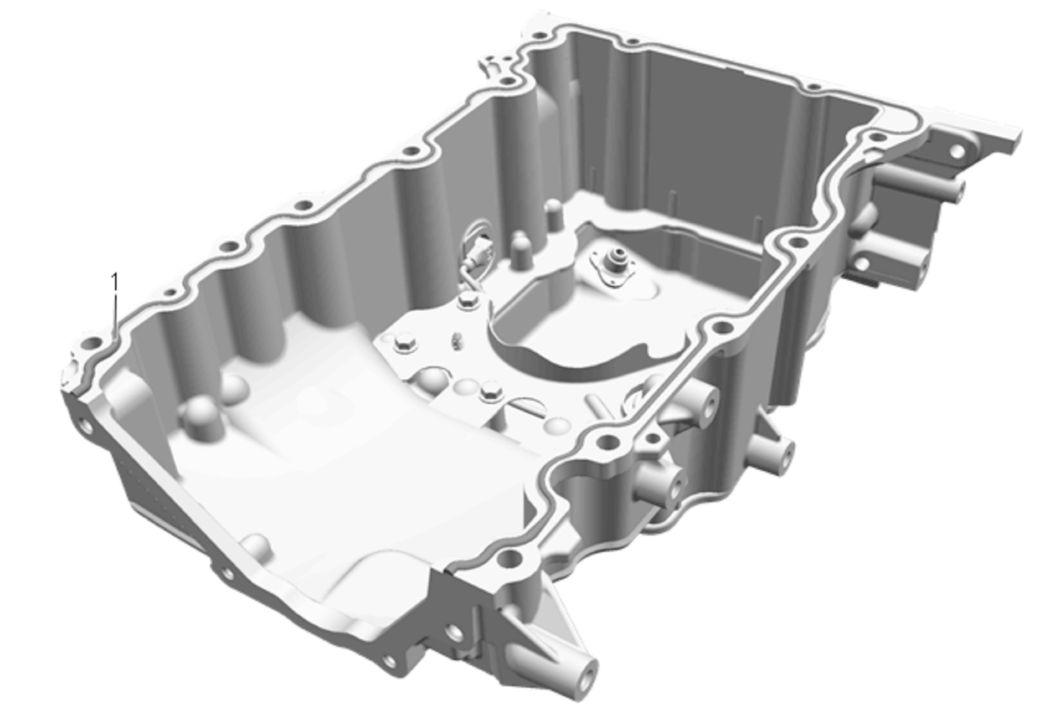

    2. Fig 1: Apply 4.25 mm Bead Of Sealer Around Perimeter Of Oil Pan
    GM5123641Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The lower crankcase surface must be free of contamination prior to applying the sealer.
    • Install and align the oil pan to block within 20 minutes of applying the sealer.
  2. Apply a 4.25 mm bead of sealer (1) on the level part of the flange around the perimeter of the oil pan as shown. Adhesives, Fluids, Lubricants, and Sealers

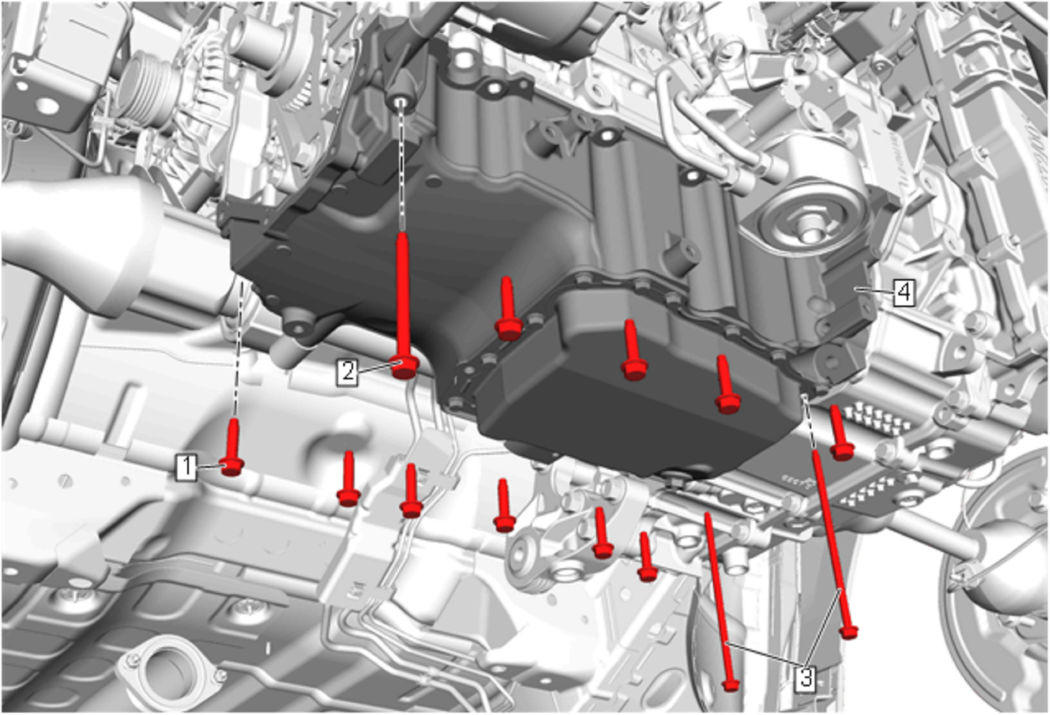

    3. Fig 2: Oil Pan Bolt And Bolt
    GM5123634Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When installing the oil pan, carefully align the oil pan to the locating pins and install the pan onto the lower crankcase.

  3. Install Oil Pan (4)
  4. Install Oil Pan Bolt (3) and hand tighten
  5. Install Oil Pan Bolt a (2) nd hand tighten
  6. Install Oil Pan Bolt (1) and hand tighten
  7. tighten the oil pan bolts in sequence. Oil Pan Installation (FWD)

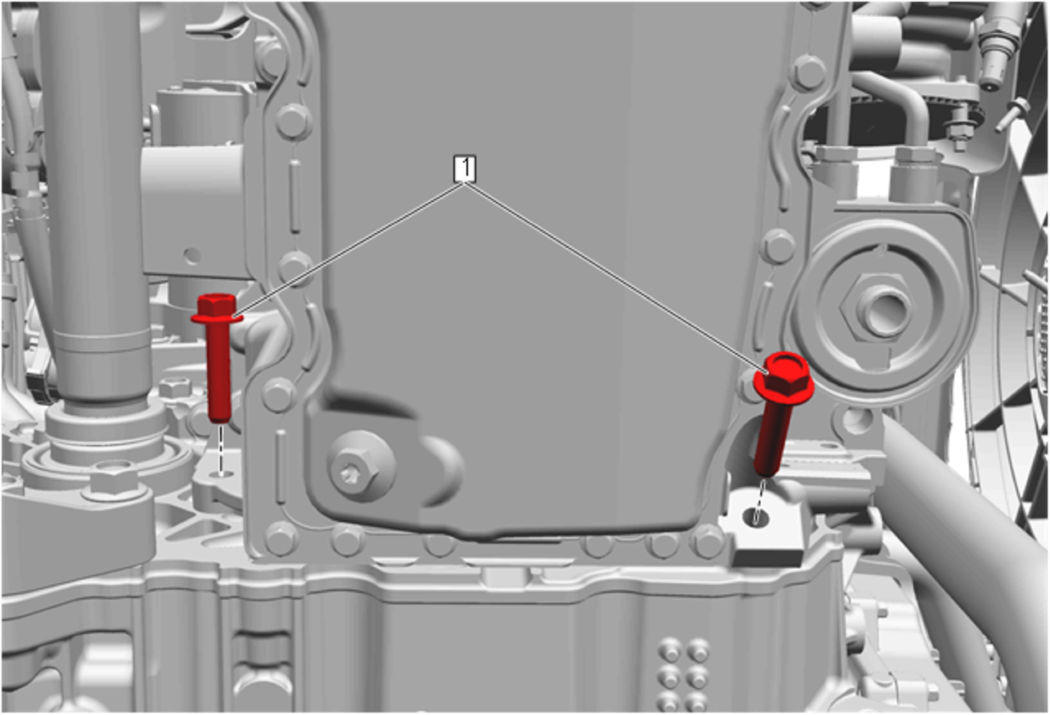

    8. Fig 3: Transmission Bolt
    GM5123223Courtesy of GENERAL MOTORS COMPANY
  8. Install Transmission Bolt (1) - Transmission Replacement (Front Wheel Drive)

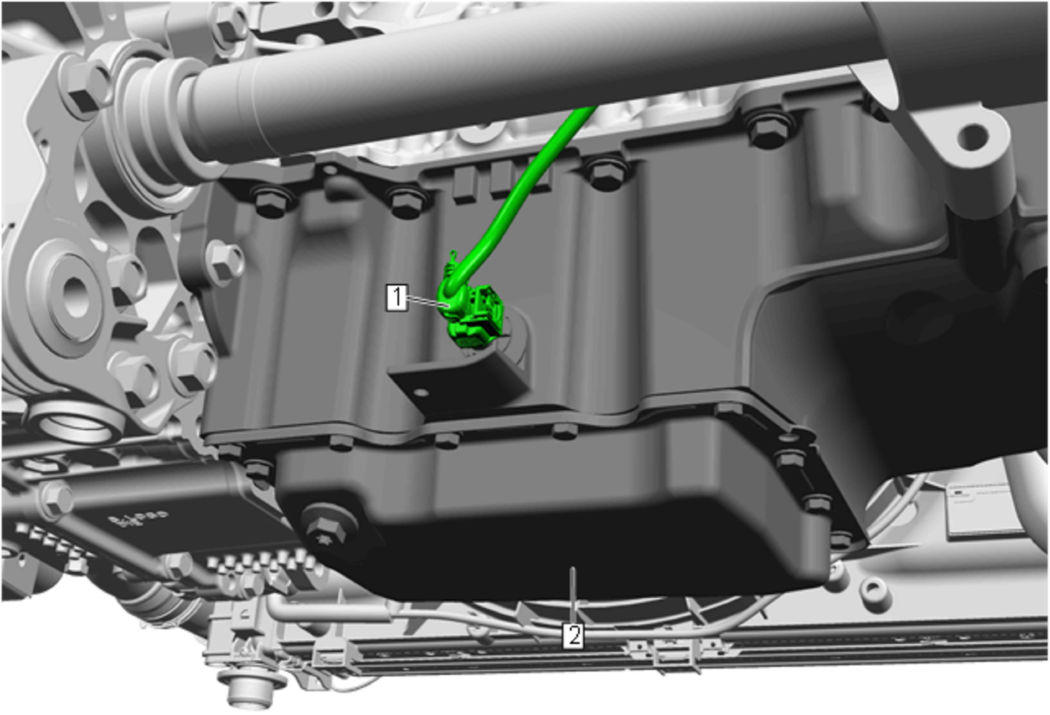

    9. Fig 4: Electrical Connector And Oil Pan
    GM5123110Courtesy of GENERAL MOTORS COMPANY
  9. Connect Electrical Connector (1) @ Oil Pan (2)

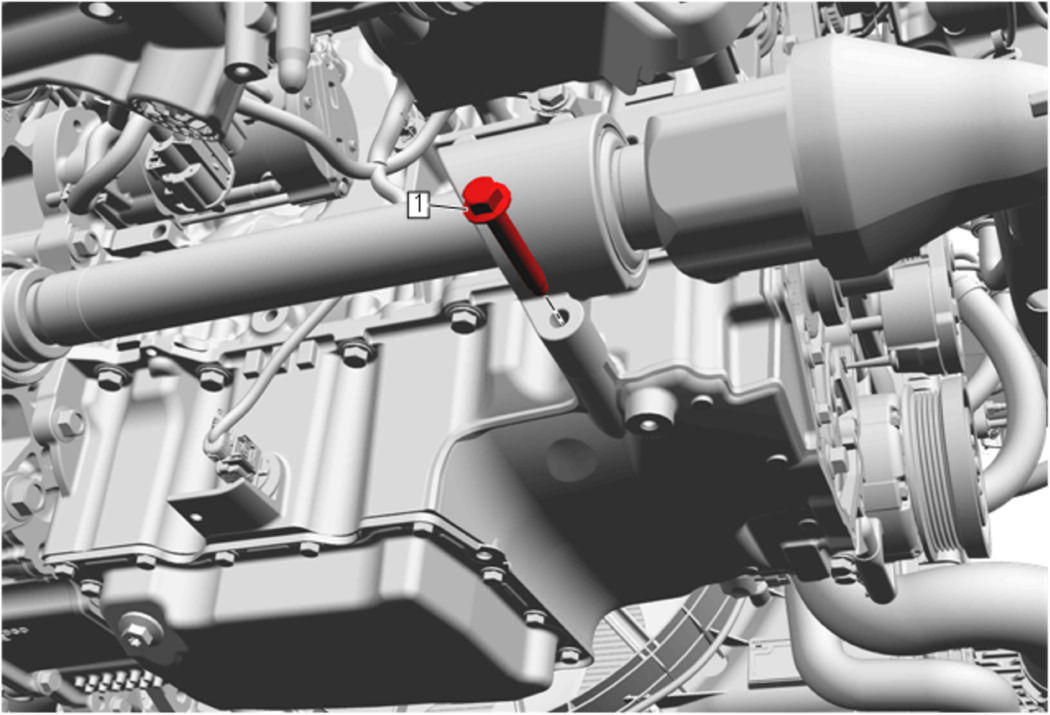

    10. Fig 5: Front Wheel Drive Intermediate Shaft Bracket Bolt
    GM5122834Courtesy of GENERAL MOTORS COMPANY
  10. Install Front Wheel Drive Intermediate Shaft Bracket Bolt (1) - Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3D, M3H with FWD)

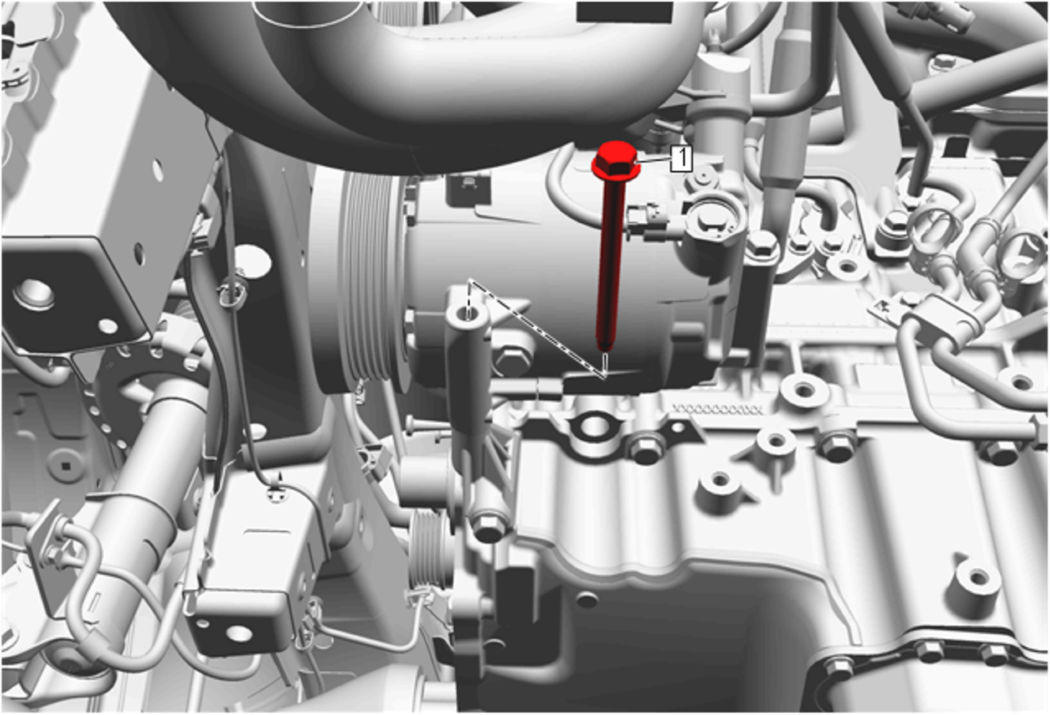

    11. Fig 6: Air Conditioning Compressor Bolt
    GM5122833Courtesy of GENERAL MOTORS COMPANY
  11. Install Air Conditioning Compressor Bolt (1) - Air Conditioning Compressor Replacement (LTG)
  12. Install Engine Front Cover - Engine Front Cover Replacement
  13. Install Oil Pump Flow Control Valve Heat Shield -Oil Pump Flow Control Valve Heat Shield Replacement
  14. Install Drivetrain and Front Suspension Cradle - Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive)
  15. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement
