Lower Oil Pan Replacement

WARNING: This page is about a different variant/trim than selected.

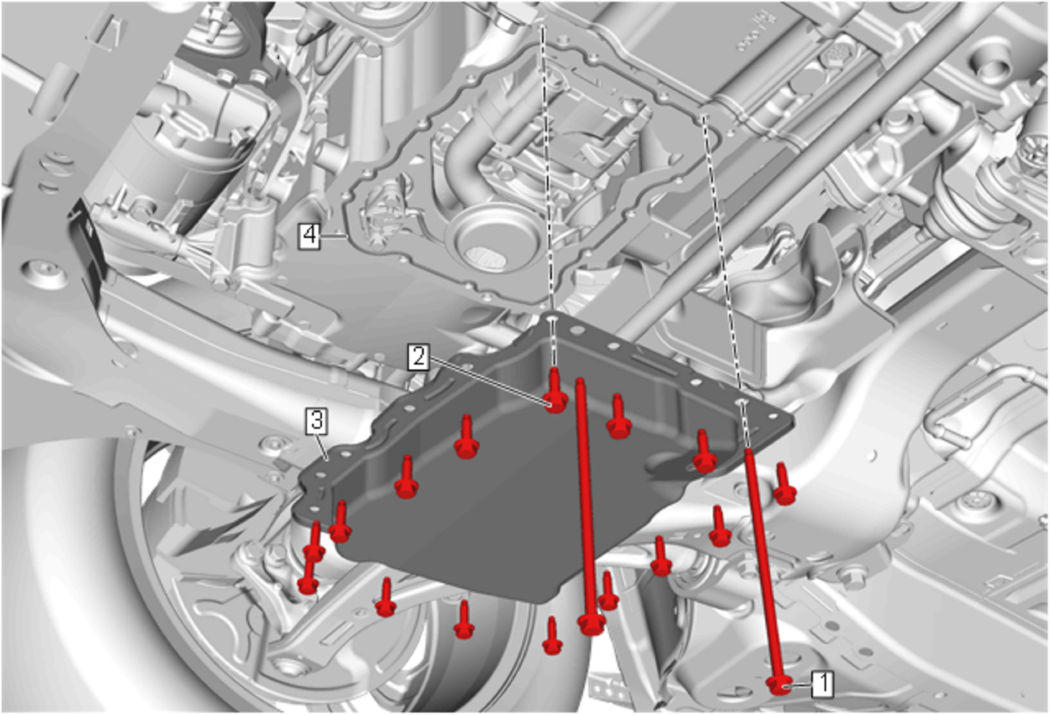

Fig 1: Lower Oil Pan

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Exhaust Front Pipe -Exhaust Front Pipe Replacement (LTG) Drain the engine oil. Engine Oil and Oil Filter Replacement
1	Oil Pan Bolt CAUTION: Refer to Fastener Caution . tighten 10 N.m (89 lb in)
2	Oil Pan Bolt tighten 10 N.m (89 lb in)
3	Lower Oil Pan
4	Lower Oil Pan Sealant NOTE: The lower crankcase surface must be free of contamination prior to applying the sealer. Install and align the oil pans within 20 minutes of applying the sealer. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Apply a bead of RTV sealant to the perimeter of the lower oil pan. Adhesives, Fluids, Lubricants, and Sealers
