Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the camshaft position actuator and camshaft - intake. Refer to Camshaft Position Actuator and Camshaft Replacement - Intake .

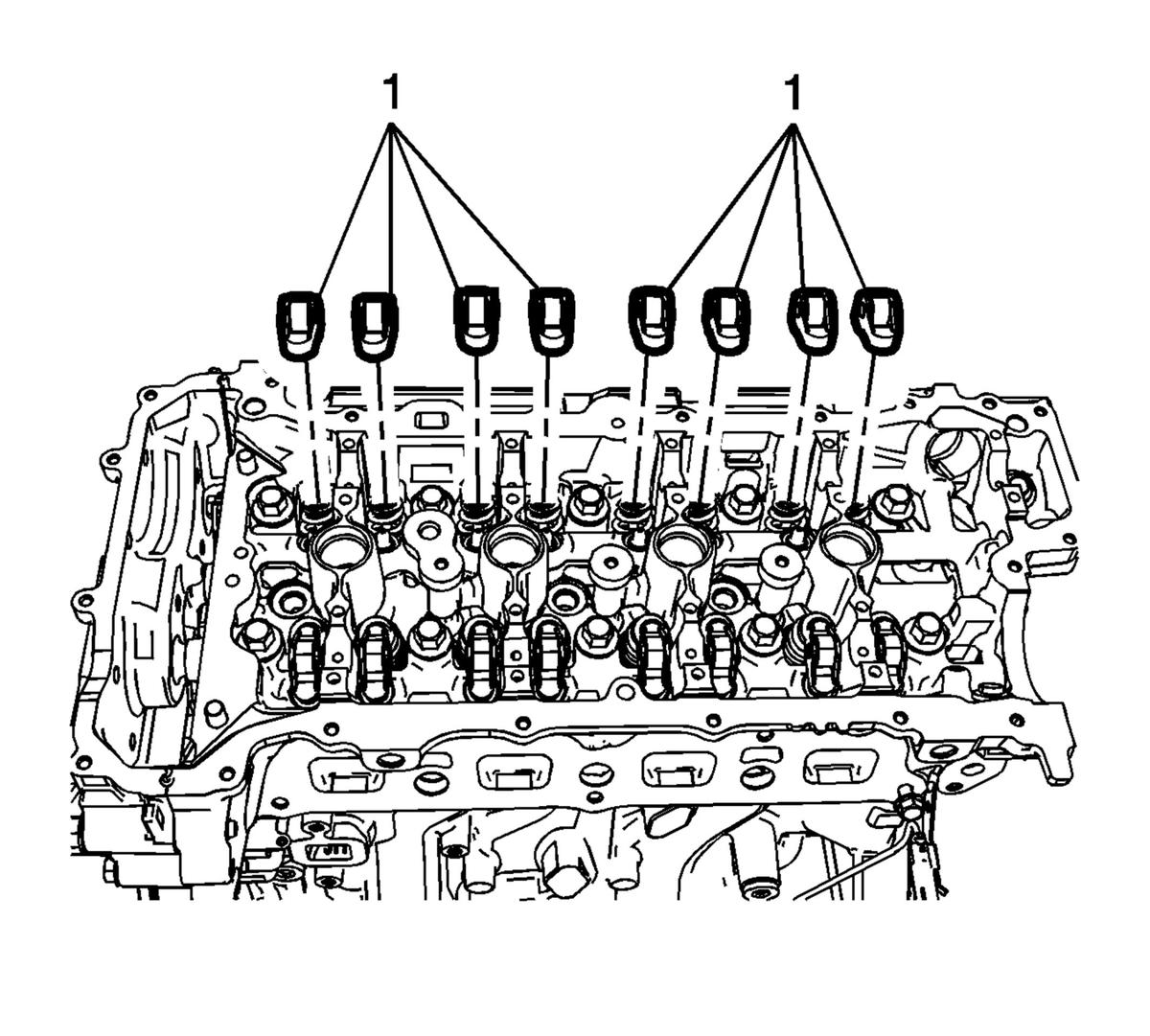

    2. Fig 1: Intake Rocker Arm
    GM2963895Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep all of the valve rocker arms and hydraulic lash adjusters in order so that they can be reinstalled in their respective locations.

  2. Remove the intake rocker arm (1).
