Installation Procedure
WARNING: This page is about a different variant/trim than selected.

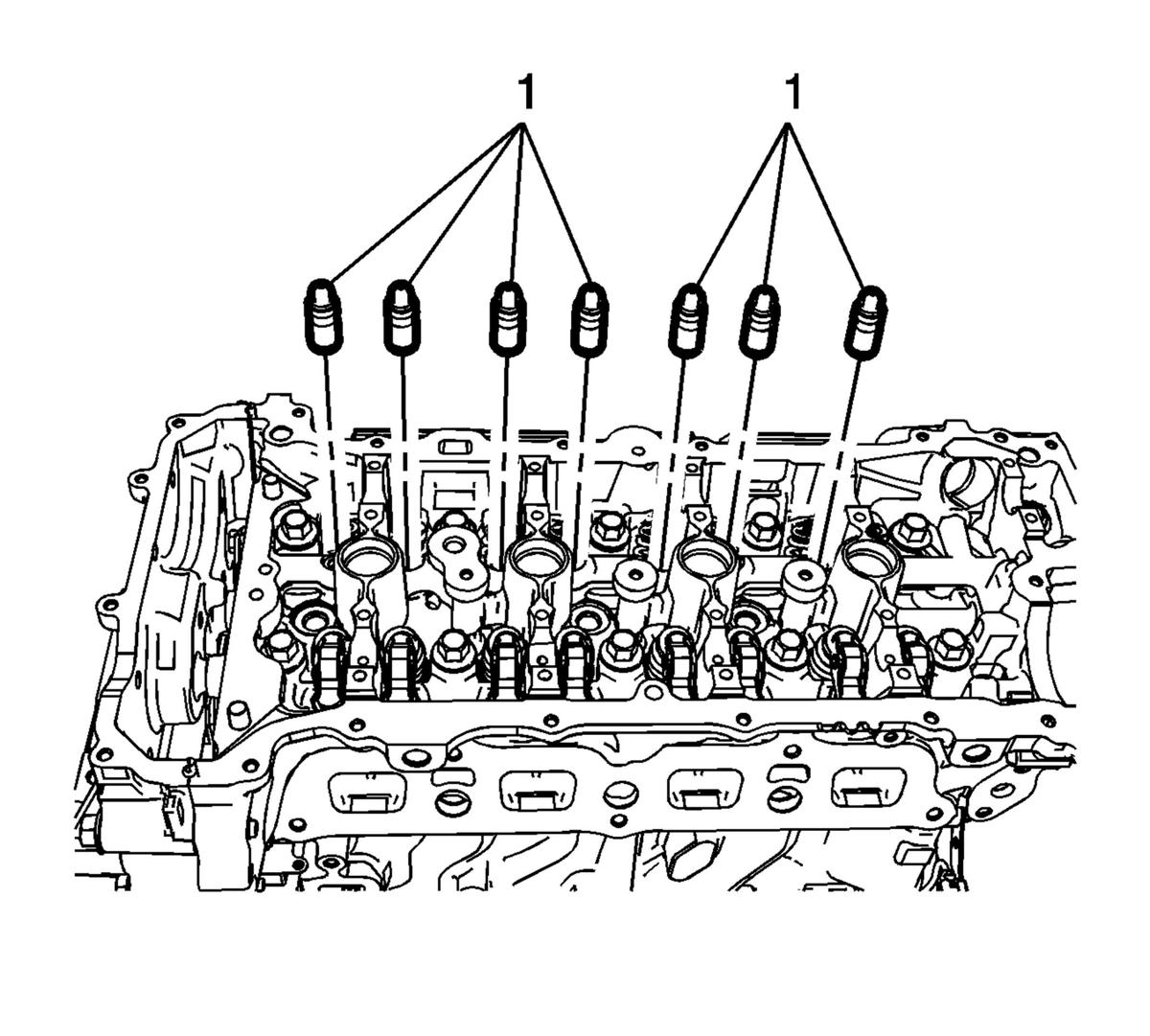

- Lubricate and install the hydraulic valve lash adjusters (1) into their bores in the cylinder head. Refer to Adhesives, Fluids, Lubricants, and Sealers .
- Install the intake valve rocker arm. Refer to Intake Valve Rocker Arm Replacement .
NOTE:
Pre-fill the low pressure chamber with engine oil. Maintain a vertical orientation of the assembly to retain the oil in the reservoir and high pressure chamber. Do not install the lash adjusters without pre-filling the low pressure chamber. Apply engine oil to the outer diameter surface of all adjusters.
