Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil pump. Balancer Shaft with Oil Pump Assemble
    2. Fig 1: Balancer Shaft with Oil Pump And Bolts
    GM4176256Courtesy of GENERAL MOTORS COMPANY
  2. Install Balancer Shaft with Oil Pump (2)
  3. Loosely Install Balancer Shaft with Oil Pump Bolt (1) - [8x]

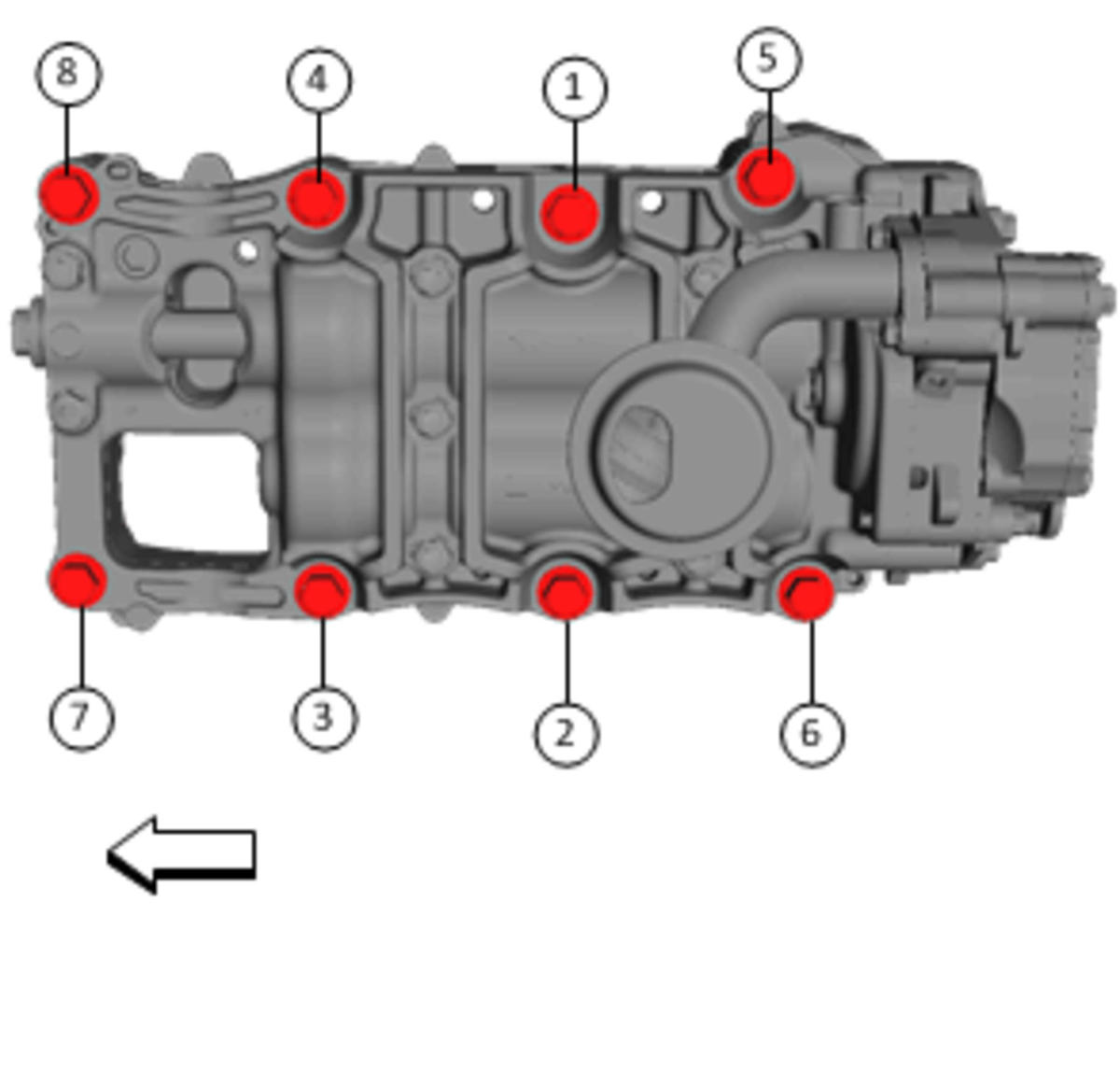

    4. Fig 2: Balancer Shaft With Oil Pump Bolt tightening Sequence
    GM4176261Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Balancer Shaft with Oil Pump Bolt - tighten in sequence [8x]

    tighten

    1. First pass  58 N.m (43 lb ft)
    2. Final pass  58 N.m (43 lb ft)
  5. Install Timing Chain Crankshaft Sprocket Replacement
  6. Install Oil Pan Replacement (AWD) Oil Pan Replacement (FWD)
