Section 3 (Engine Mechanical - 2.0L (LTG))
>>
Repair Instructions - Off Vehicle
>>
Oil Pan Removal (FWD)
>>
Oil Pan Removal
Oil Pan Removal
WARNING:
This page is about a different variant/trim than selected.

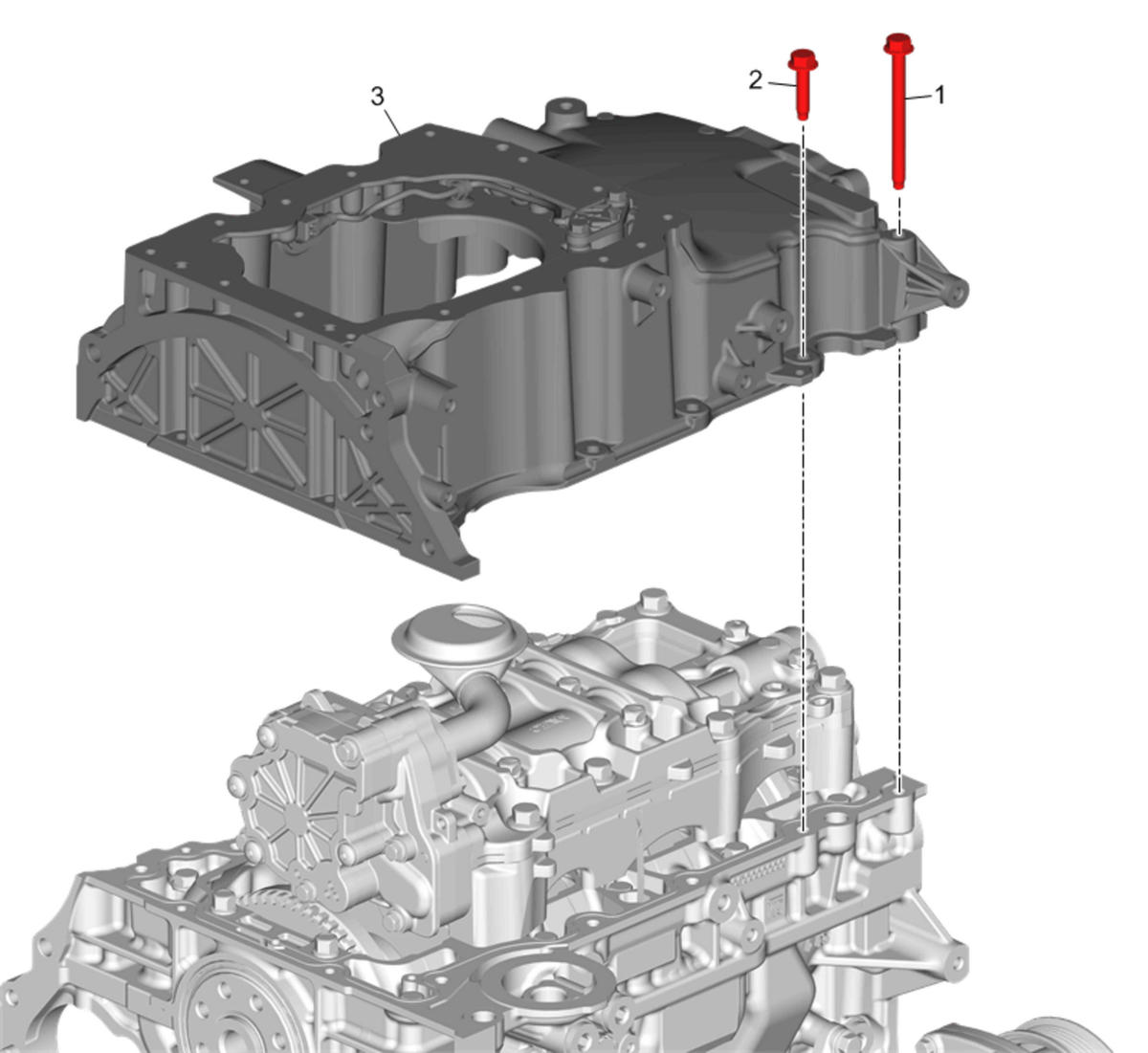

Fig 1: Oil Pan
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Oil Pan Bolt
2
Oil Pan Bolt
3
Oil Pan
Courtesy of GENERAL MOTORS COMPANY
