Oil Pan Installation (AWD)

WARNING: This page is about a different variant/trim than selected.

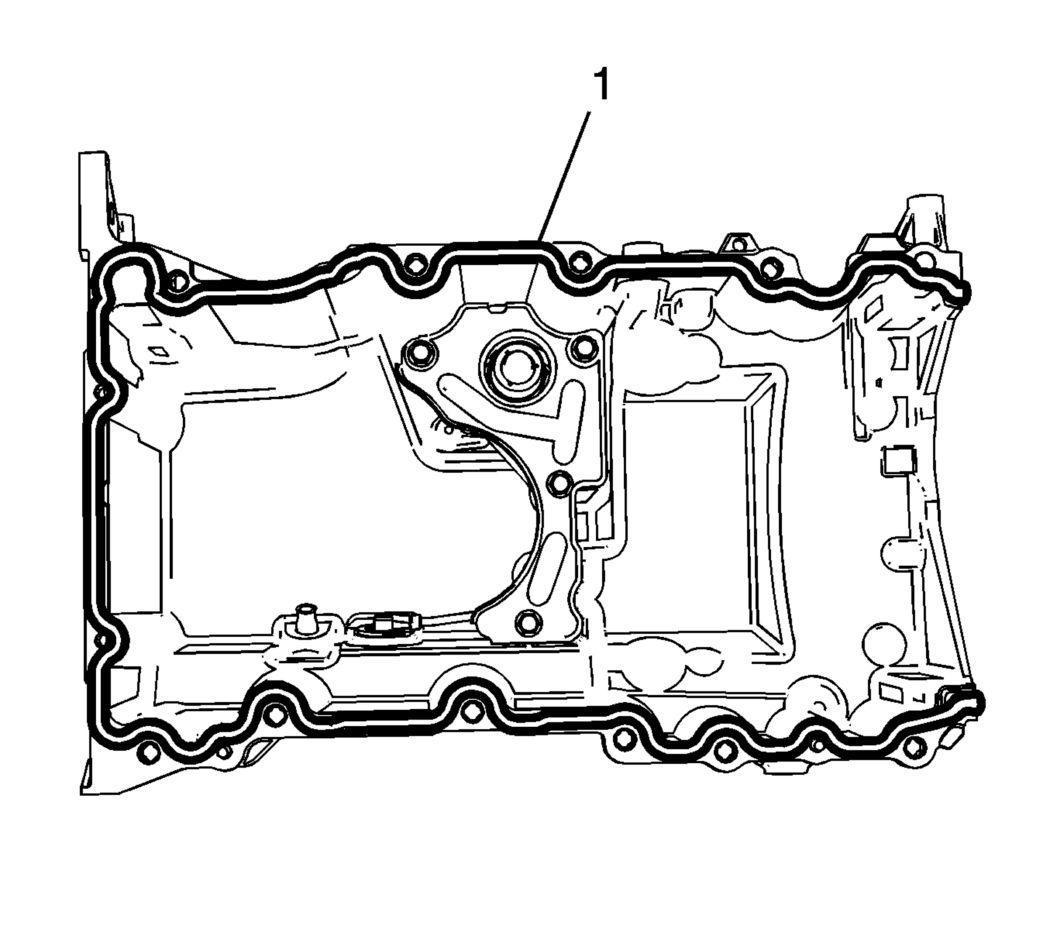

    Fig 1: Engine Oil Pan Sealing Surface
    GM3406334Courtesy of GENERAL MOTORS COMPANY
  1. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
    2. NOTE:
    • The lower crankcase surface must be free of contamination prior to applying the sealer.
    • Install and align the oil pan to block within 20 minutes of applying the sealer.
    • The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
  2. Apply a 4.25 mm bead of sealer (1) on the level part of the flange around the perimeter of the oil pan. Refer to Adhesives, Fluids, Lubricants, and Sealers .

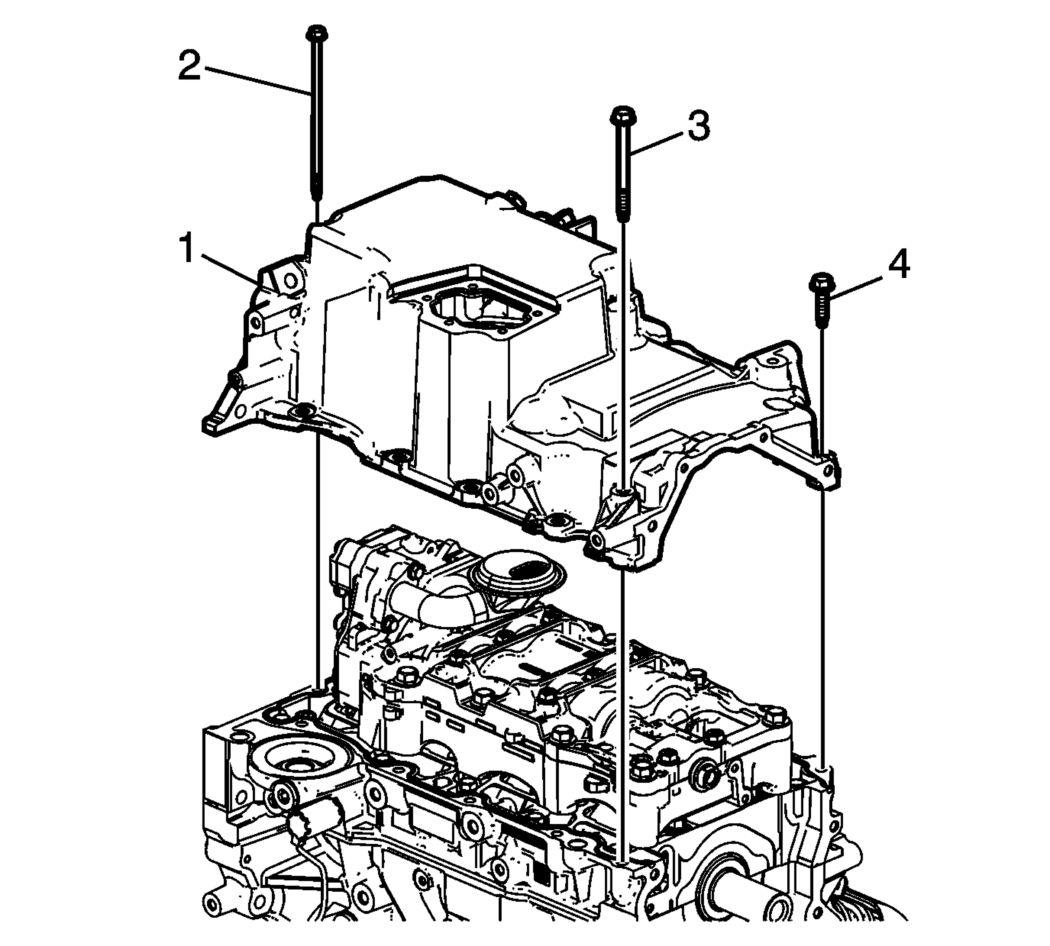

    3. Fig 2: Upper Oil Pan And Bolts
    GM3412927Courtesy of GENERAL MOTORS COMPANY
  3. Install the oil pan (1).
  4. Install the oil pan bolts (2, 3, 4) finger tight.

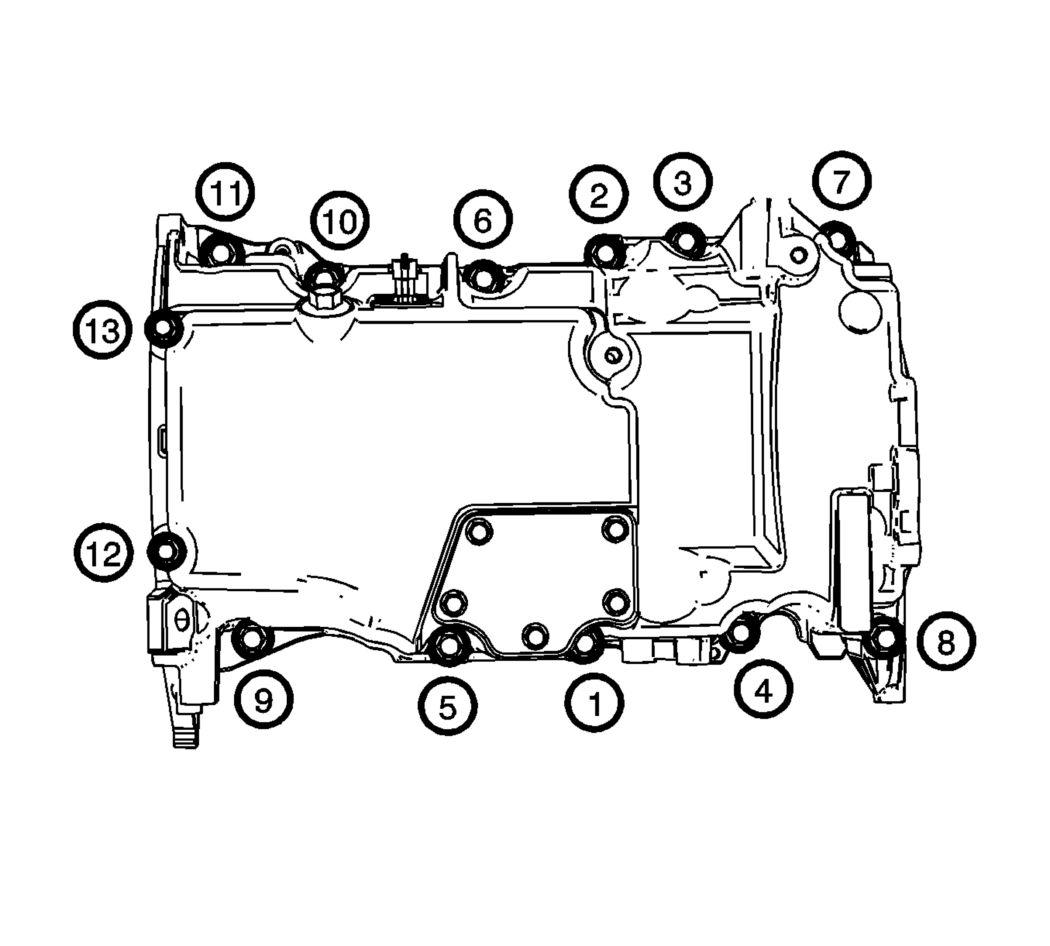

    5. Fig 3: Oil Pan Bolts Tightening Sequence
    GM3406336Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. tighten the oil pan bolts in sequence to final torque twice using the following procedure:
    1. tighten bolts in sequence 1 - 11 to 25 N.m (18 lb ft).
    2. tighten bolts in sequence 12 - 13 to 10 N.m (89 lb in).

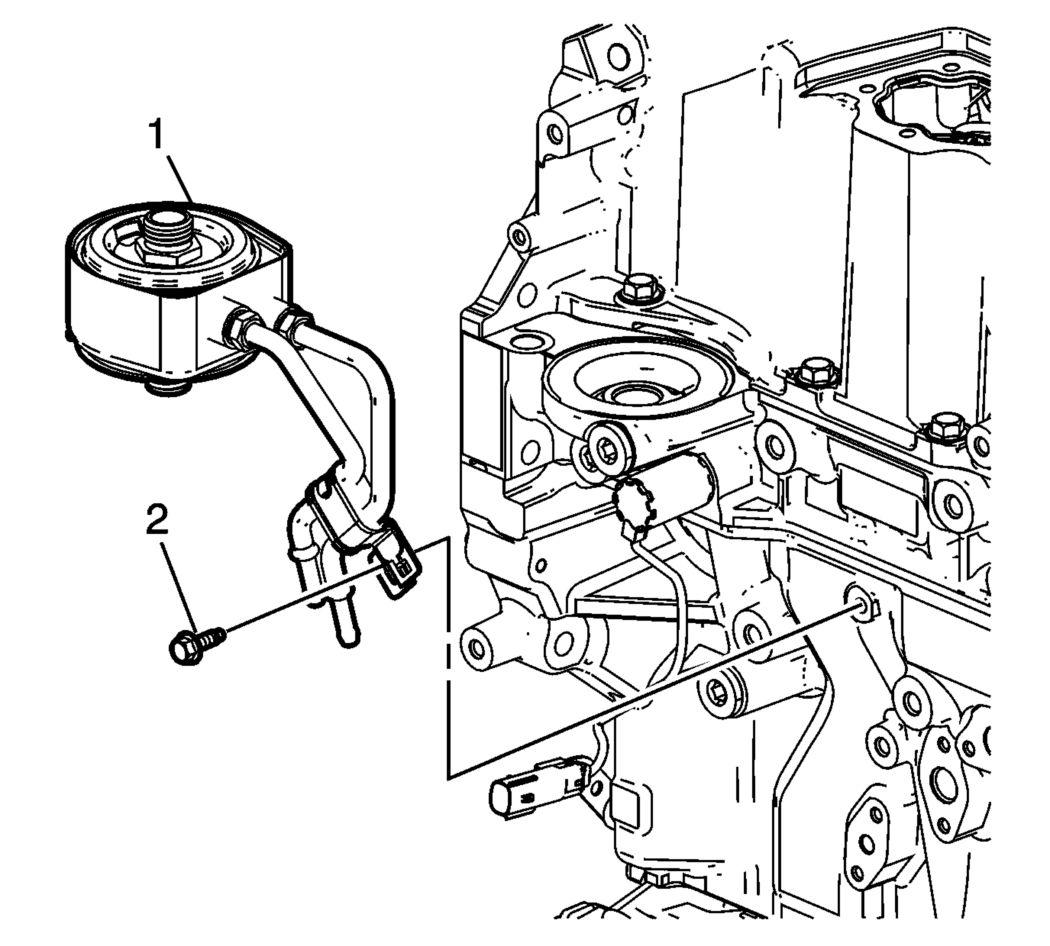

    6. Fig 4: Engine Oil Cooler
    GM3412924Courtesy of GENERAL MOTORS COMPANY
  6. Install the engine oil cooler (1). tighten the engine oil cooler connector to 50 N.m (37 lb ft).
  7. Install the engine oil cooler bolt (2) and tighten to 10 N.m (89 lb in).
    8. Fig 5: Oil Pump Flow Control Valve Cover
    GM3412922Courtesy of GENERAL MOTORS COMPANY
  8. Install the oil pump flow control valve cover (3).
  9. Install the valve cover bolts (1, 4) and tighten to 9 N.m (80 lb in).
  10. Install the valve cover bolt (2) and tighten to 58 N.m (43 lb ft).

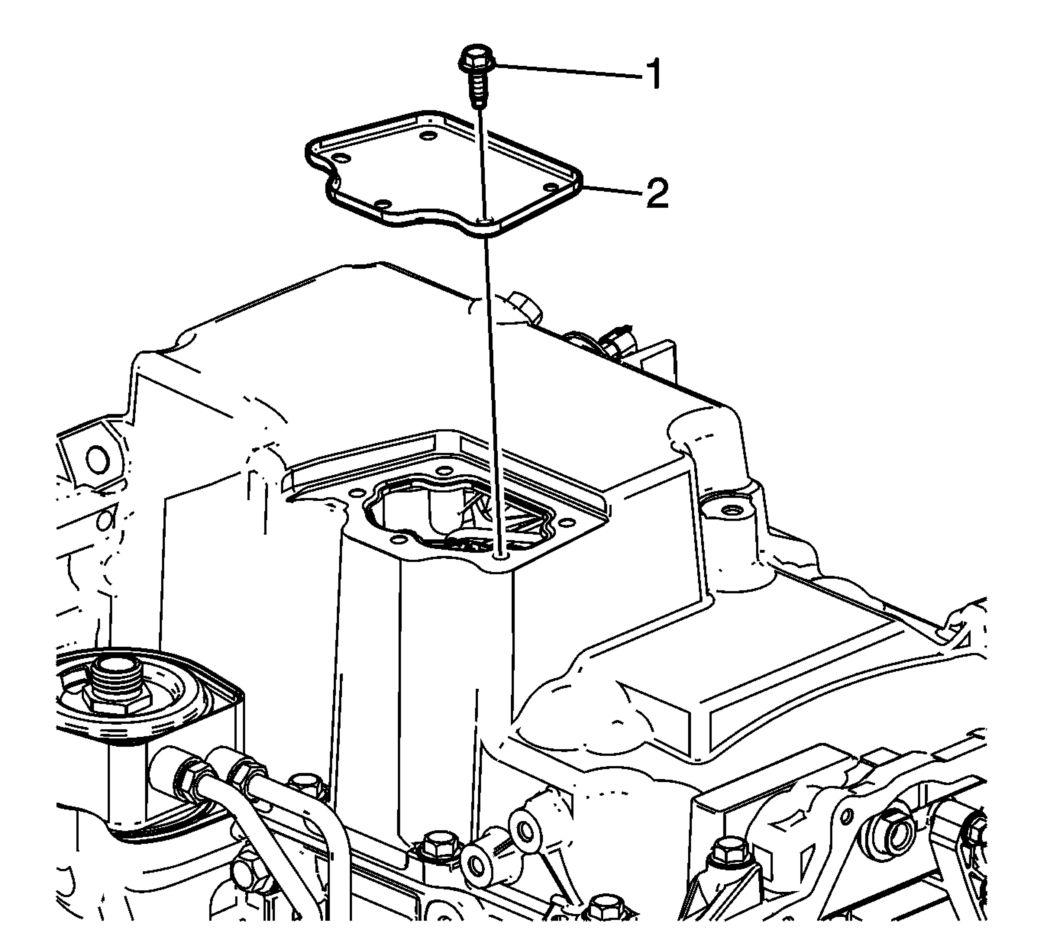

    11. Fig 6: Oil Pan Cover And Bolts
    GM3412915Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The oil pan sealing surfaces must be free of contamination prior to applying the sealer.
    • Install and align the oil pans within 20 minutes of applying the sealer.
    • The oil pans must be fastened to final torque specification within 60 minutes of applying the sealer.
  11. Apply a bead of RTV sealant to the perimeter of the oil pan cover.
  12. Install the oil pan cover (2).
  13. Install the oil pan cover bolts (1) and tighten to 10 N.m (89 lb in).
