Camshaft Cover - Bottom

WARNING: This page is about a different variant/trim than selected.

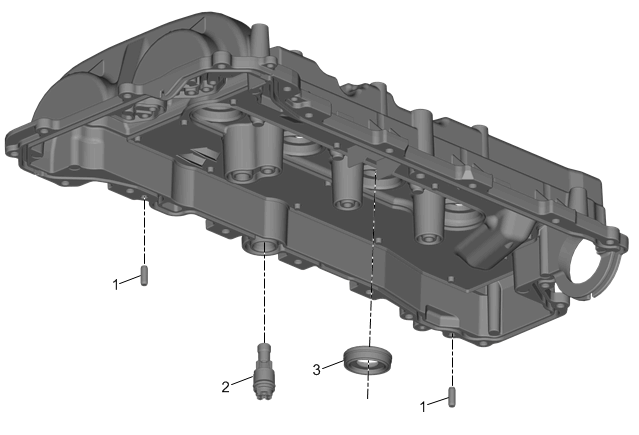

Fig 1: Camshaft Cover -- Bottom
GM3962792Courtesy of GENERAL MOTORS COMPANY
Camshaft Cover - Bottom

Callout Component Name
Preliminary Procedure
Inspect each component, O-rings, and fasteners, and replace as necessary.
1 Camshaft Cover Locating Pin
2 Positive Crankcase Ventilation Valve
3 Spark Plug Shield Seal
Special Tools
EN 34115  Sprocket Bearing Installer
Equivalent regional tools: Special Tools .
