Turbocharger and Components

WARNING: This page is about a different variant/trim than selected.

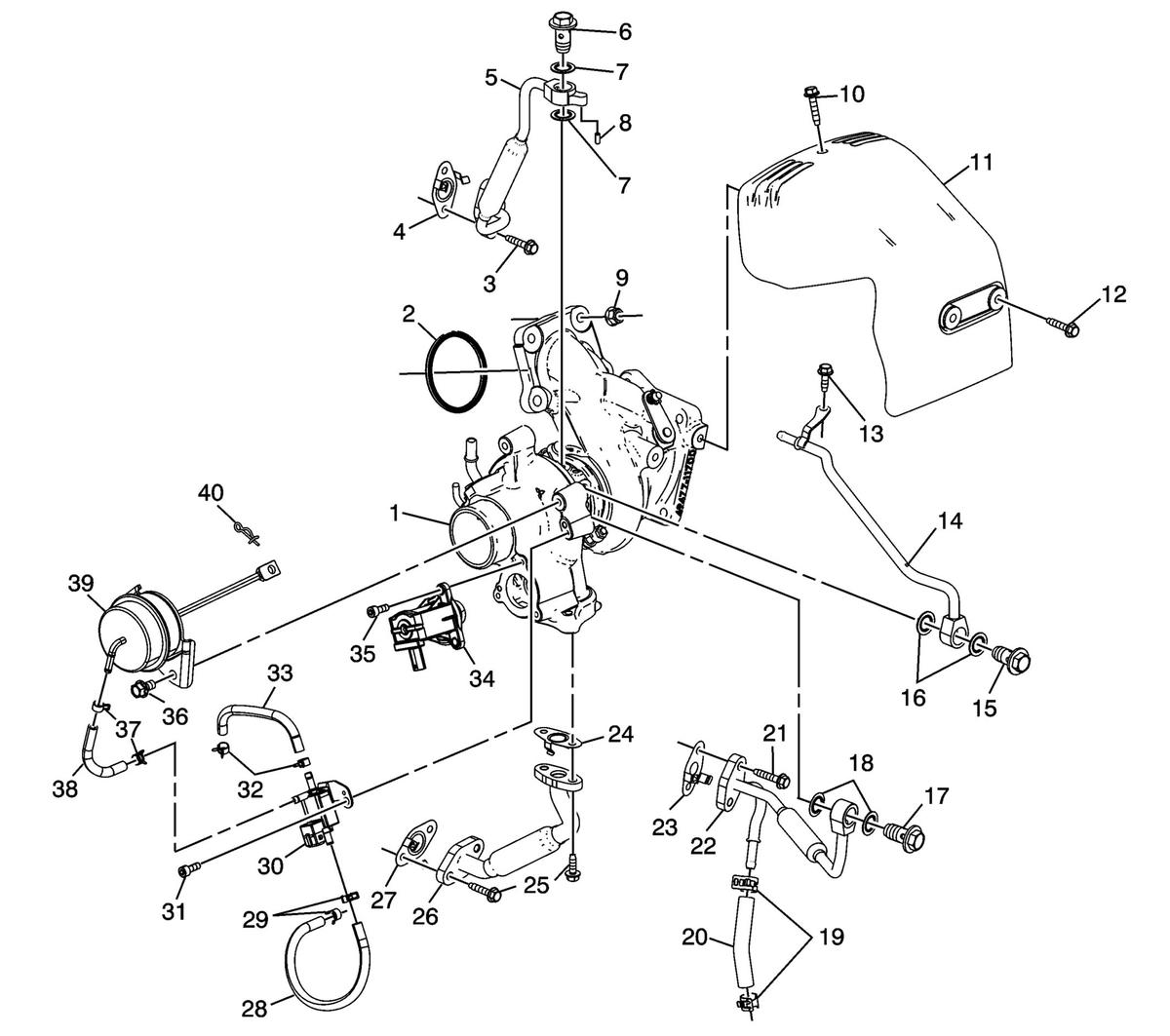

Fig 1: Turbocharger and Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbocharger
2	Turbocharger Gasket
3	Turbocharger Oil Feed Pipe Bolt
4	Turbocharger Oil Feed Pipe Gasket
5	Turbocharger Oil Feed Pipe Assembly
6	Turbocharger Oil Feed Pipe Bolt
7	Turbocharger Oil Feed Pipe Washer
8	Turbocharger Oil Feed Pipe Anti-Rotate Roll Pin
9	Turbocharger Nut
10	Turbocharger Heat Shield Bolt
11	Turbocharger Heat Shield
12	Turbocharger Heat Shield Bolt
13	Turbocharger Coolant Return Pipe Bolt
14	Turbocharger Coolant Return Pipe Assembly
15	Turbocharger Coolant Return Pipe Bolt
16	Turbocharger Coolant Return Pipe Washer
17	Turbocharger Coolant Feed Pipe Bolt
18	Turbocharger Coolant Feed Pipe Washer
19	Turbocharger Coolant Feed Hose Clamp
20	Turbocharger Coolant Feed Hose
21	Turbocharger Coolant Feed Pipe Bolt
22	Turbocharger Coolant Feed Pipe Assembly
23	Turbocharger Coolant Feed Pipe Gasket
24	Turbocharger Oil Return Pipe Gasket
25	Turbocharger Oil Return Pipe Bolt
26	Turbocharger Oil Return Pipe Assembly
27	Turbocharger Oil Return Pipe Gasket
28	Turbocharger Wastegate Regulator Solenoid Valve Hose
29	Turbocharger Wastegate Regulator Solenoid Valve Hose Clamp
30	Turbocharger Wastegate Regulator Solenoid Valve
31	Turbocharger Wastegate Regulator Solenoid Valve Bolt
32	Turbocharger Wastegate Regulator Solenoid Valve Hose Clamp
33	Turbocharger Wastegate Regulator Solenoid Valve Hose
34	Turbocharger Air Bypass Valve Solenoid
35	Turbocharger Air Bypass Valve Solenoid Bolt
36	Turbocharger Wastegate Actuator Bolt
37	Turbocharger Wastegate Actuator Hose Clamp
38	Turbocharger Wastegate Actuator Hose
39	Turbocharger Wastegate Actuator
40	Turbocharger Wastegate Actuator Arm Retaining Clip
