Intake Manifold and Components
WARNING: This page is about a different variant/trim than selected.

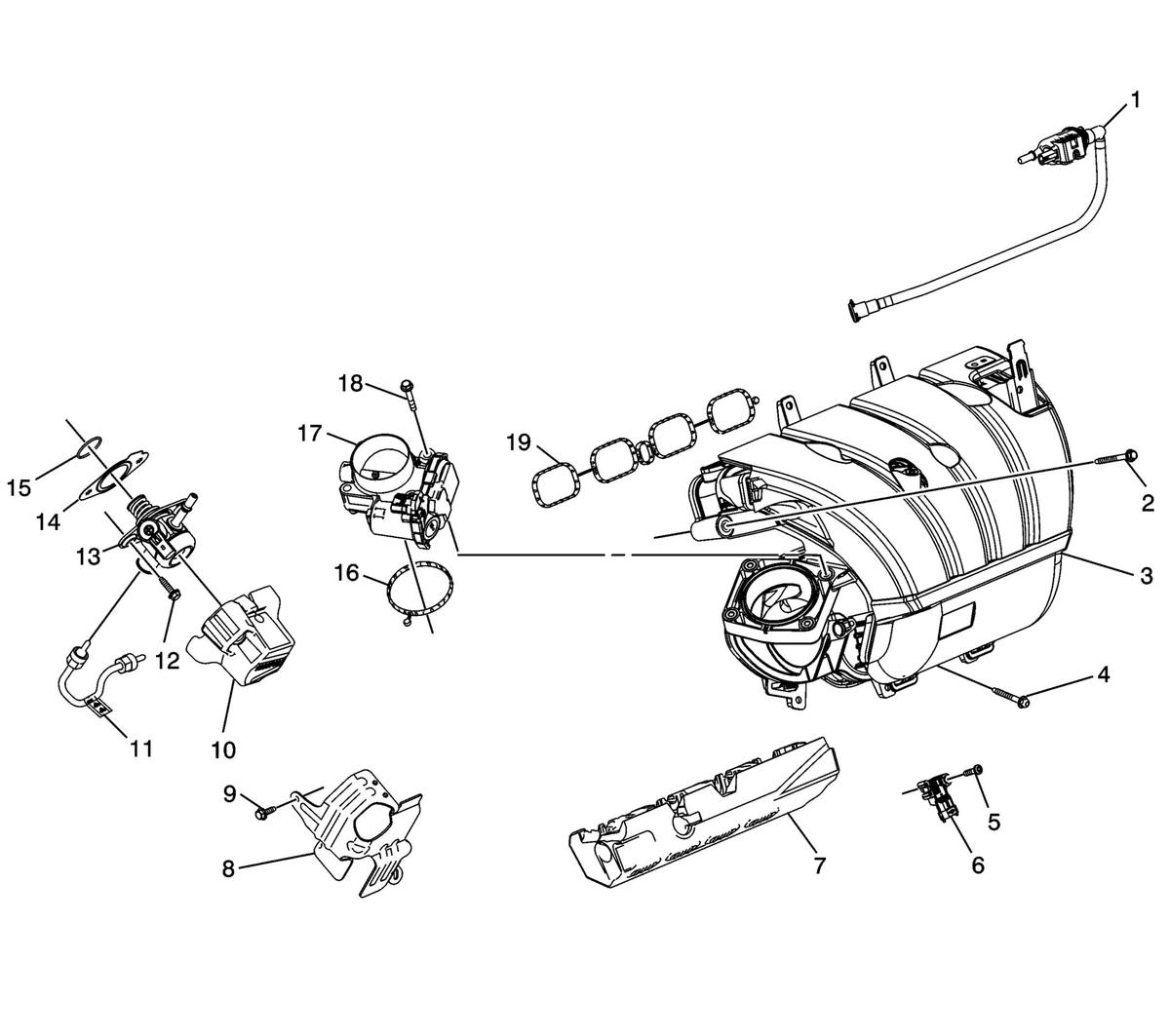

| Callout | Component Name |
|---|---|
| 1 | Evaporative Emission Canister Purge Valve Assembly |
| 2 | Intake Manifold Bolt |
| 3 | Intake Manifold |
| 4 | Intake Manifold Bolt |
| 5 | Manifold Absolute Pressure (MAP) Sensor Bolt |
| 6 | Manifold Absolute Pressure (MAP) Sensor |
| 7 | Fuel Rail Noise Shield |
| 8 | Fuel Pump Cover |
| 9 | Fuel Pump Cover Bolt |
| 10 | Fuel Pump Insulator |
| 11 | Fuel Feed Intermediate Pipe Assembly |
| 12 | Fuel Pump Bolt |
| 13 | Fuel Pump |
| 14 | Fuel Pump Housing Gasket |
| 15 | Fuel Pump Housing O-Ring Seal |
| 16 | Throttle Body Assembly Gasket |
| 17 | Throttle Body Assembly |
| 18 | Throttle Body Assembly Bolt |
| 19 | Intake Manifold Gasket |
