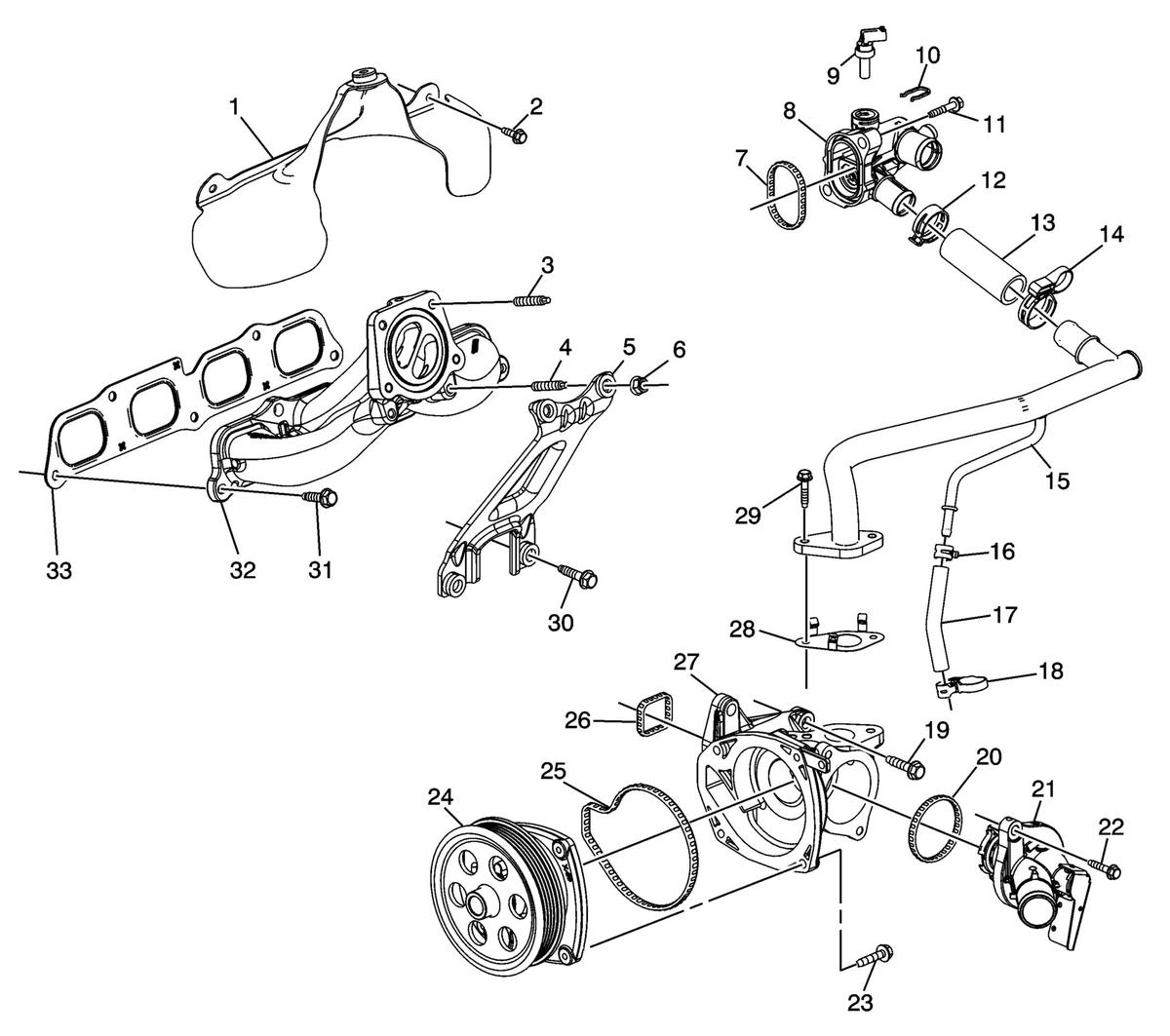

Exhaust Manifold and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Exhaust Manifold Heat Shield |
| 2 | Exhaust Manifold Heat Shield Bolt |
| 3 | Exhaust Manifold Stud |
| 4 | Exhaust Manifold Stud |
| 5 | Exhaust Manifold Brace |
| 6 | Exhaust Manifold Brace Nut |
| 7 | Water Outlet Gasket |
| 8 | Water Outlet |
| 9 | Engine Coolant Temperature Sensor |
| 10 | Engine Coolant Temperature Sensor Retainer |
| 11 | Water Outlet Bolt |
| 12 | Thermal Bypass Hose Clamp |
| 13 | Thermal Bypass Hose |
| 14 | Thermal Bypass Hose Clamp |
| 15 | Thermal Bypass Pipe |
| 16 | Engine Oil Cooler Coolant Outlet Hose Clamp |
| 17 | Engine Oil Cooler Coolant Outlet Hose |
| 18 | Engine Oil Cooler Coolant Outlet Hose Clamp |
| 19 | Water Pump Bolt |
| 20 | Engine Coolant Thermostat Housing Gasket |
| 21 | Engine Coolant Thermostat Housing |
| 22 | Engine Coolant Thermostat Housing Bolt |
| 23 | Water Pump Housing Bolt |
| 24 | Water Pump Front Housing |
| 25 | Water Pump Inlet Gasket |
| 26 | Water Pump Gasket |
| 27 | Water Pump Rear Housing |
| 28 | Thermal Bypass Pipe Gasket |
| 29 | Thermal Bypass Pipe Bolt |
| 30 | Exhaust Manifold Brace Bolt |
| 31 | Exhaust Manifold Bolt |
| 32 | Exhaust Manifold |
| 33 | Exhaust Manifold Gasket |
