Manual Shift Shaft and Park Release Lever Removal
WARNING: This page is about a different variant/trim than selected.

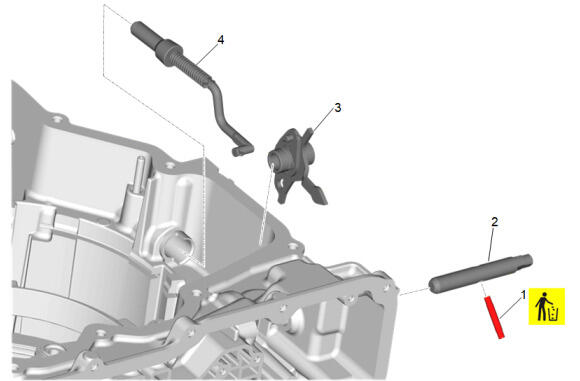

Courtesy of GENERAL MOTORS COMPANY Manual Shift Shaft and Park Release Lever Removal
| Callout |
Component Name |
| 1 |
Manual Shaft Detent Lever Hub Pin
NOTE:
Use a punch from the top to remove the pin (1) and discard.
|
| 2 |
Manual Shift Shaft |
| 3 |
Park Release Lever |
| 4 |
Park Pawl Actuator |
