Input, Reaction, and Output Carrier Assemble
WARNING: This page is about a different variant/trim than selected.

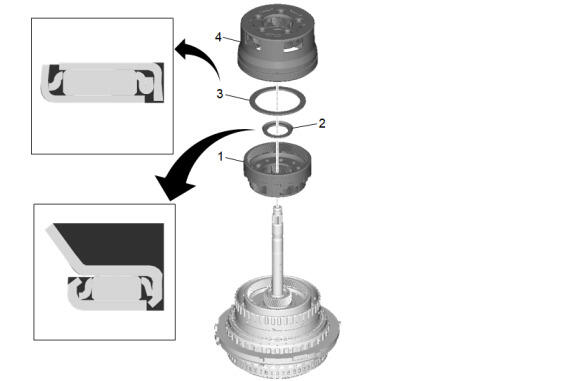

Courtesy of GENERAL MOTORS COMPANY Input, Reaction, and Output Carrier Assemble
| Callout |
Component Name |
| 1 |
Input Carrier
NOTE:
Ensure the carrier is seated properly.
|
| 2 |
Input Sun Gear Thrust Bearing |
| 3 |
Output Carrier Thrust Bearing |
| 4 |
Output Carrier
NOTE:
Ensure the carrier is seated properly.
|
