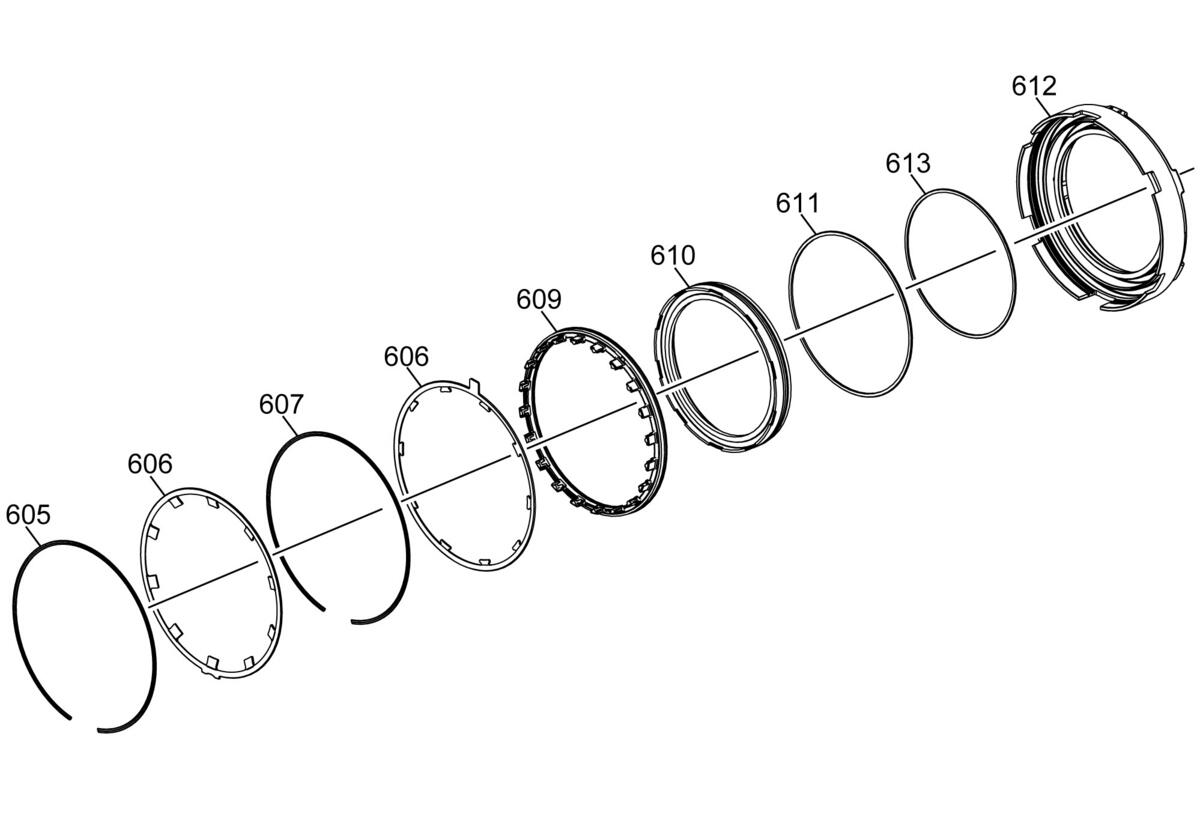

2-9 and 4 Clutch Piston Housing Assembly
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 605 |
3-8 Clutch Spring Retaining Ring |
| 606 |
4th Clutch Piston Return Spring |
| 607 |
4th Clutch Piston Retaining Ring |
| 609 |
2-9 Clutch Piston |
| 610 |
4th Clutch Piston |
| 611 |
4th Clutch Piston Outer Seal |
| 612 |
2-9 and 4 Clutch Piston Housing |
| 613 |
4th Clutch Piston Inner Seal |
