Control Valve Body - Control Valve Solenoid Side

WARNING: This page is about a different variant/trim than selected.

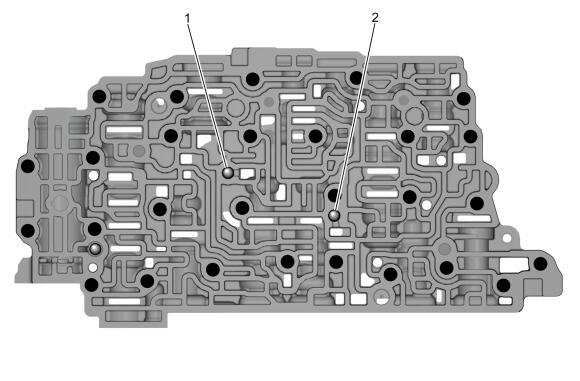

Fig 1: Control Valve Body Ball Check Valve Locations - Control Valve Solenoid Side
GM4603374Courtesy of GENERAL MOTORS COMPANY
Control Valve Body - Control Valve Solenoid Side

I.D. Input Oil Input Oil Output Oil
1 29 CL - 29 CL
2 123456 CL - 123456 CL
3 Park On - Park On
