Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Power Brake Booster Inlet Hose Connector Fitting. Refer to Power Brake Booster Inlet Hose Connector Fitting Replacement .
  2. Remove Camshaft Housing. Refer to Camshaft Housing Replacement .
    3. Fig 1: Timing Chain Upper Cover Bolts And Sleeve Bolt
    GM4421938Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 6 timing chain upper cover bolts (1).
  4. Remove the sleeve bolt (2).

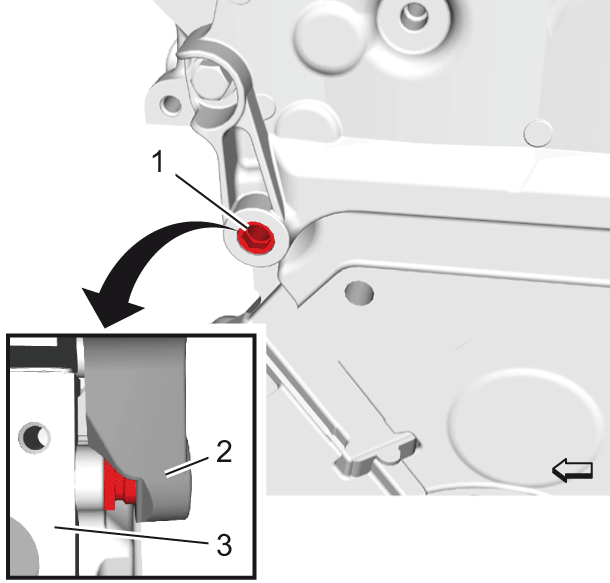

    5. Fig 2: Timing Chain Upper Cover, Sleeve And Engine Block
    GM4421939Courtesy of GENERAL MOTORS COMPANY
  5. Release the timing chain upper cover (2) from the engine block (3) by turning the sleeve (1) for a few turns in direction of arrow.
  6. If you there is a gap between the timing chain upper cover (2) and the engine block (3), stop turning the sleeve (1) and use a suitable tool to pry.
    7. Fig 3: Timing Chain Upper Cover
    GM4421940Courtesy of GENERAL MOTORS COMPANY
  7. Remove Timing Chain Upper Cover (1)
