Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing chain lower cover. Refer to Timing Chain Lower Cover Replacement .
  2. Remove the crankshaft pulley. Refer to Crankshaft Pulley Replacement .
    3. Fig 1: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  3. Install the 4 crankshaft pulley bolts (1).

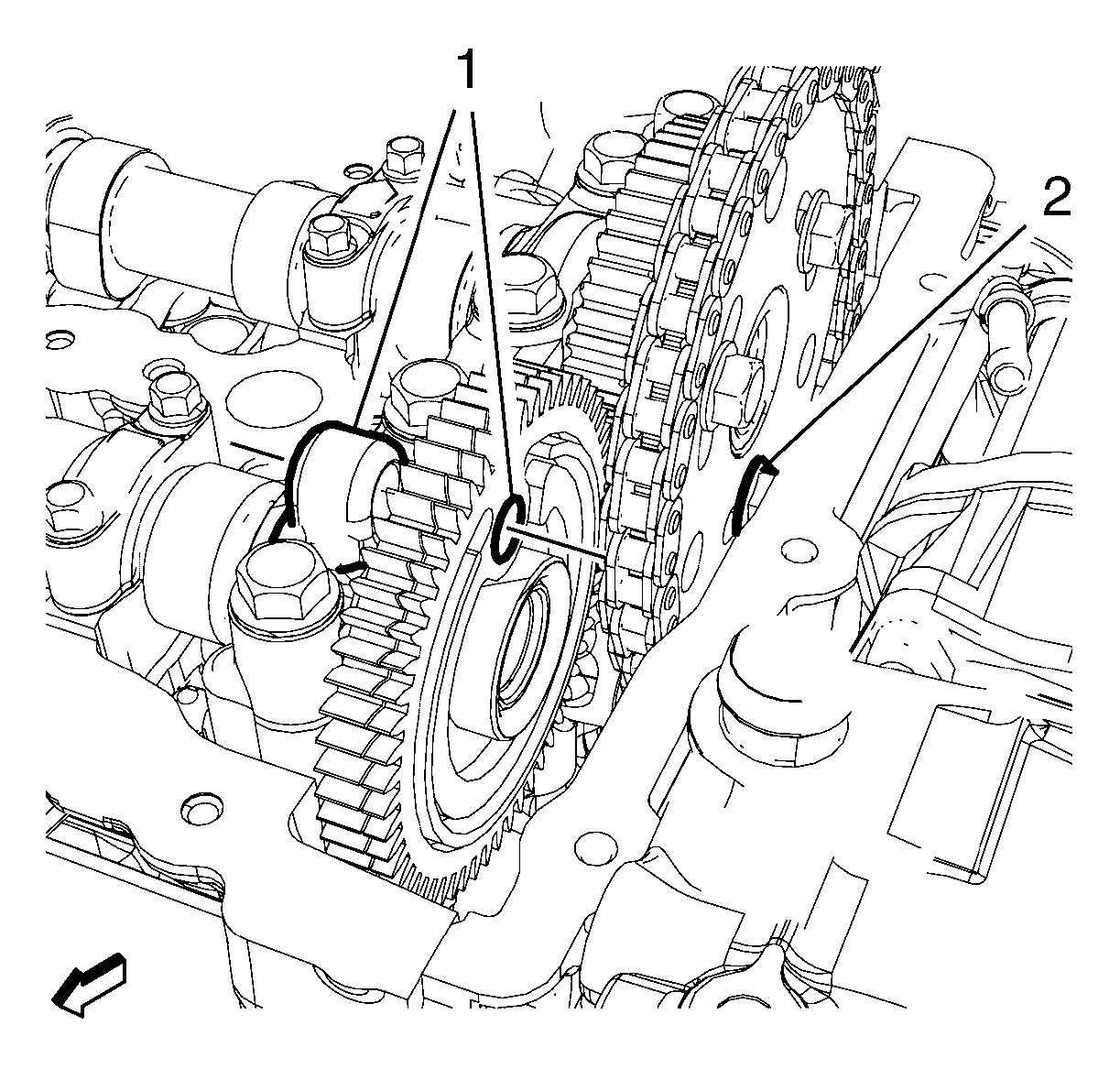

    4. Fig 2: Aligning Bores
    GM3252317Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If the bores not aligned turn the crankshaft at the crankshaft pulley bolts.

    Fig 3: Camshaft Fixing Tool
    GM3252356Courtesy of GENERAL MOTORS COMPANY
  4. Check if the bores (1) are aligned.

    Turn the exhaust camshaft at the hexagon so far if the EN-51143  fixing tool (1) can be installed.

  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    6. Fig 4: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 4 crankshaft pulley bolts (1).
    7. Fig 5: Crankshaft Fixing Tool
    GM3252326Courtesy of GENERAL MOTORS COMPANY
  7. Install EN-51140  fixing tool (2).
  8. Install the fixing pin into the engine block bore (1) and tighten the 2 bolts (3).
  9. If the EN-51140  fixing tool can not installed. Refer to Camshaft Timing Chain Adjustment .
  10. Lower the vehicle.
    11. Fig 6: Timing Chain Tensioner And Pin
    GM3282671Courtesy of GENERAL MOTORS COMPANY
  11. Tension the timing chain tensioner (1) in arrow direction.
  12. Install the EN-50513  pin (2).
    13. Fig 7: Timing Chain Lower Guide And Bolts
    GM3282673Courtesy of GENERAL MOTORS COMPANY
  13. Remove the 2 timing chain lower guide bolts (2).
  14. Remove the timing chain lower guide (1).
