Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE:

    Before installing the timing chain lower cover, check the components of the timing chain system for damage and wear.

  1. Check the components of the timing chain system for damage and wear:
    • Timing chain guides with plastic attachment
    • Timing chain tensioner and timing chain tensioner shoe with plastic attachment
    • Timing chain and all timing chain sprockets
    • Oil pump sprocket
    • Oil pump drive chain tensioner
  2. Clean all sealing surfaces.

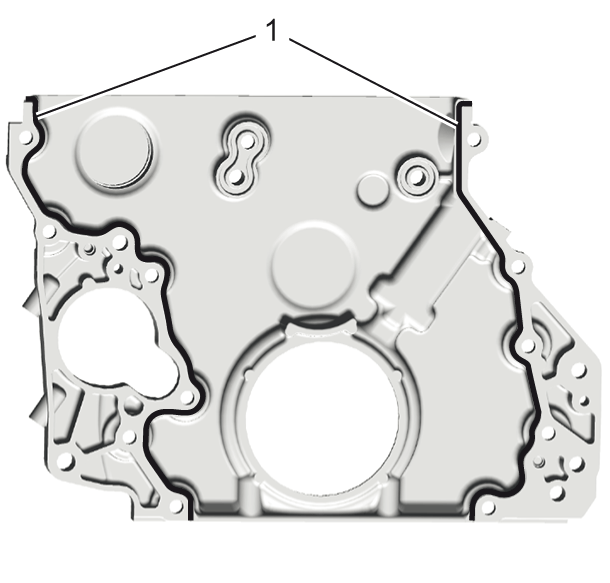

    3. Fig 1: Silicone Sealing Compound Application Area
    GM4421929Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The complete installation procedure of the timing chain lower cover should be done in 20 minutes.

  3. Apply silicone sealing compound (1) to the timing chain lower cover sealing surface. The thickness of the sealing bead should be 2.0 - 3.0 mm (0.079 - 0.118 in)

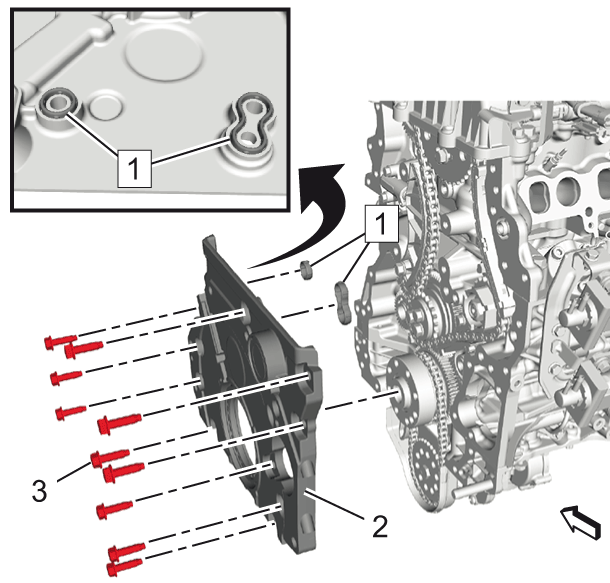

    4. Fig 2: Timing Chain Lower Cover, Bolts And Gaskets
    GM4421928Courtesy of GENERAL MOTORS COMPANY
  4. Install NEW gaskets. (3) (Qty: 2)
  5. Install Timing Chain Lower Cover (2)
  6. Install the 11 timing chain lower cover bolts (1).

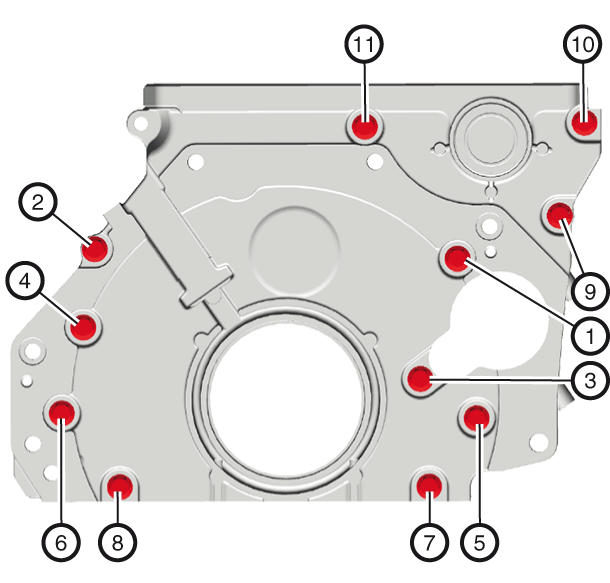

    7. Fig 3: Timing Chain Lower Cover Bolt Tightening Sequence
    GM4421930Courtesy of GENERAL MOTORS COMPANY
  7. Tighten the bolts in the sequence shown. (Qty: 11) to 25 N.m (18 lb ft).

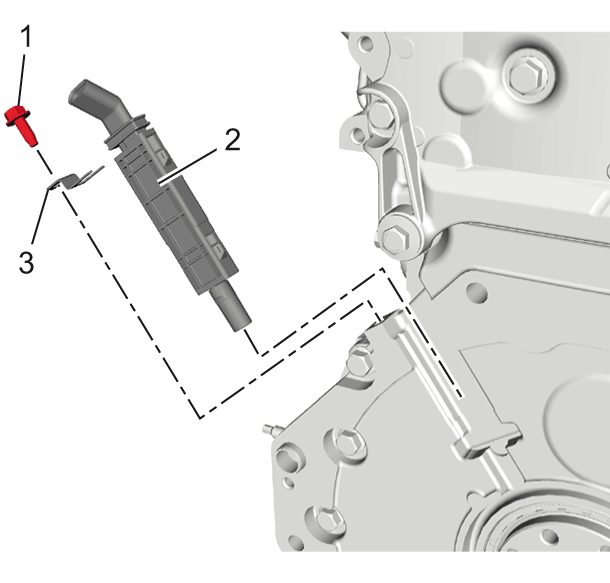

    8. Fig 4: Crankshaft Position Sensor, Bolt And Retainer Spring
    GM4421925Courtesy of GENERAL MOTORS COMPANY
  8. Install Crankshaft Position Sensor (2)
  9. Install the crankshaft position sensor retainer spring (3).
  10. Install and tighten Crankshaft Position Sensor Bolt (1) to 10 N.m (89 lb in)
  11. Install Crankshaft Rear Oil Seal. Refer to Crankshaft Rear Oil Seal Replacement
  12. Install Crankshaft Position Sensor Reluctor Ring. Refer to Crankshaft Position Sensor Reluctor Ring Replacement

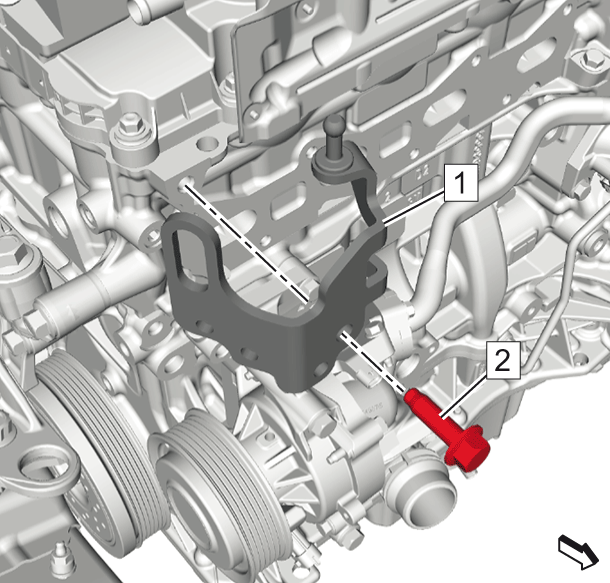

    13. Fig 5: Engine Lift Bracket And Bolt
    GM4421927Courtesy of GENERAL MOTORS COMPANY
  13. Remove Engine Lift Bracket Bolt (2)
  14. Remove Engine Lift Bracket-Right Side (1)

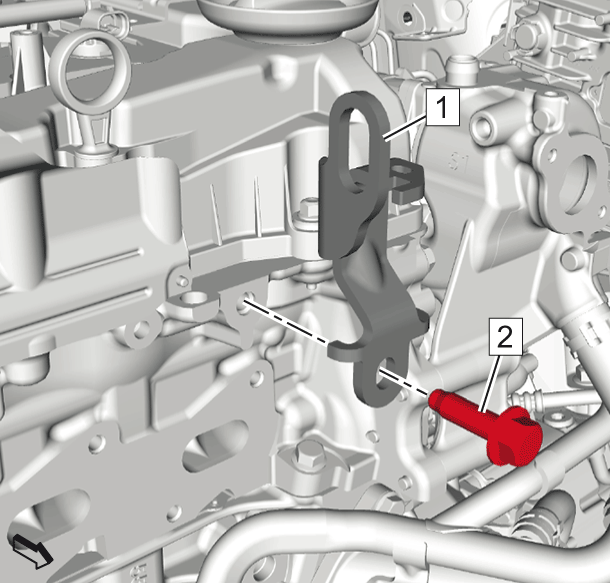

    15. Fig 6: Engine Lift Bracket And Bolt
    GM4421926Courtesy of GENERAL MOTORS COMPANY
  15. Remove Engine Lift Bracket Bolt (2)
  16. Remove Engine Lift Bracket-Left Side (1)
  17. Install Oil Pan. Refer to Oil Pan Replacement
  18. Install Timing Chain Upper Cover. Refer to Timing Chain Upper Cover Replacement
