Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the camshaft timing chain. Refer to Camshaft Timing Chain Replacement

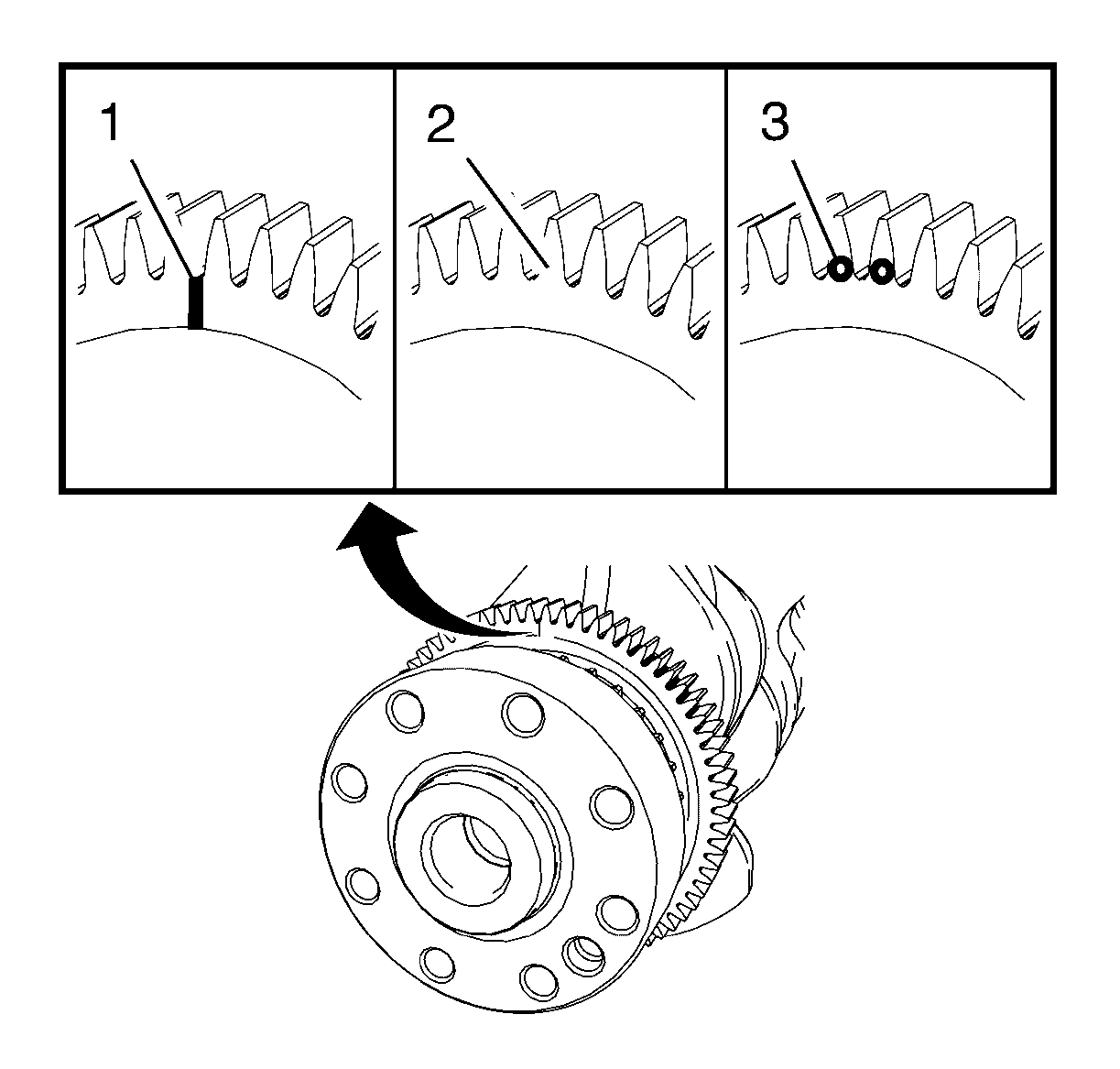

    2. Fig 1: Crankshaft Sprocket Marks
    GM3655371Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Depending on the crankshaft, two different marks (1) and (3) or none (2) can be located on the crankshaft sprocket.

  2. Mark the crankshaft sprocket align with the timing chain idler sprocket if there is no mark.
    3. Fig 2: Intermediate Drive Gear Fixing Tool And Timing Chain Idler Sprocket
    GM3282696Courtesy of GENERAL MOTORS COMPANY
  3. Install the EN-51141  fixing tool (1) to the timing chain idler sprocket (2).
    4. Fig 3: Timing Chain Idler Sprocket, Bolts And Intermediate Drive Gear Fixing Tool
    GM4886578Courtesy of GENERAL MOTORS COMPANY
  4. Remove the 3 timing chain idler sprocket bolts (1).
    5. NOTE:

    If the timing chain idler sprocket will be reused, do not remove the EN-51141  fixing tool (2).

  5. Remove the timing chain idler sprocket (3) from the engine block.
