Installation Procedure

WARNING: This page is about a different variant/trim than selected.

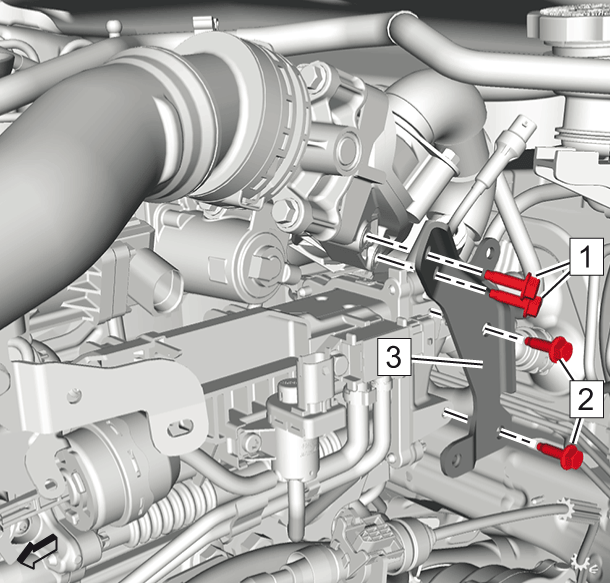

    Fig 1: Intake Manifold Brace And Bolts
    GM4376993Courtesy of GENERAL MOTORS COMPANY
  1. Install Intake Manifold Brace (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install and tighten Intake Manifold Brace Bolts (1, 2) (Qty: 4) to 10 N.m (89 lb in)

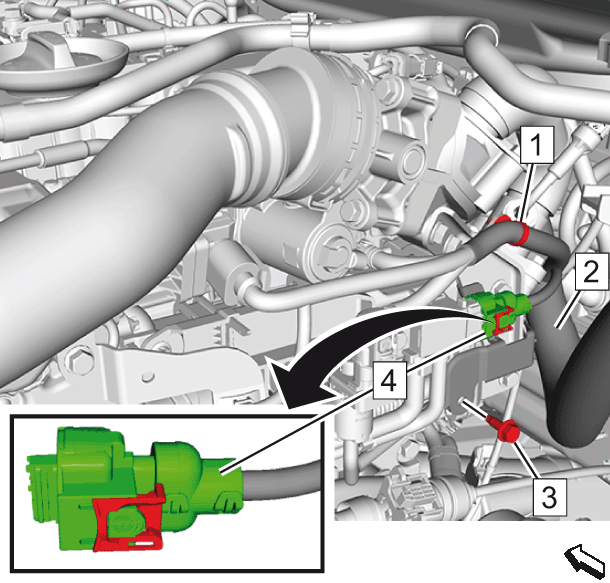

    3. Fig 2: Engine Wiring Harness, Bracket, Bolt, Retainer And Electrical Connector
    GM4376992Courtesy of GENERAL MOTORS COMPANY
  3. Reposition Engine Wiring Harness (2)
  4. Install and tighten Engine Wiring Harness Bracket Bolt (3) to 10 N.m (89 lb in)
  5. Install Wiring Harness Retainer (1)
  6. Connect Electrical Connector (4)
