Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
  2. Remove Throttle Body Assembly. Refer to Throttle Body Assembly Replacement
  3. Remove Camshaft Housing. Refer to Camshaft Housing Replacement
  4. Remove Crankshaft Pulley. Refer to Crankshaft Pulley Replacement
  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
    6. Fig 1: Aligning Bores
    GM3252317Courtesy of GENERAL MOTORS COMPANY
  6. Check the Top Dead Center (TDC) position to locate the correct camshaft sprocket bolt (2) that is to be removed first.
  7. Check if the bores (1) are aligned.
  8. If the bores are aligned, raise the vehicle.
    9. Fig 2: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  9. Install the 4 crankshaft pulley bolts (1).
  10. Rotate the crankshaft 360 degrees in direction of arrow. Use a suitable flat bladed tool.
  11. Lower the vehicle.
    12. Fig 3: Camshaft Sprocket And Bolt
    GM3252319Courtesy of GENERAL MOTORS COMPANY
  12. Remove the camshaft sprocket bolt (2) from the intake camshaft sprocket (1). Counterhold with a wrench at the camshaft hexagon.
  13. Raise the vehicle.
    14. Fig 4: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  14. Rotate the crankshaft 360 degrees in direction of arrow. Use a suitable flat bladed tool at the 4 crankshaft pulley bolts (1).
  15. Remove the 4 crankshaft pulley bolts (1).
    16. Fig 5: Crankshaft Fixing Tool
    GM3252326Courtesy of GENERAL MOTORS COMPANY
  16. Install the EN-51140  fixing tool (2).
  17. Install the fixing pin into the engine block bore (1) and tighten the 2 bolts (3).
  18. Lower the vehicle.
    19. Fig 6: Camshaft Bearing Rear Cap And Bolts
    GM3252344Courtesy of GENERAL MOTORS COMPANY
  19. Remove the 4 camshaft bearing rear cap bolts (1).
  20. Remove the camshaft bearing rear cap (2).

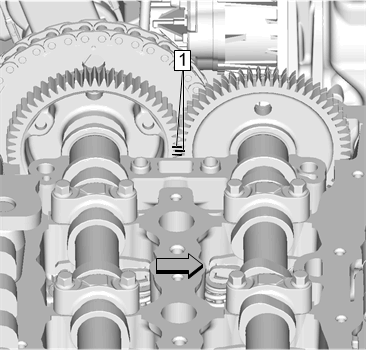

    21. Fig 7: Mark Backside Of Both Cam Gears With Paint Marks
    GM4896315Courtesy of GENERAL MOTORS COMPANY
  21. Mark the backside of both cam gears with paint marks (1).
    22. Fig 8: Camshaft Sprocket And Bolt
    GM3252360Courtesy of GENERAL MOTORS COMPANY
  22. Remove the camshaft sprocket bolt (2) from the camshaft sprocket (1). Counterhold with a wrench at the camshaft hexagon.
    23. Fig 9: Timing Chain Camshaft Sprocket Fixing Tool
    GM3252337Courtesy of GENERAL MOTORS COMPANY
  23. Install the EN-51188  fixing tool (2) to fix the camshaft sprocket (1).
  24. Install the 2 bolts (3).
    25. Fig 10: Camshaft Sprocket And Bolts
    GM3252338Courtesy of GENERAL MOTORS COMPANY
  25. Remove the camshaft sprocket bolt (2) from the camshaft sprocket (1). Counterhold with a wrench at the camshaft hexagon.

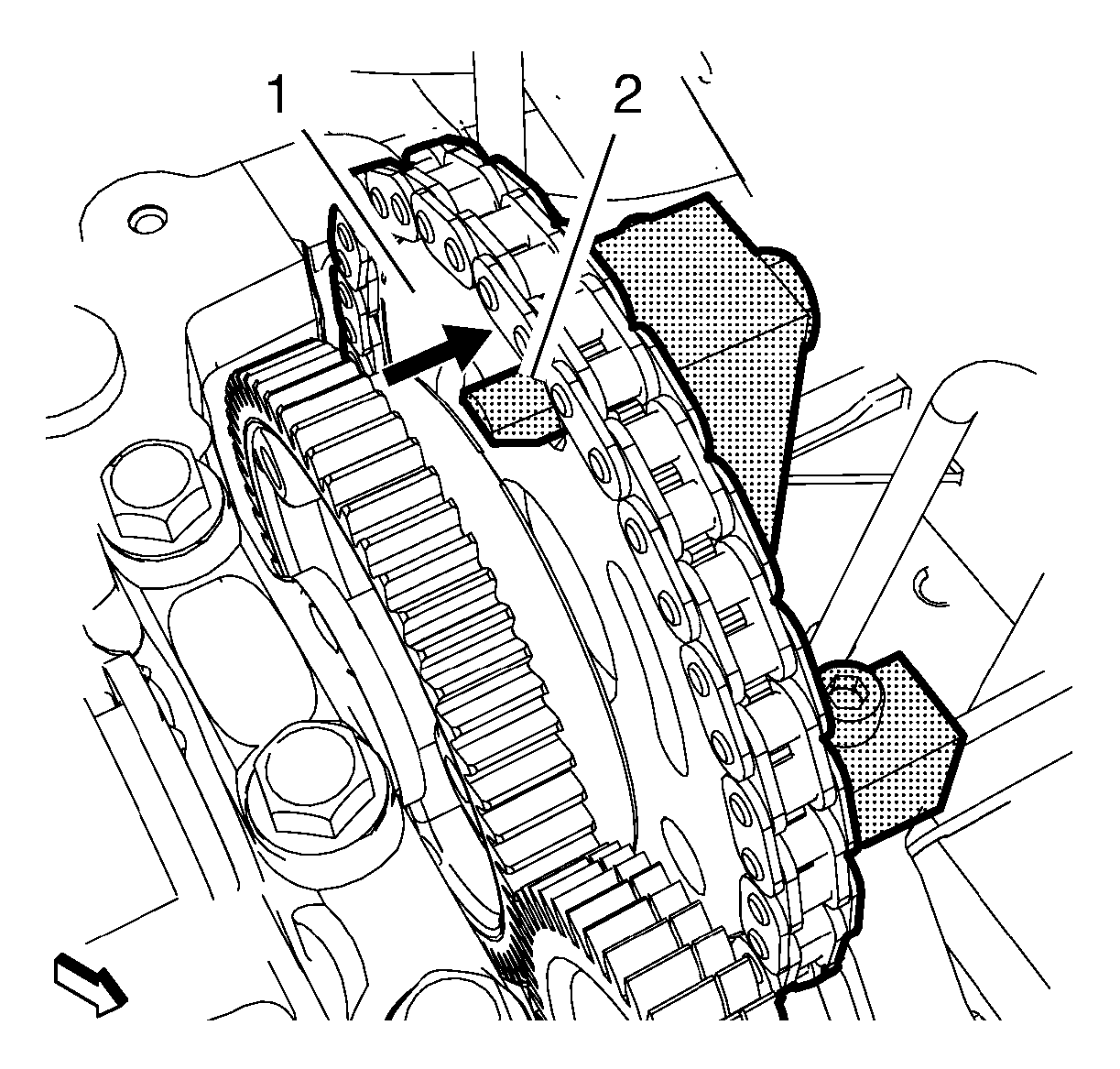

    26. Fig 11: Camshaft Sprocket Over Pin Of Timing Chain Camshaft Sprocket Fixing Tool
    GM3252339Courtesy of GENERAL MOTORS COMPANY
  26. Slide the camshaft sprocket (1) over the pin (2) of the EN-51188  fixing tool in arrow direction.
    27. Fig 12: Split Intake Camshaft Sprocket Fixing Tool
    GM3252359Courtesy of GENERAL MOTORS COMPANY
  27. Install the EN-50509  fixing tool (1) to the exhaust camshaft sprocket (2).

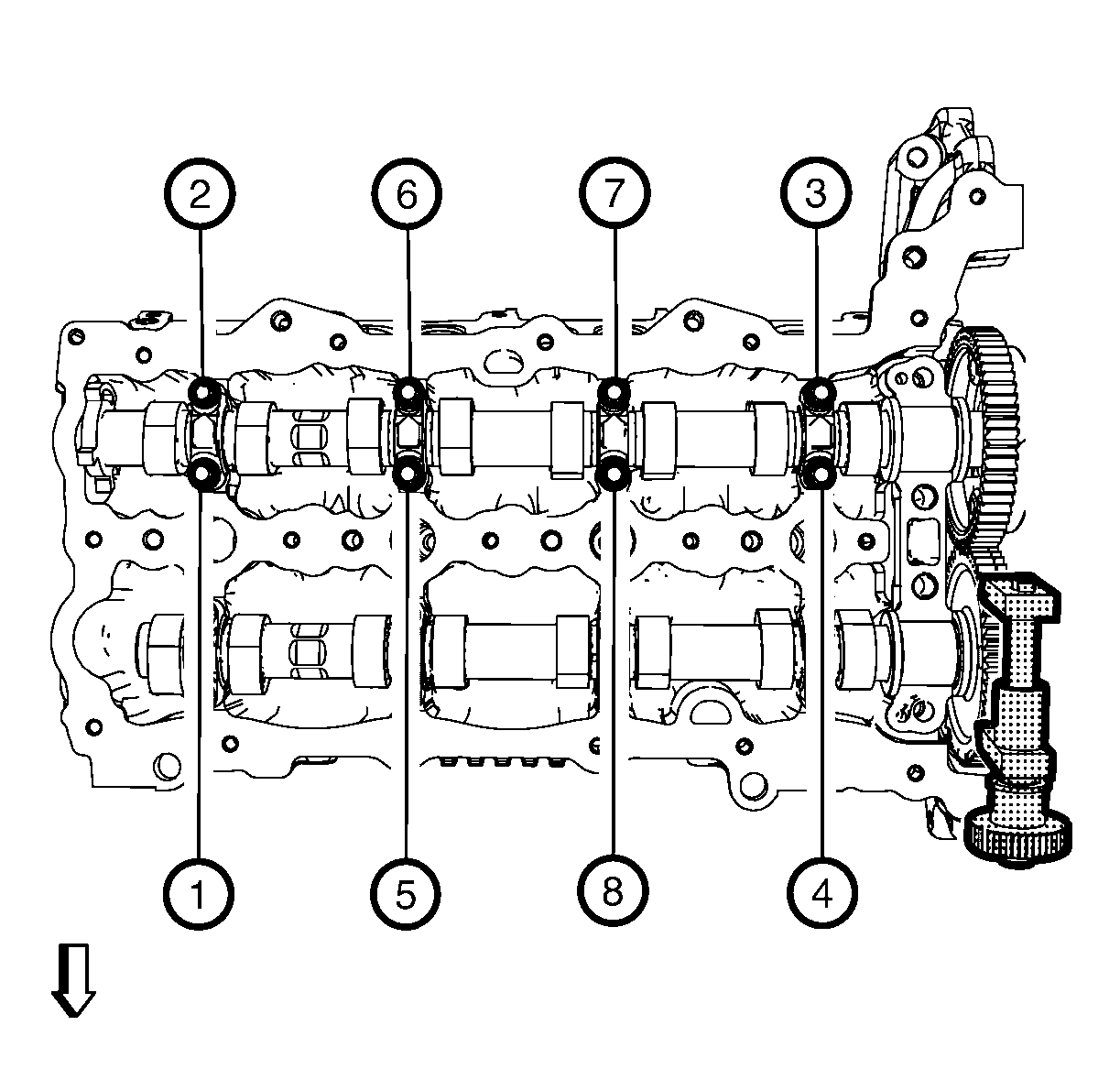

    28. Fig 13: Intake Camshaft Bearing Cap Bolt Loosening Sequence
    GM3252346Courtesy of GENERAL MOTORS COMPANY
  28. Loosen the 8 intake camshaft bearing cap bolts in sequence as shown.
    29. Fig 14: Intake Camshaft Bearing Caps And Bolts
    GM4896406Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the direction of the arrows (3) on the camshaft bearing caps pointing to outside of the cylinder head.

  29. Remove the 8 intake camshaft bearing cap bolts (1).
  30. Remove the 4 intake camshaft bearing caps (2) and lay aside in the order as they were removed.

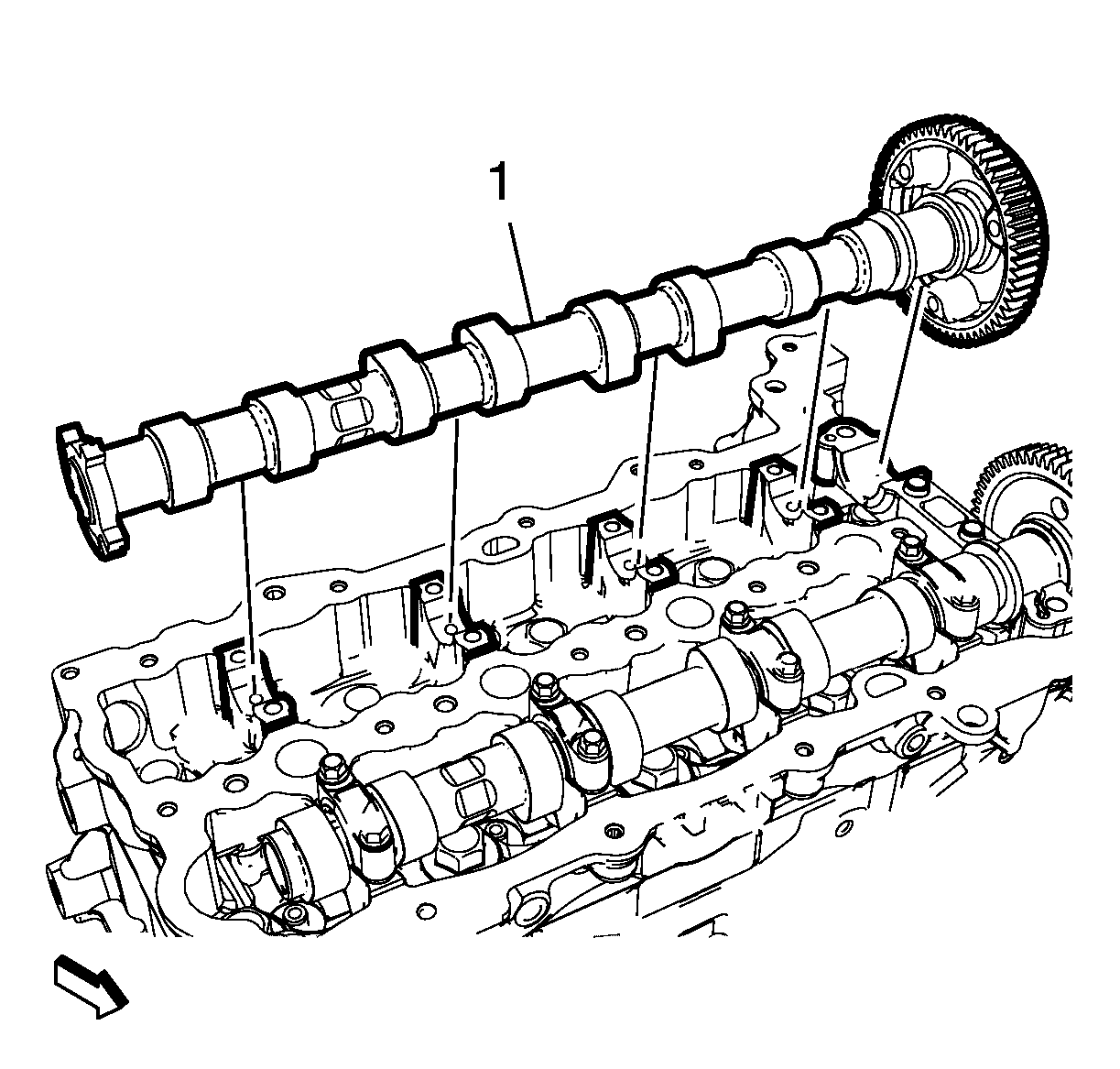

    31. Fig 15: Intake Camshaft
    GM3252352Courtesy of GENERAL MOTORS COMPANY
  31. Remove the intake camshaft (1).
  32. Cover the timing case with a lint free cloth.
