Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE:

    Before installing the intake camshaft, check the components of the timing chain system for damage and wear.

  1. Check the components of the timing chain system for damage and wear:
    • Timing chain guides with plastic attachment
    • Timing chain tensioner and timing chain tensioner shoe with plastic attachment
    • Timing chain and all timing chain sprockets
    • Oil pump sprocket
    • Oil pump drive chain tensioner

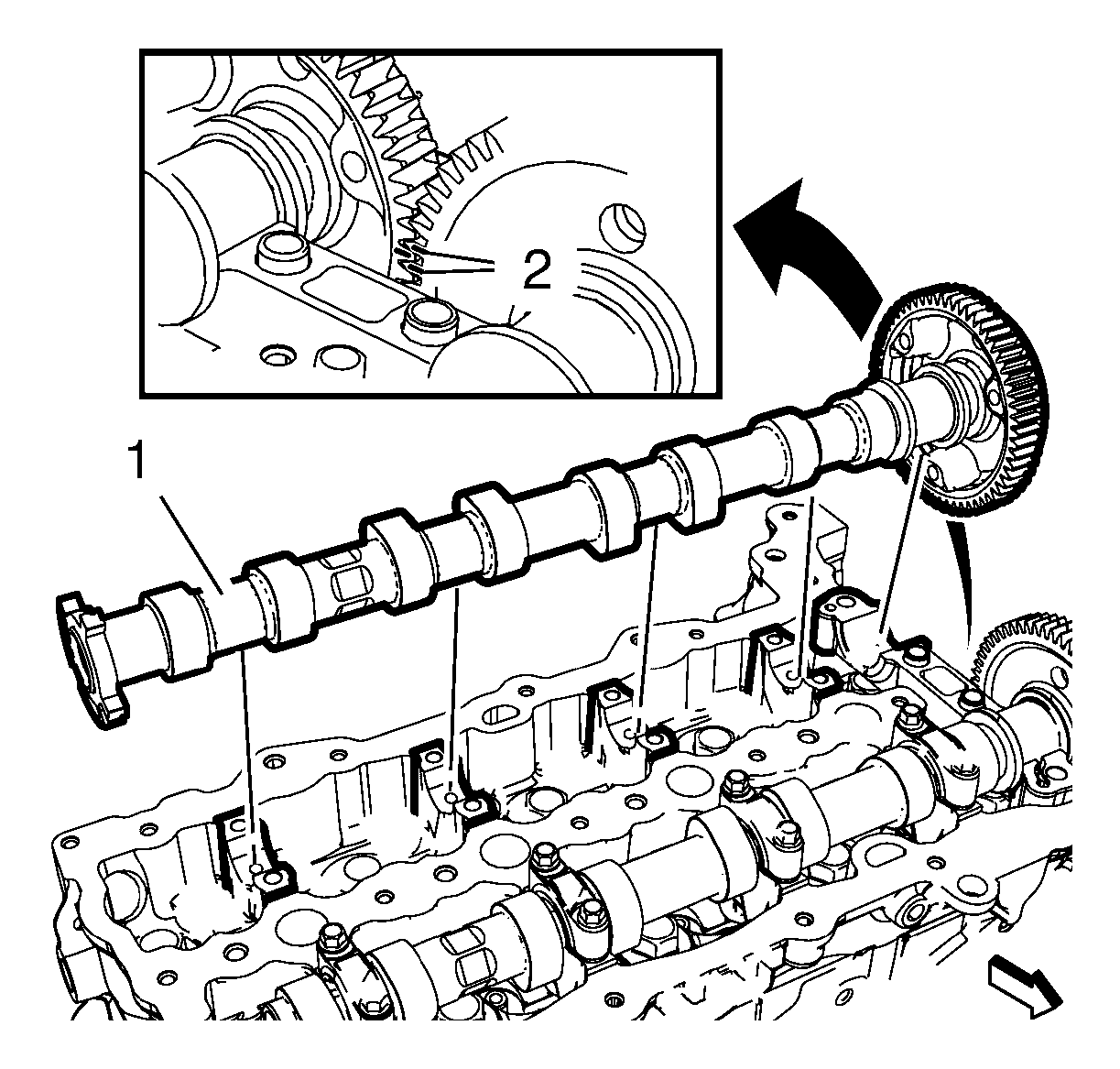

    2. Fig 1: Intake Camshaft With Camshaft Sprocket Marks Aligned
    GM3252366Courtesy of GENERAL MOTORS COMPANY
  2. Coat all bearing surfaces with engine oil.
    3. NOTE:

    Ensure the marks (2) of the camshaft sprocket are aligned.

  3. Install the intake camshaft (1).

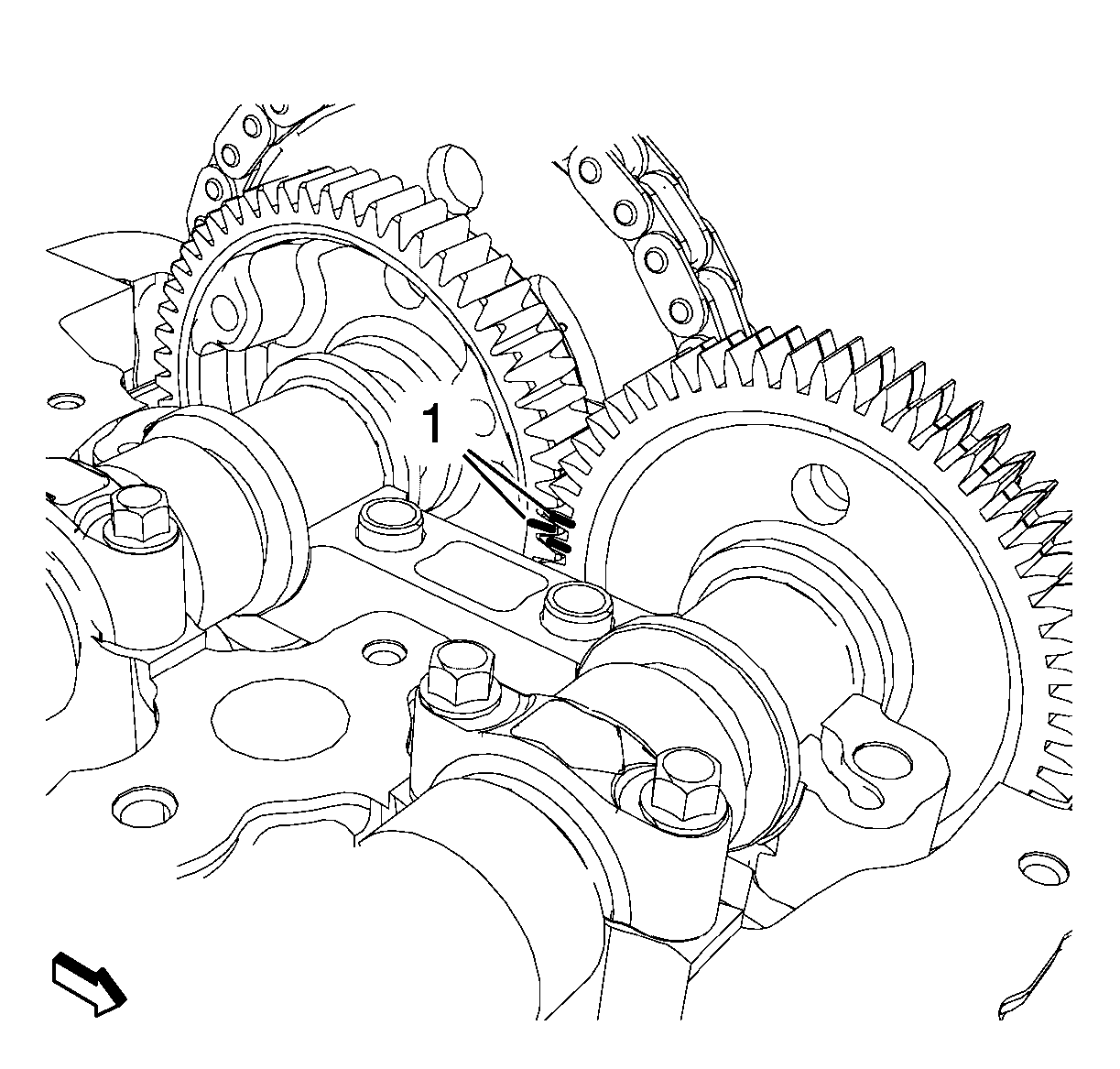

    4. Fig 2: Marking Exhaust Camshaft Sprocket And Intake Camshaft Sprocket With Paint Marks
    GM3252332Courtesy of GENERAL MOTORS COMPANY
  4. Check the marks (1) of the camshaft sprockets to ensure they are aligned.

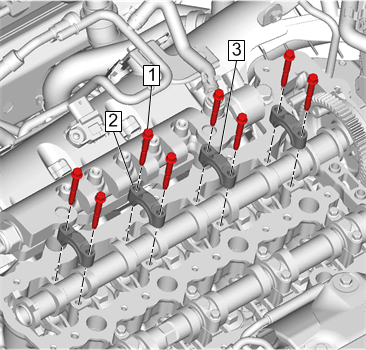

    5. Fig 3: Intake Camshaft Bearing Caps And Bolts
    GM4896406Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the direction of the arrows (3) on the camshaft bearing caps pointing to outside of the cylinder head.

  5. Install the 4 intake camshaft bearing caps (2) in the order as they were removed.
  6. Install the 8 intake camshaft bearing cap bolts (1).

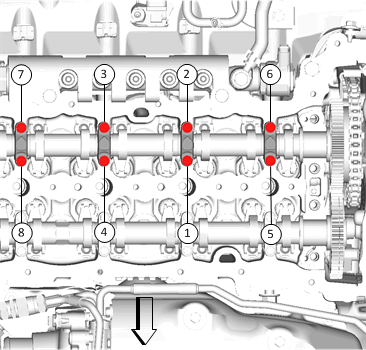

    7. Fig 4: Intake Camshaft Bearing Cap Bolt Tightening Sequence
    GM4896408Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  7. Tighten the 8 intake camshaft bearing cap bolts in sequence as shown to 10 N.m (89 lb in).

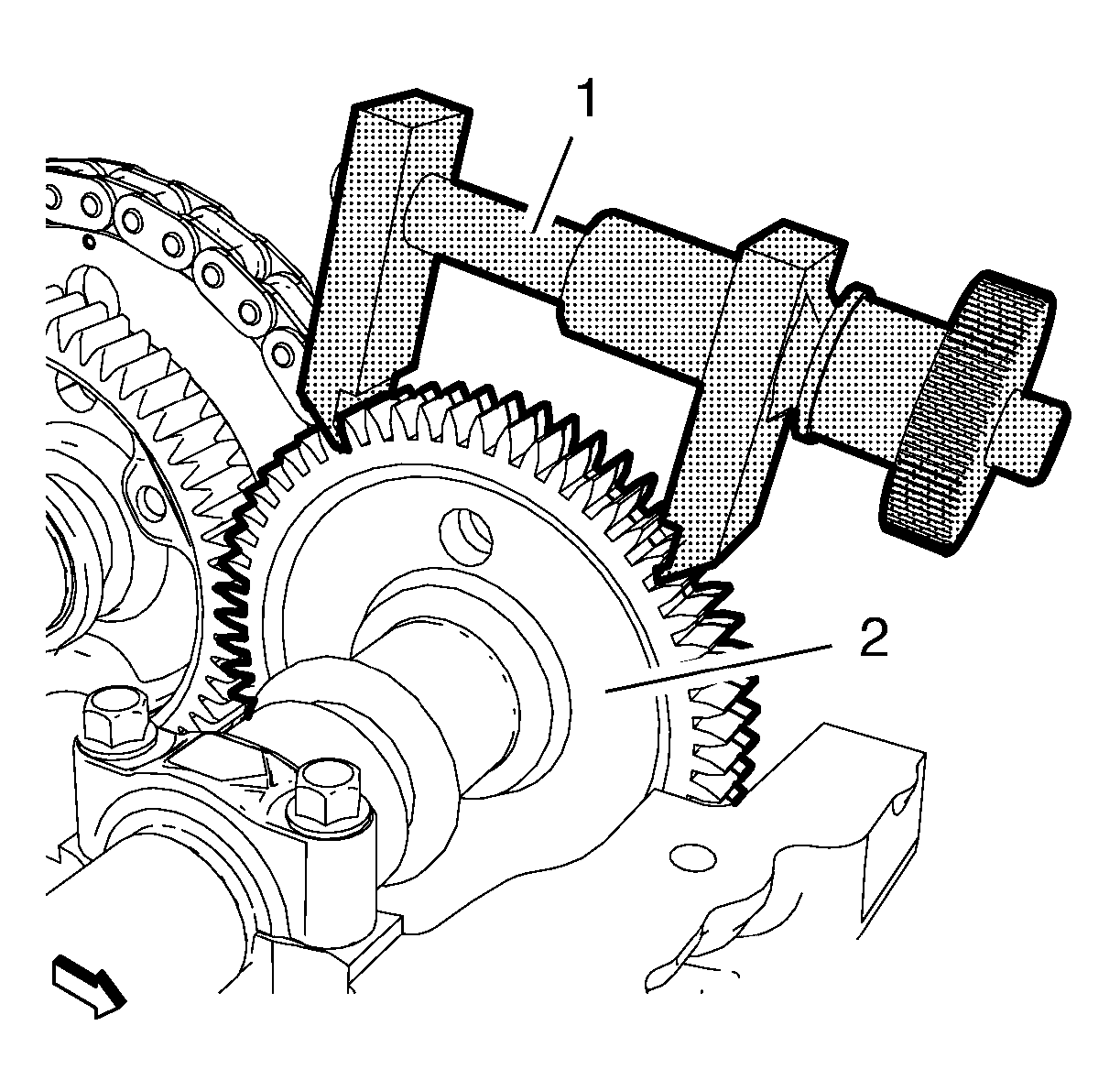

    8. Fig 5: Split Intake Camshaft Sprocket Fixing Tool
    GM3252359Courtesy of GENERAL MOTORS COMPANY
  8. Remove the EN-50509  fixing tool (1) or the transport lock from the exhaust camshaft sprocket (2).

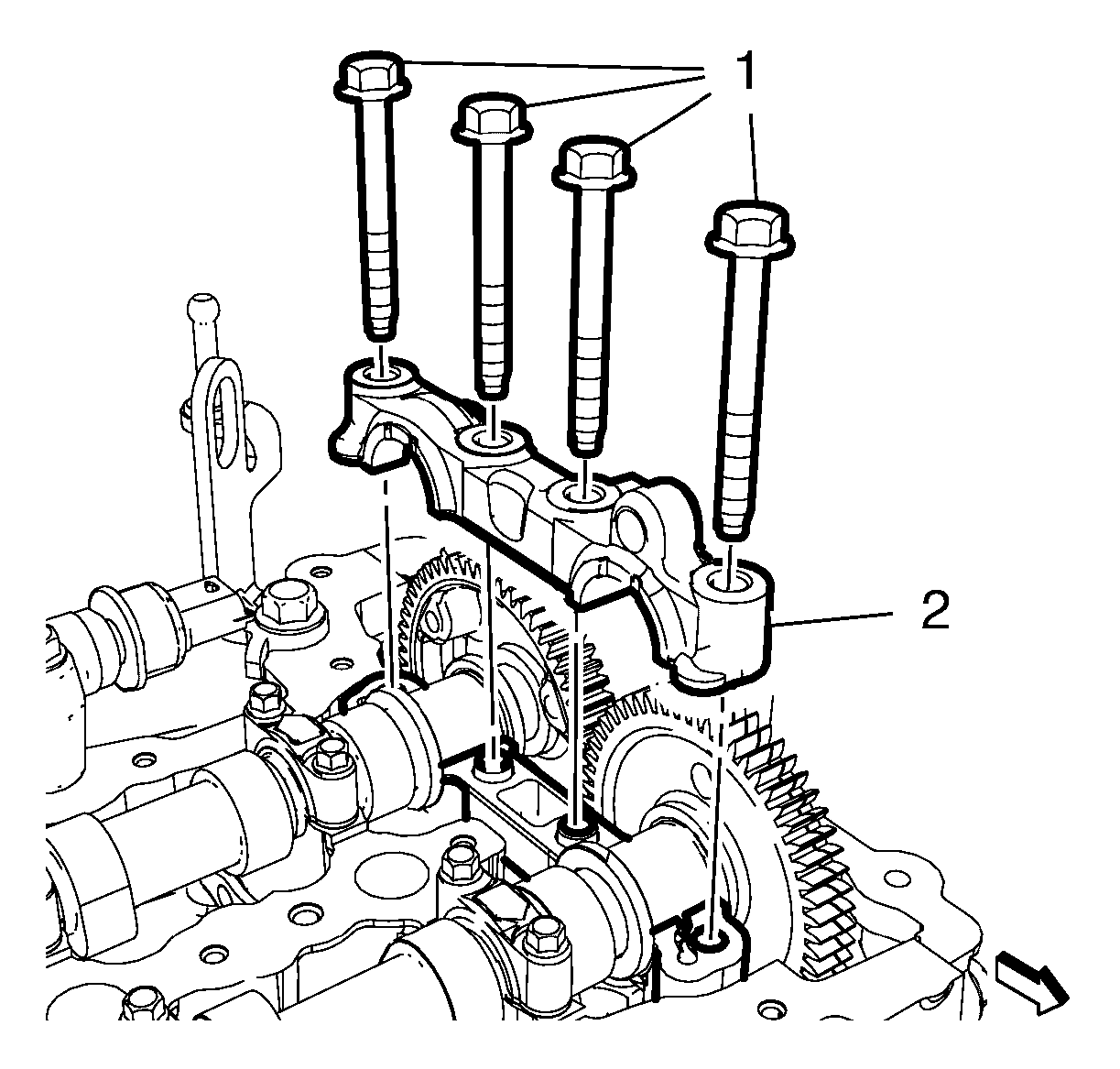

    9. Fig 6: Camshaft Bearing Rear Cap And Bolts
    GM3252344Courtesy of GENERAL MOTORS COMPANY
  9. Coat all bearing surfaces with engine oil.
  10. Install the camshaft bearing rear cap (2).
  11. Install the 4 camshaft bearing rear cap bolts (1).

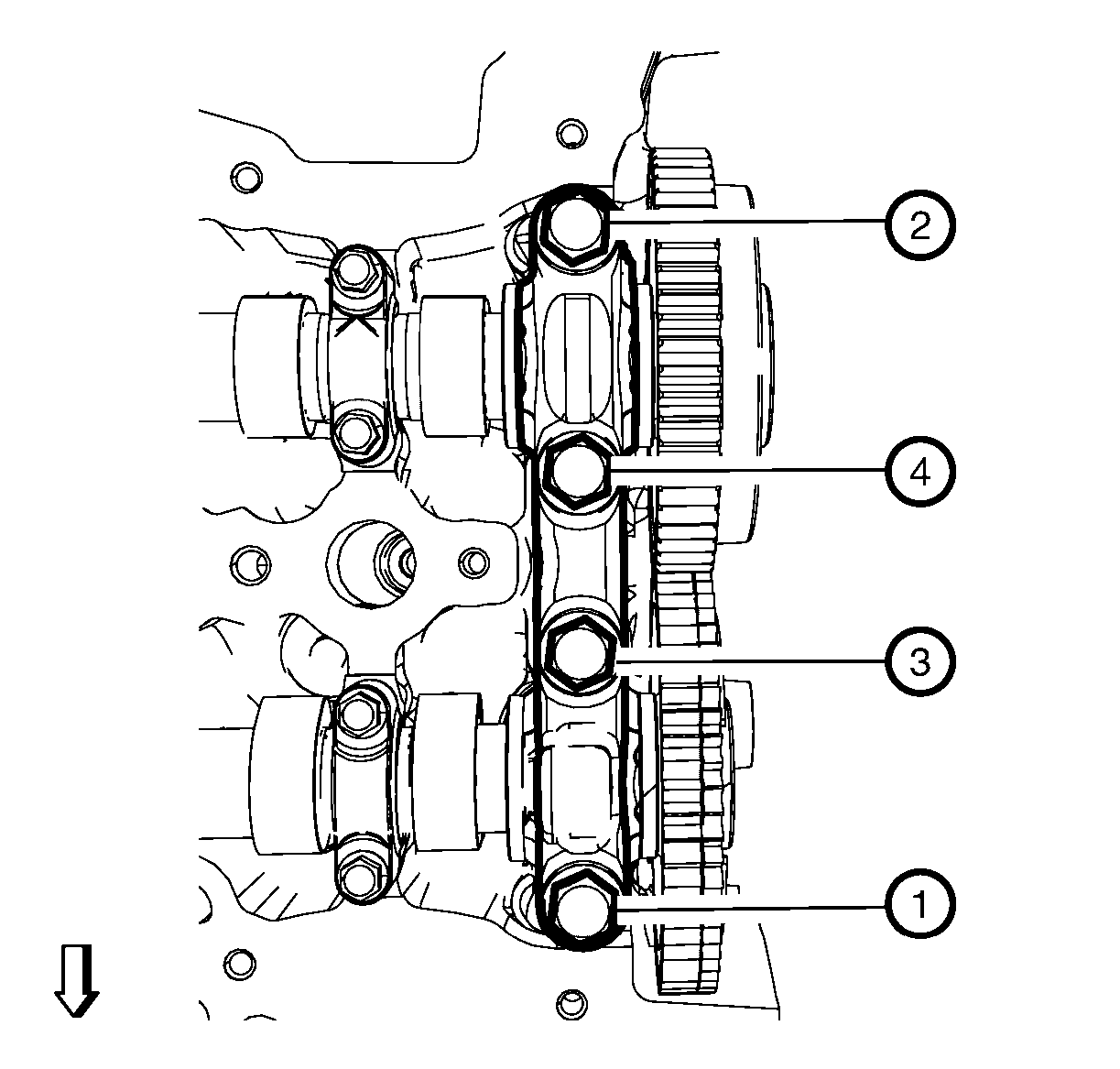

    12. Fig 7: Camshaft Rear Cap Bolt Tightening Sequence
    GM3252355Courtesy of GENERAL MOTORS COMPANY
  12. Tighten the 4 camshaft rear cap bolts in sequence as shown to 25 N.m (18 lb ft).
    13. Fig 8: Camshaft Fixing Tool
    GM3252356Courtesy of GENERAL MOTORS COMPANY
  13. To check for proper alignment, install the EN-51143  fixing tool (1), by carefully turning the hexagon of the camshaft.

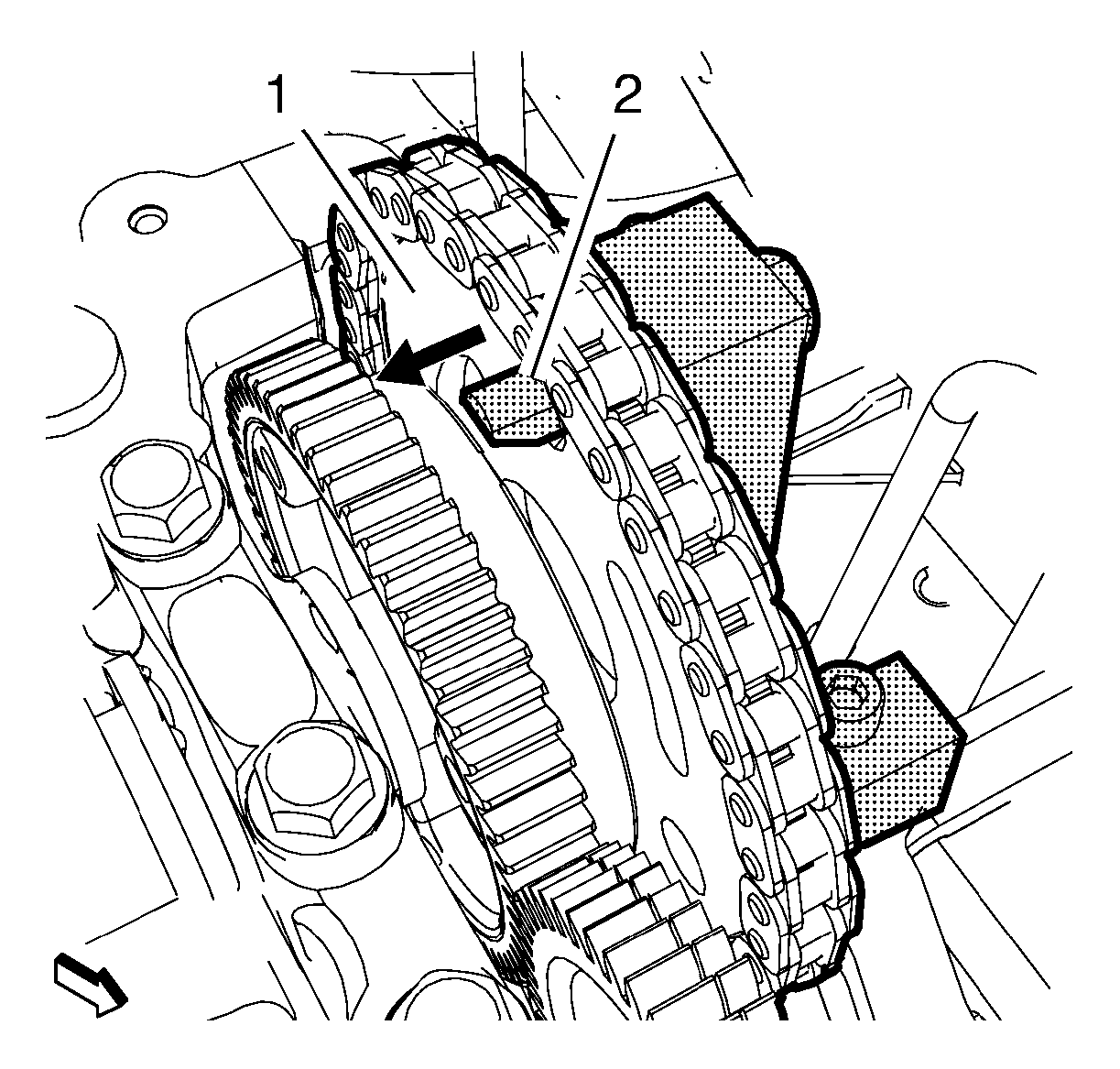

    14. Fig 9: Camshaft Sprocket Over Pin Of Timing Chain Camshaft Sprocket Fixing Tool
    GM3252340Courtesy of GENERAL MOTORS COMPANY
  14. Slide the camshaft sprocket (1) over the pin (2) of the EN-51188  fixing tool in arrow direction.

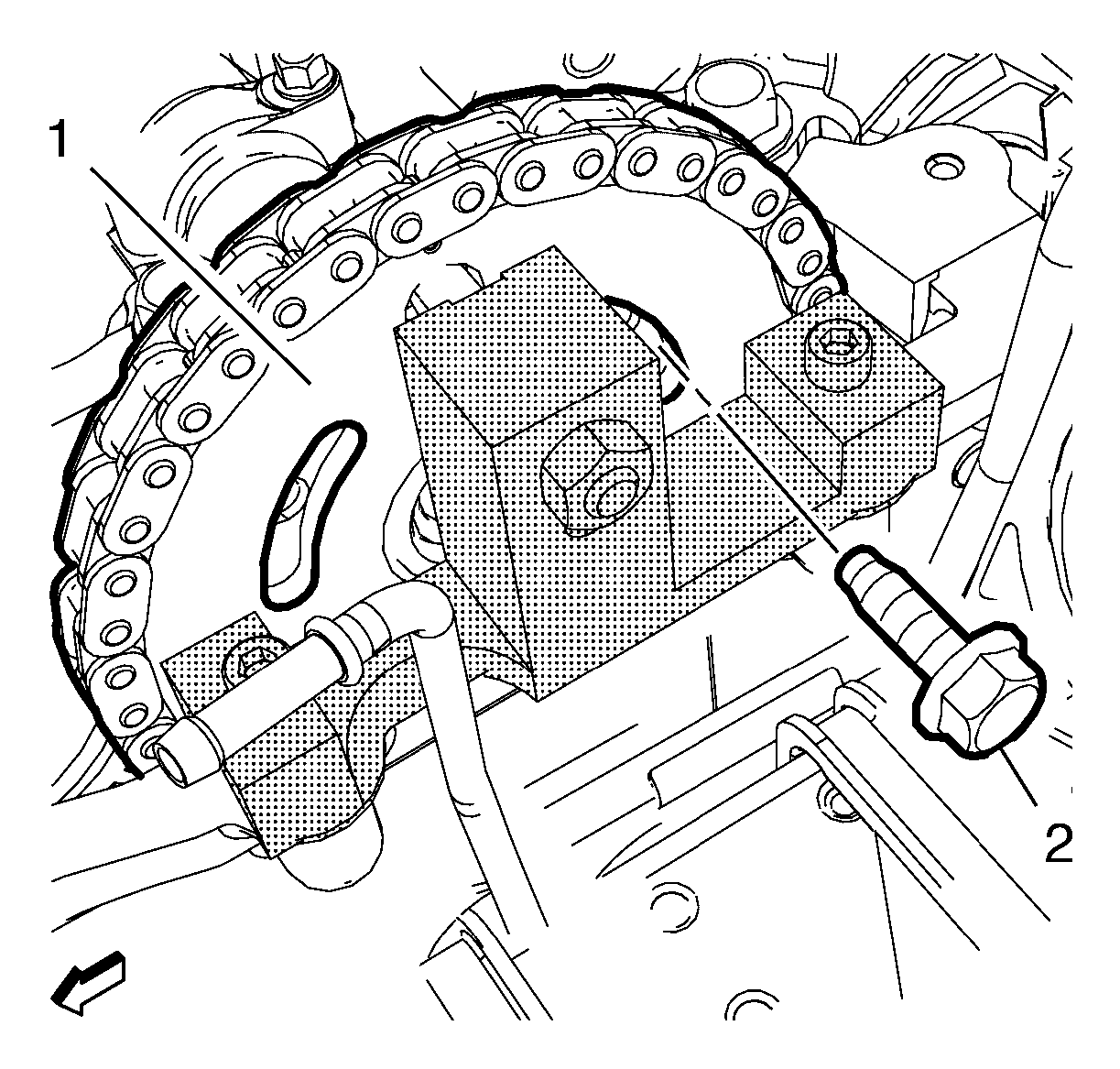

    15. Fig 10: Camshaft Sprocket And Bolts
    GM3252338Courtesy of GENERAL MOTORS COMPANY
  15. Check that the camshaft sprocket (1) on the camshaft is properly applied.
  16. Install the camshaft sprocket bolts (2), counterhold with a wrench at the camshaft hexagon, and tighten to 25 N.m (18 lb ft).

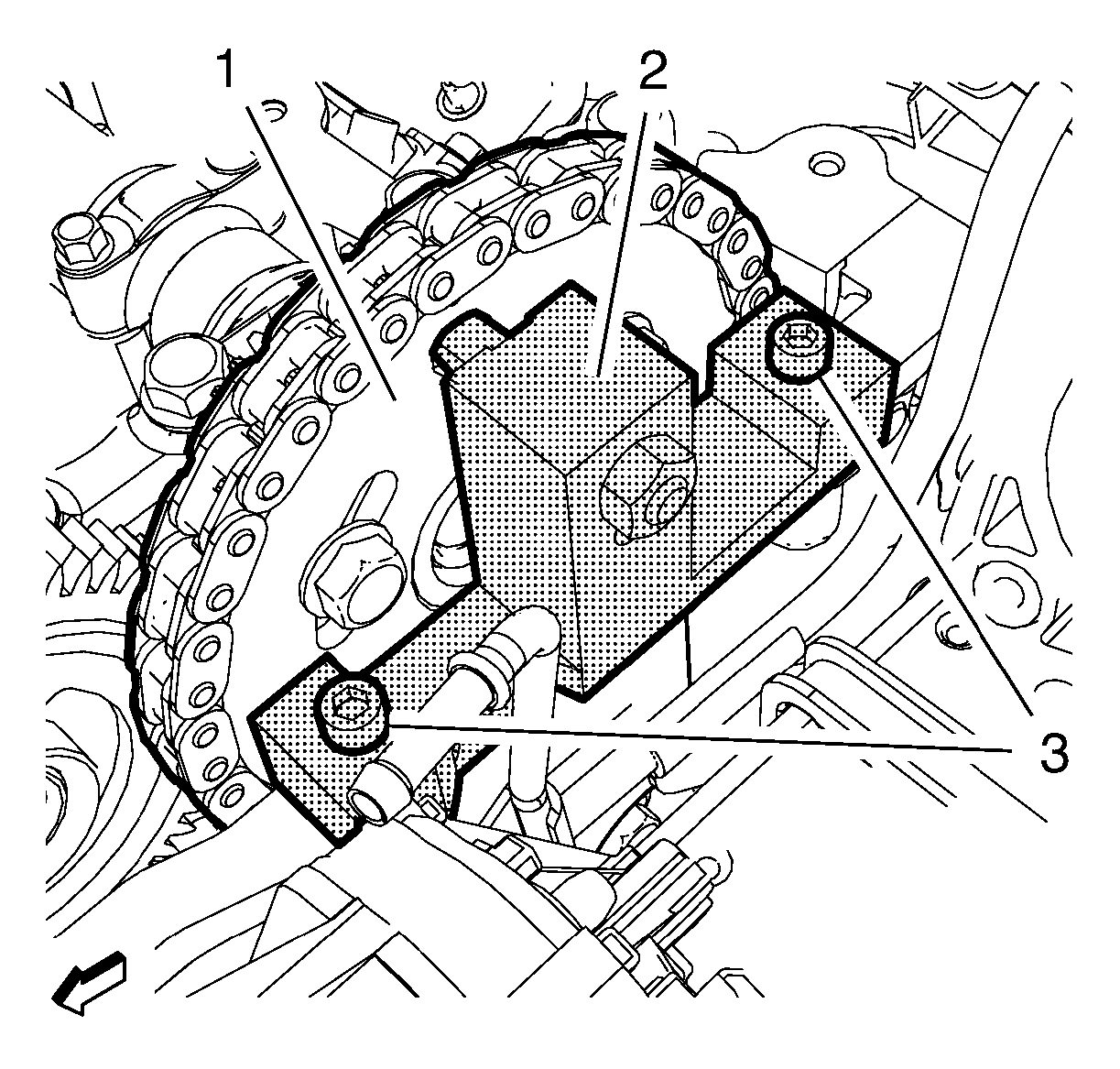

    17. Fig 11: Timing Chain Camshaft Sprocket Fixing Tool
    GM3252337Courtesy of GENERAL MOTORS COMPANY
  17. Remove the 2 bolts (3).
  18. Remove EN-51188  fixing tool (2).

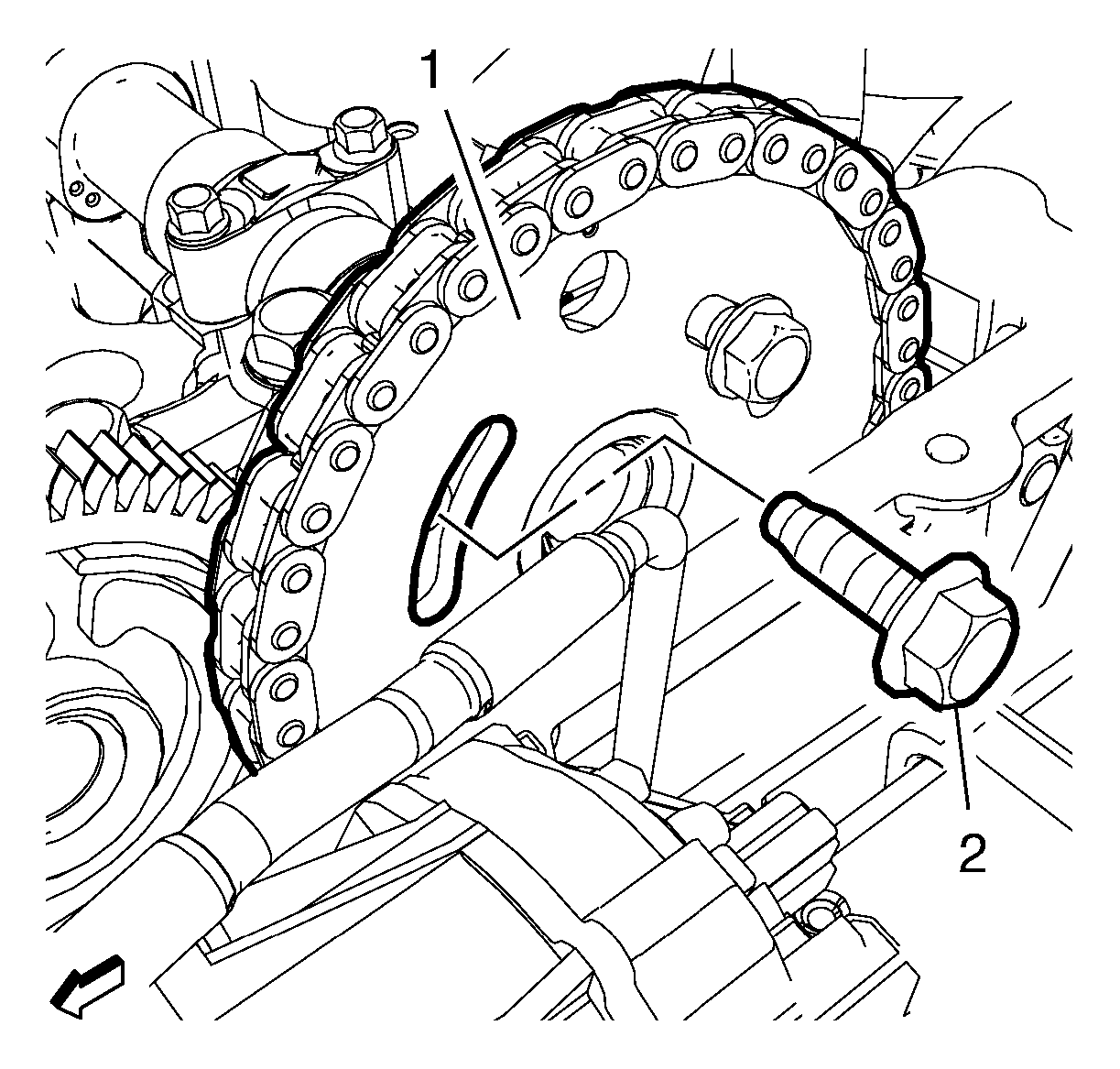

    19. Fig 12: Camshaft Sprocket And Bolt
    GM3252360Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Cover the timing case with a lint-free cloth.

  19. Install the camshaft sprocket bolt (2) to the camshaft sprocket (1), counterhold with a wrench at the camshaft hexagon, and tighten to 25 N.m (18 lb ft).
    20. Fig 13: Camshaft Fixing Tool
    GM3252356Courtesy of GENERAL MOTORS COMPANY
  20. Remove the EN-51143  fixing tool (1).
  21. Raise the vehicle.
    22. Fig 14: Crankshaft Fixing Tool
    GM3252326Courtesy of GENERAL MOTORS COMPANY
  22. Remove the 2 bolts (3).
  23. Remove the EN-51140  fixing tool (2).
    24. Fig 15: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  24. Install the 4 crankshaft pulley bolts (1).

    Rotate the crankshaft 360 degrees in direction of arrow. Use a suitable flat bladed tool at the 4 crankshaft pulley bolts (1).

  25. Lower the vehicle.

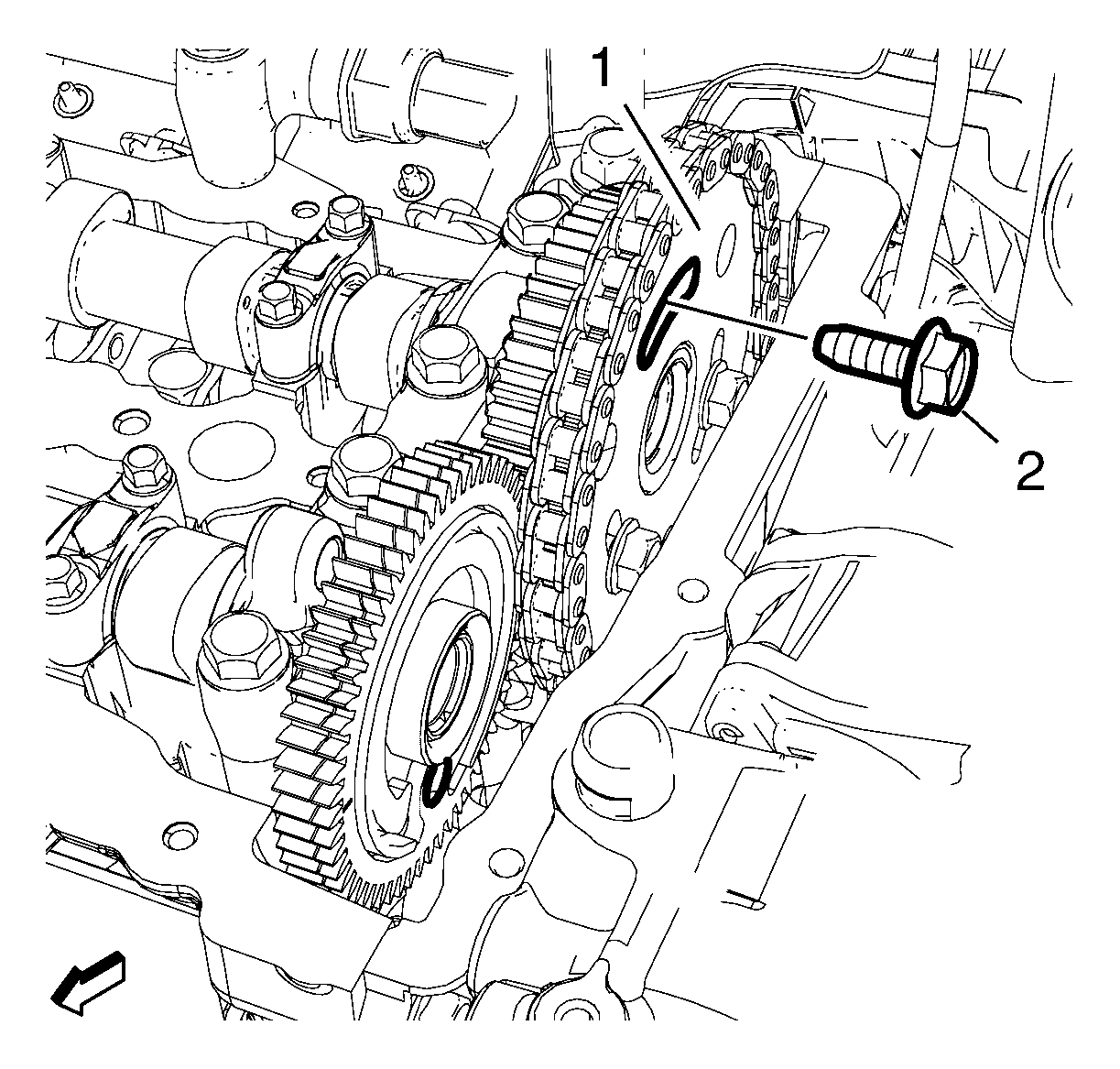

    26. Fig 16: Camshaft Sprocket And Bolt
    GM3252319Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Cover the timing case with a lint-free cloth.

  26. Install the camshaft sprocket bolt (2), counterhold with a wrench at the camshaft hexagon, and tighten to 25 N.m (18 lb ft).
  27. Raise the vehicle.
    28. Fig 17: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  28. Rotate the crankshaft 360 degrees in direction of arrow. Use a suitable flat bladed tool.
  29. Remove the 4 crankshaft pulley bolts (1).
    30. Fig 18: Crankshaft Fixing Tool
    GM3252326Courtesy of GENERAL MOTORS COMPANY
  30. Install the EN-51140  fixing tool (2).
  31. Install the fixing pin into the engine block bore (1) and tighten the 2 bolts (3).
  32. Lower the vehicle.
    33. Fig 19: Camshaft Fixing Tool
    GM3252356Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If the EN-51143  fixing tool does not fit, adjust timing.

  33. Install the EN-51143  fixing tool (1), by carefully turning the hexagon of the camshaft.
  34. Remove the EN-51143  fixing tool.
  35. Raise the vehicle.
    36. Fig 20: Crankshaft Fixing Tool
    GM3252326Courtesy of GENERAL MOTORS COMPANY
  36. Remove the 2 bolts (3).
  37. Remove the EN-51140  fixing tool (2).
  38. Install Crankshaft Pulley. Refer to Crankshaft Pulley Replacement
  39. Install Camshaft Housing. Refer to Camshaft Housing Replacement
  40. Install Throttle Body Assembly. Refer to Throttle Body Assembly Replacement
  41. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
