Assemble EN-51007 Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Engine Support Fixture Components
    GM3701638Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pre-assemble special tool assembly outside the vehicle.

  1. Install the lower foot (2) to the upper foot (1).
  2. Install the mounting bolt (5).
  3. Install the adjustment screw (4) and tighten the 2 nuts (3).

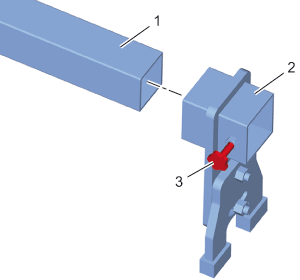

    4. Fig 2: Engine Support Fixture Components
    GM3701636Courtesy of GENERAL MOTORS COMPANY
  4. Install the 2 EN-51007-7  adapters (2) to the EN-51007-1  adapter (1).
  5. Tighten the adjustment screw (3).

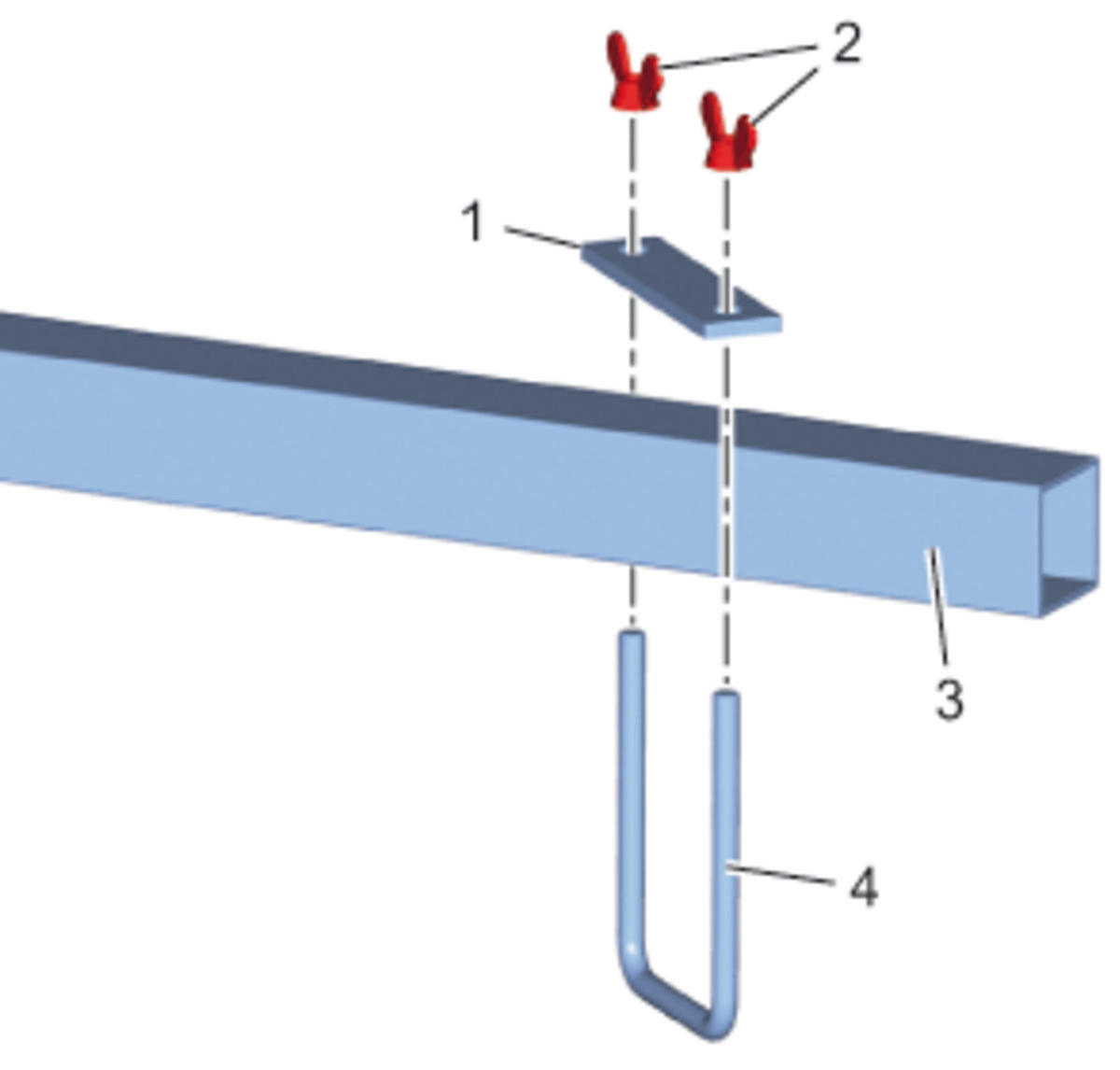

    6. Fig 3: Engine Support Fixture Components
    GM3701635Courtesy of GENERAL MOTORS COMPANY
  6. Install the 2 EN-51007-4  adapters to the EN-51007-1  adapter by guiding the bail (4) into the board (1).
  7. Install the 2 thumb nuts (2).

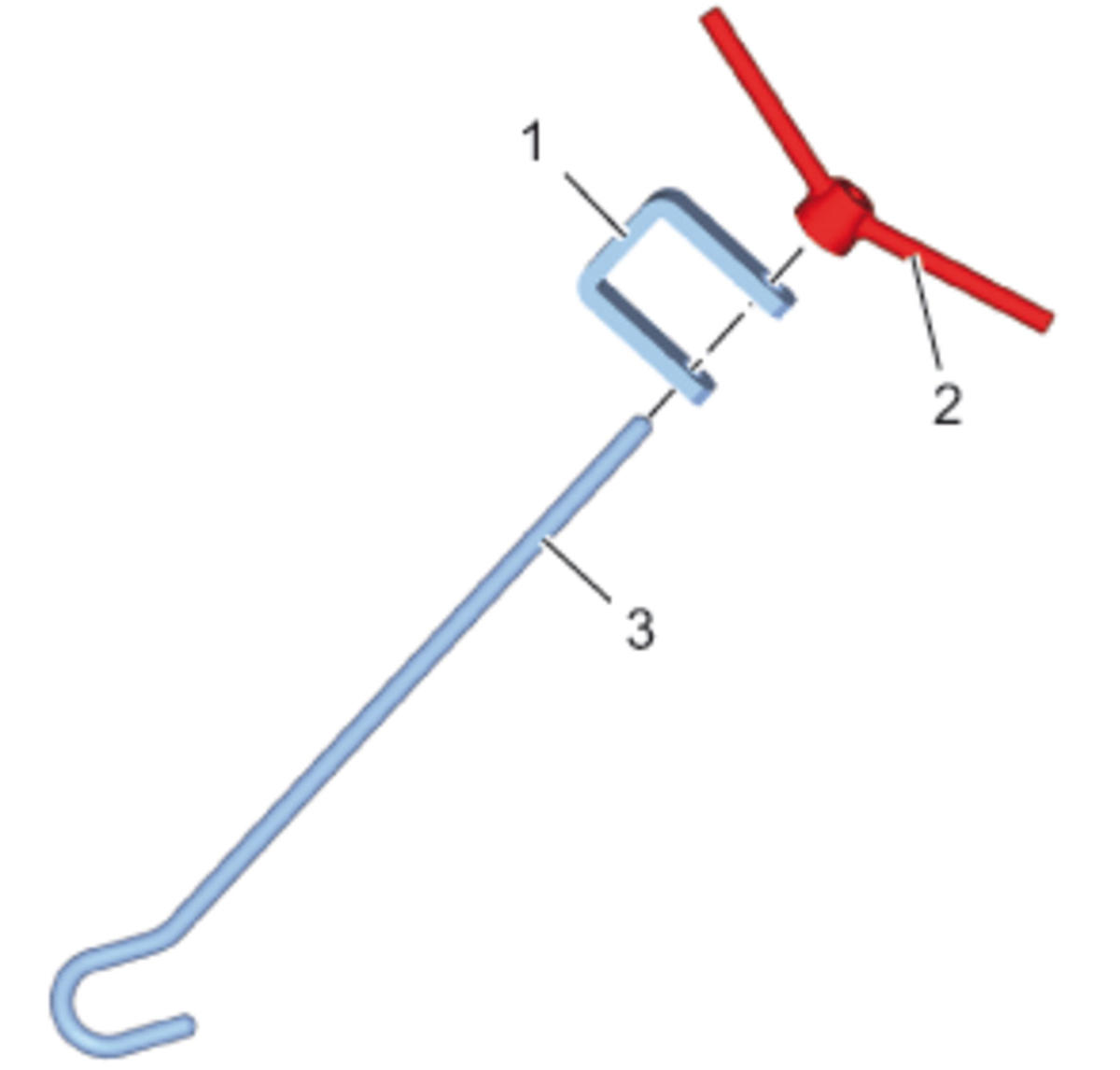

    8. Fig 4: Bushing, Lever And Hook
    GM3701640Courtesy of GENERAL MOTORS COMPANY
  8. Install the bushing (1) to the hook (3).
  9. Install the lever (2) to the hook (3).

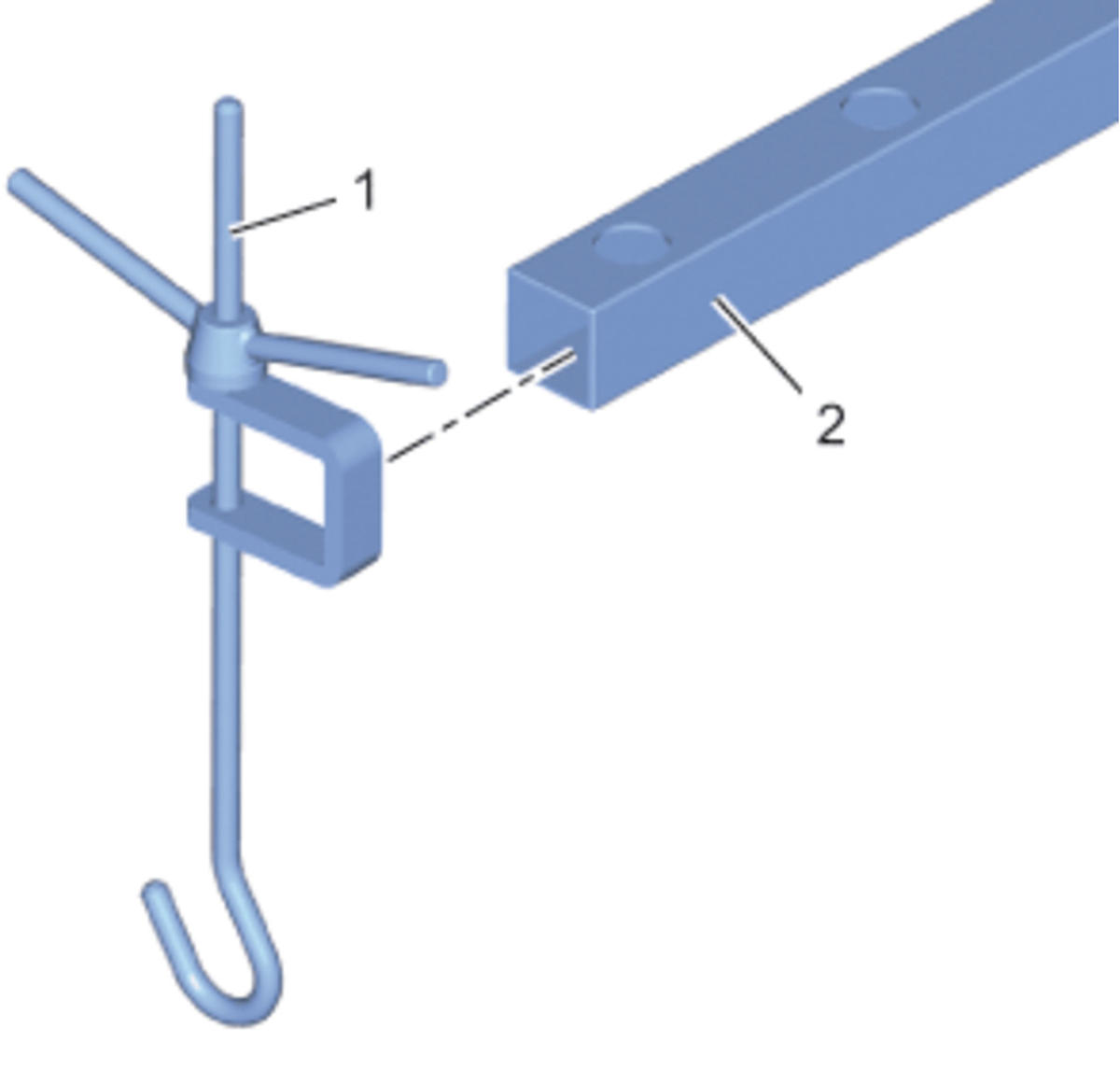

    10. Fig 5: Engine Support Fixture Adapters
    GM3701639Courtesy of GENERAL MOTORS COMPANY
  10. Install the EN-51007-6  adapters (1) to the EN-51007-3  adapters (2).

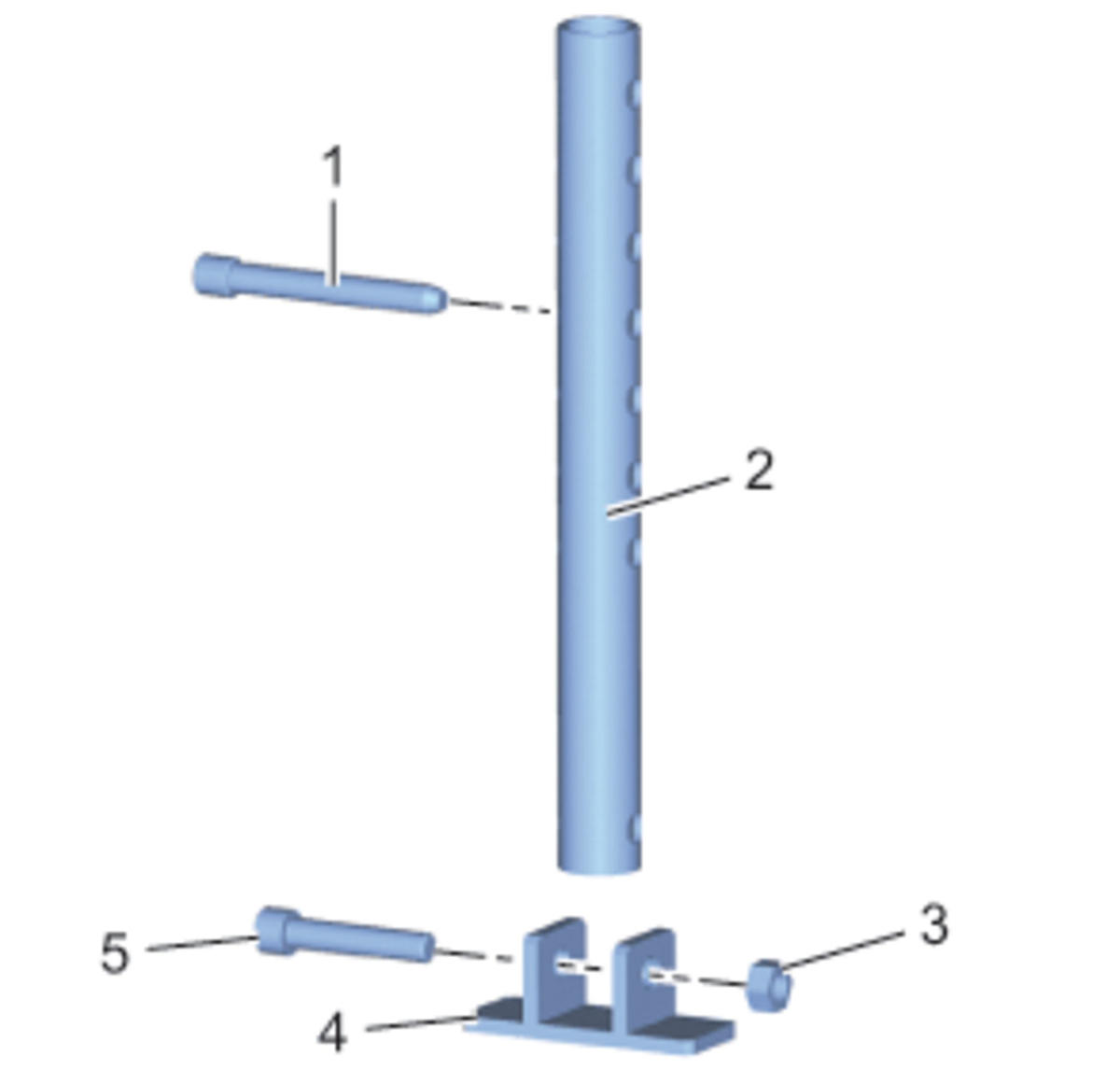

    11. Fig 6: Foot, Rod, Bolts And Nut
    GM3701646Courtesy of GENERAL MOTORS COMPANY
  11. Install the foot (4) to the rod (2)
  12. Install and tighten the bolt (5) and the nut (3).
  13. Install the bolt (1).

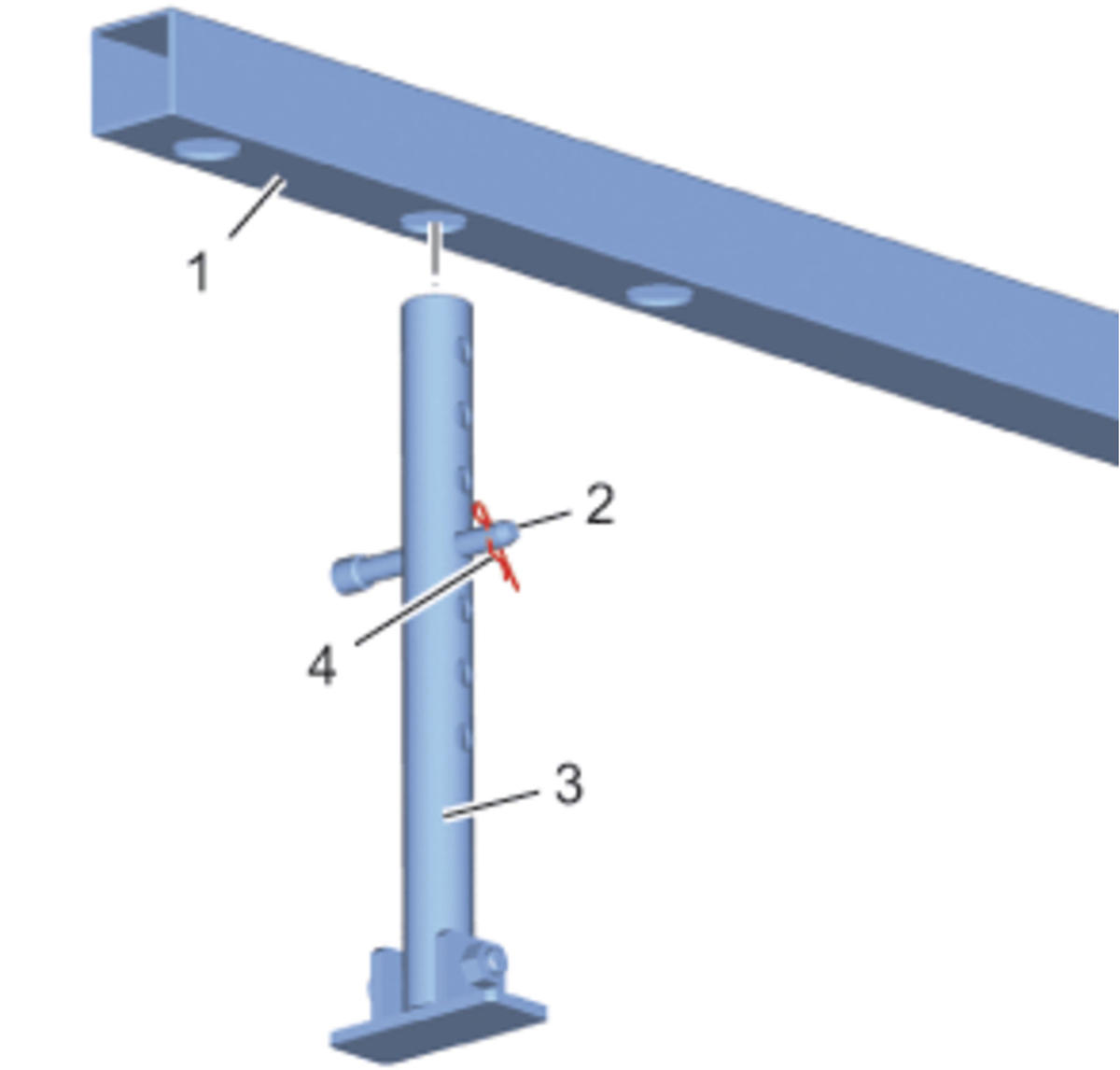

    14. Fig 7: Adapters, Bolt And Cotter Pin
    GM3701637Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The feet should stay in the second hole of the rakes.

  14. Install EN-51007-5  adapter (3) to the EN-51007-3  adapter (1).
  15. Install the cotter pin (4) into the bolt (2).
    16. Fig 8: Distance Between Feet And Adjustment Screws
    GM3701641Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The distance (a) must be aligned to 1400 mm (55 in).

  16. Check the distance between the 2 feet (3).
  17. Tighten the 2 adjustment screws (1, 2).
