Installation Procedure

WARNING: This page is about a different variant/trim than selected.

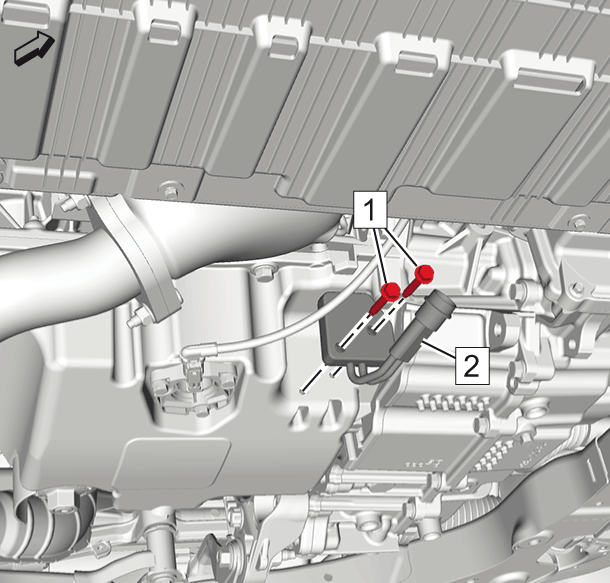

    Fig 1: Engine Oil Heater And Bolts
    GM4375984Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine oil heater (2).
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the 2 engine oil heater bolts (1) and tighten to 9 N.m (80 lb in).
    3. Fig 2: Engine Oil Heater And Electrical Connector
    GM4375985Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connector (1) to the engine oil heater (2).
  4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
