Installation Procedure

WARNING: This page is about a different variant/trim than selected.

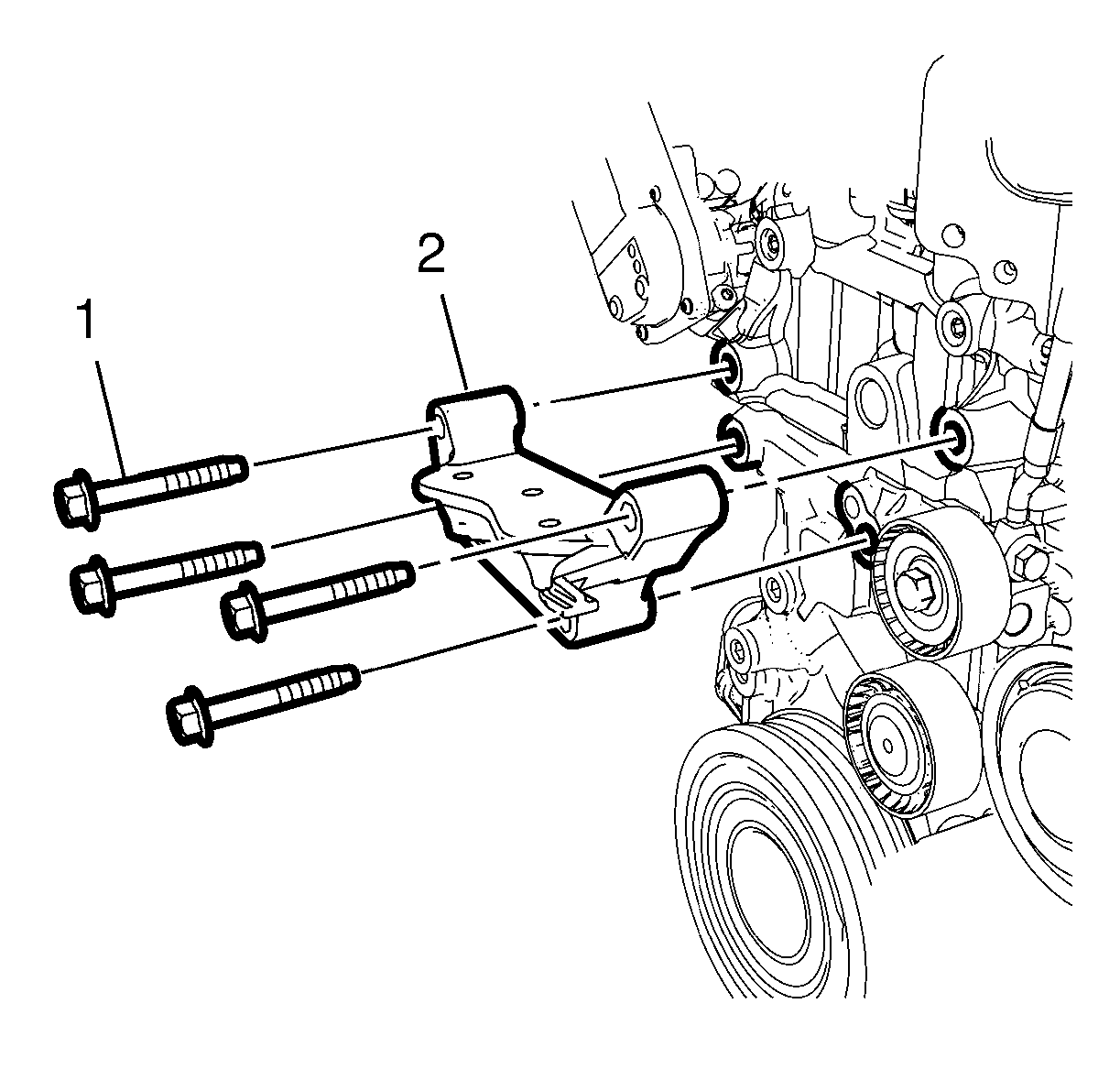

Fig 1: Engine Mount Bracket And Bolts
GM2900081Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Mount Bracket (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install NEW Engine Mount Bracket Bolts (1) (Qty: 4) and Hand tighten
    3. CAUTION:

    Refer to Torque-to-Yield Fastener Caution

  3. Tighten Engine Mount Bracket Bolts (1) (Qty: 4) in sequence:
    1. First Pass: 58 N.m (43 lb ft)
    2. Final Pass: 60 - 75 degrees - Use the special tool: EN-45059  Angle Meter
  4. Install the engine mount. Refer to Engine Mount Replacement
