Installation Procedure

WARNING: This page is about a different variant/trim than selected.

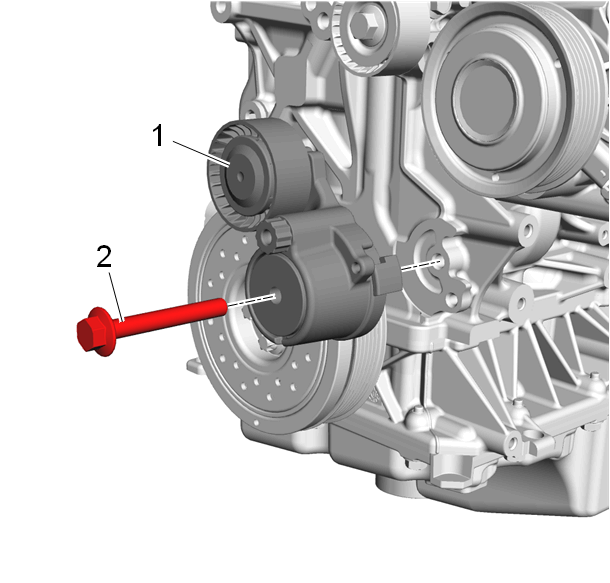

    Fig 1: Drive Belt Tensioner And Bolt
    GM2900083Courtesy of GENERAL MOTORS COMPANY
  1. Install the drive belt tensioner (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the drive belt tensioner bolt (2) and tighten to 55 N.m (41 lb ft).
  3. Install the drive belt. Refer to Generator and Air Conditioning Compressor Belt Replacement
